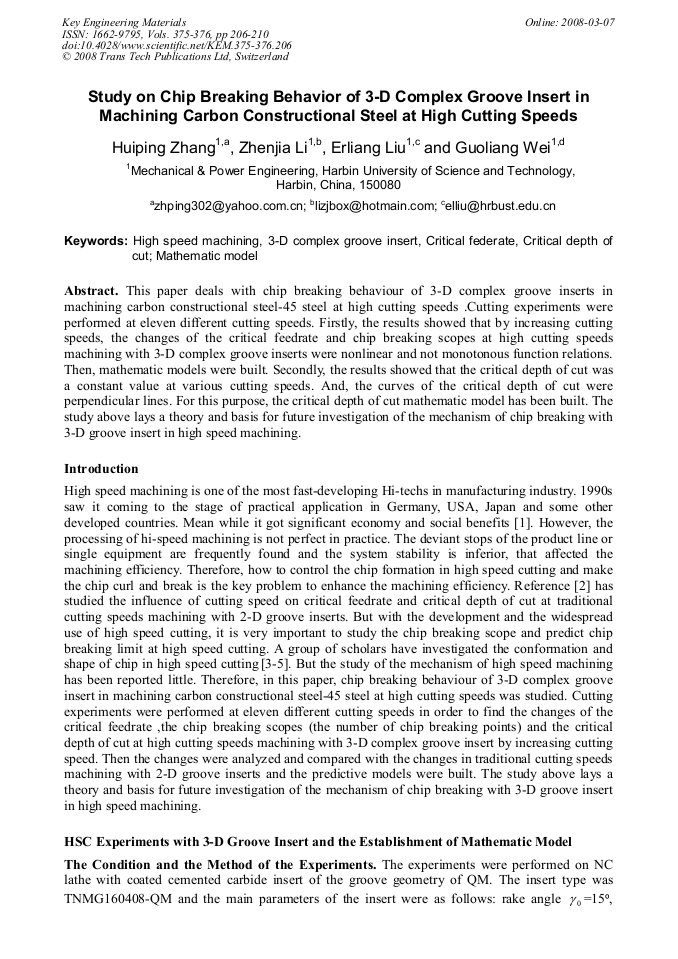

Study on Chip Breaking Behavior of 3-D Complex Groove Insert in Machining Carbon Constructional Steel at High Cutting Speeds

Abstract:

This paper deals with chip breaking behaviour of 3-D complex groove inserts in machining carbon constructional steel-45 steel at high cutting speeds .Cutting experiments were performed at eleven different cutting speeds. Firstly, the results showed that by increasing cutting speeds, the changes of the critical feedrate and chip breaking scopes at high cutting speeds machining with 3-D complex groove inserts were nonlinear and not monotonous function relations. Then, mathematic models were built. Secondly, the results showed that the critical depth of cut was a constant value at various cutting speeds. And, the curves of the critical depth of cut were perpendicular lines. For this purpose, the critical depth of cut mathematic model has been built. The study above lays a theory and basis for future investigation of the mechanism of chip breaking with 3-D groove insert in high speed machining.

• Periodical: Key Engineering Materials (Volumes 375-376)
• Pages: 206-210
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.375-376.206
• Online since: March 2008
• Authors: Hui Ping Zhang, Zhen Jia Li, Er Liang Liu, Guo Liang Wei
• Keywords: 3-D Complex Groove Insert, Critical Depth of Cut, Critical Federate, High Speed Machining (HSM), Mathematical Models

References

[1] A. Xing and et al: High Speed Machining Technology (National Defense Industry Press, Beijing, China 2003).

[2] Z. Li: Machining Chip breaking Process Analysis (Mechanical Industry Press, Beijing, China 1996).

[3] H.K. Toenshoff, H. Winkeler and et al: ASME, (1984), pp.95-100.

[4] A. Gente and H.W. Hoffmesiter: CIRP, Vol. 50 (2001), pp.49-52.

[5] A. Vyas and M.C. Shaw: Journal of Manufacturing Science and Engineering, Vol. 121 (1999) No. 5, pp.165-172.
