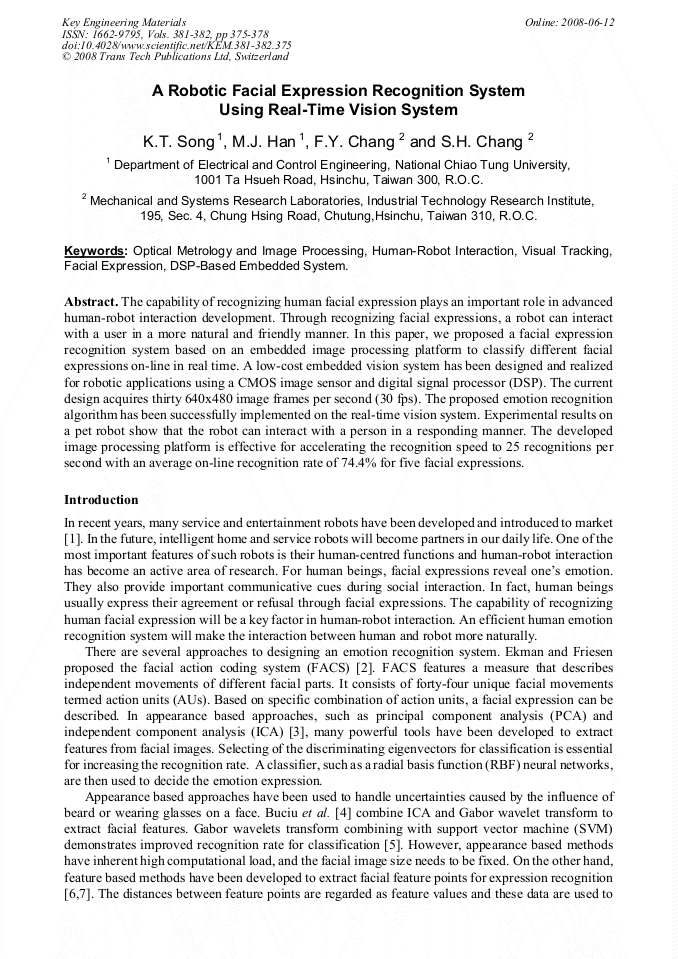

A Robotic Facial Expression Recognition System Using Real-Time Vision System

Abstract:

The capability of recognizing human facial expression plays an important role in advanced human-robot interaction development. Through recognizing facial expressions, a robot can interact with a user in a more natural and friendly manner. In this paper, we proposed a facial expression recognition system based on an embedded image processing platform to classify different facial expressions on-line in real time. A low-cost embedded vision system has been designed and realized for robotic applications using a CMOS image sensor and digital signal processor (DSP). The current design acquires thirty 640x480 image frames per second (30 fps). The proposed emotion recognition algorithm has been successfully implemented on the real-time vision system. Experimental results on a pet robot show that the robot can interact with a person in a responding manner. The developed image processing platform is effective for accelerating the recognition speed to 25 recognitions per second with an average on-line recognition rate of 74.4% for five facial expressions.

• Periodical: Key Engineering Materials (Volumes 381-382)
• Pages: 375-378
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.381-382.375
• Online since: June 2008
• Authors: K.T. Song, M.J. Han, F.Y. Chang, S.H. Chang
• Keywords: DSP-Based Embedded System, Facial Expression, Human-Robot Interaction, Optical Metrology and Image Processing, Visual Tracking

References

[1] M. Fujita: Proc. of the IEEE, Vol. 92 (2004), No. 11, pp.1804-1813.

[2] P. Ekman and W. V. Friesen: The Facial Action Coding System (Consulting Psychologists Press, San Francisco 1978).

[3] T. Wilhelm, H.J. Bohme, H.M. Grofi and A. Backhaus: Proc. of IEEE International Conference on Systems, Man and Cybernetics, The Hague, The Netherlands, Vol. 3 (2004), pp.2203-2208.

[4] I. Buciu, C. Kotropoulos and I. Pitas: Proc. of 2003 International Conference on Image Processing, Barcelona, Spain, Vol. 3 (2003), pp.855-858.

[5] J. Ye, Y. Zhan and S. Song: Proc. of IEEE International Conference on System, Man and Cybernetics, The Hague, The Netherlands, Vol. 3 (2004), pp.2215-2219.

[6] I.O. Stathopoulou and G.A. Tsihrintzis: Proc. of IEEE International Conference on System, Man and Cybernetics, The Hague, The Netherlands, Vol. 1 (2004), pp.666-671.

[7] P.K. Manglik, U. Misra, Prashant and H.B. Maringanti: Proc. of IEEE International Conference on System, Man and Cybernetics, The Hague, The Netherlands, Vol. 3 (2004), pp.2220-2224.

DOI: 10.1109/icsmc.2004.1400658

[8] IC-MEDIA Corp.: ICM205B Datasheet, Oct (2002).

[9] Henrry Andrian and Kai-Tai Song: Proc. of IEEE/RSJ International Conference on Intelligent Robots and Systems, Edmonton, Alberta, Canada, 2005, pp.3694-3699.

DOI: 10.1109/iros.2005.1545544

[10] http: /www. pololu. com/products/pololu/0727.

[11] C.M. Chou: Real-Time Face Tracking Under Illumination Variation, M. Eng. Thesis, National Chiao Tung University, Hsinchu, Taiwan, R.O.C., (2005).

[12] J.H. Lai, P. C Yuen, W.S. Chen, S. Lao and M. Kawade: Proc. of IEEE ICCV Workshop on Recognition, Analysis and Tracking of Faces and Gestures in Real-time Systems, Canada, 2001, pp.168-174. Happiness Anger Neutral Surprise Sadness.

DOI: 10.1109/ratfg.2001.938927
