Influence of Grain Size on Notch Sensitivities in Fatigue of Carbon Steel

T. Kanemaru; Norio Kawagoishi; Eiji Kondo; Qing Yuan Wang; Y. Ohzono

doi:10.4028/www.scientific.net/KEM.385-387.197

Paper Titles

Theoretical Approach to Calculate Surface Chloride Content C_s of Submerged Concrete under Sea Water Laden Environment
p.181

High Cycle Fatigue Properties and Failure Mode in Ni-Cr-Mo Steel Tempered at Low Temperature
p.185

Inference Engine and Explanation Mechanism in the Expert System of Fracture Mechanics Analysis for Component Design
p.189

Influence of Anisotropic Properties Upon Stress Intensity Factors under Biaxial Stress
p.193

Influence of Grain Size on Notch Sensitivities in Fatigue of Carbon Steel
p.197

Investigation into Damage of Aluminum Multi-Wall Shield under Hypervelocity Projectiles Impact
p.201

Failure of Polyurethane Foams under Different Loading Conditions
p.205

Low-Cycle Fatigue Life Prediction by a New Critical-Plane Method
p.209

Mechanical Behaviors of Torsion Actuator of Shape Memory Alloy
p.213

HomeKey Engineering MaterialsKey Engineering Materials Vols. 385-387Influence of Grain Size on Notch Sensitivities in...

Influence of Grain Size on Notch Sensitivities in Fatigue of Carbon Steel

Abstract:

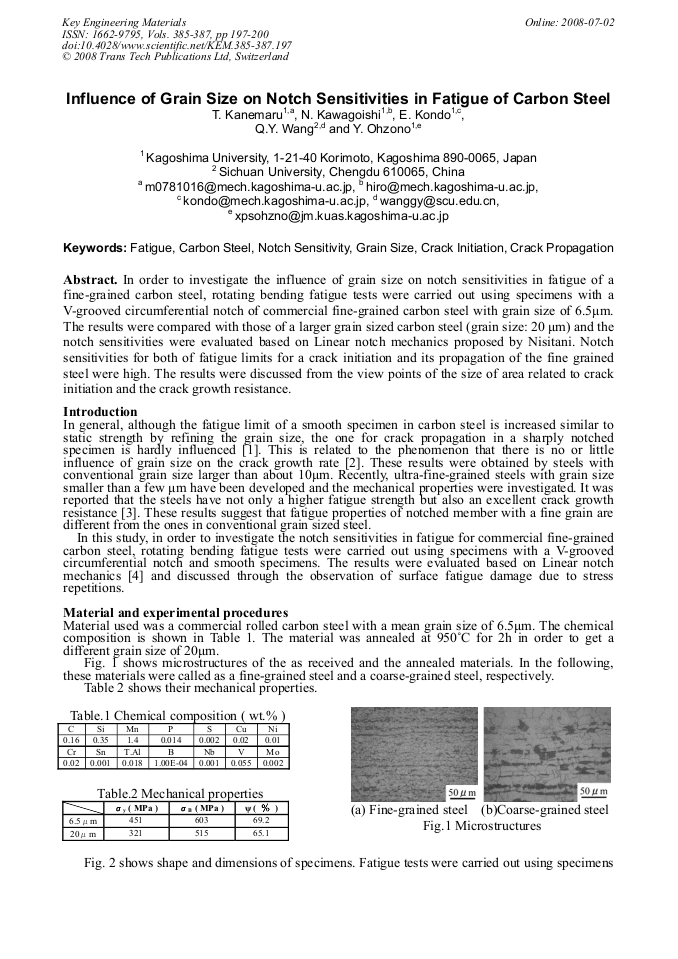

In order to investigate the influence of grain size on notch sensitivities in fatigue of a fine-grained carbon steel, rotating bending fatigue tests were carried out using specimens with a V-grooved circumferential notch of commercial fine-grained carbon steel with grain size of 6.5µm. The results were compared with those of a larger grain sized carbon steel (grain size: 20 µm) and the notch sensitivities were evaluated based on Linear notch mechanics proposed by Nisitani. Notch sensitivities for both of fatigue limits for a crack initiation and its propagation of the fine grained steel were high. The results were discussed from the view points of the size of area related to crack initiation and the crack growth resistance.

You might also be interested in these eBooks

Advances in Fracture and Damage Mechanics VII

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 385-387)

Pages:

197-200

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.385-387.197

Citation:

Cite this paper

Online since:

July 2008

Authors:

T. Kanemaru, Norio Kawagoishi, Eiji Kondo, Qing Yuan Wang, Y. Ohzono

Keywords:

Crack Initiation, Crack Propagation, Fatigue, Grain Size, Humidity, Maraging Steel, Reversion Austenite

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] H. Nakazawa, H. Kobayashi, A. Morita, S. Iikura, K. Miyauchi and Y. Ishii, Trans. of the J. Soc. of Mech. Eng., Japan, 40-329 (1974), pp.9-22 (in Japanese).

Google Scholar

[2] M. Kage and H. Nisitani, Trans. of the J. Soc. of Mech. Eng., Japan, 51-461 (1985), pp.3-9 (in Japanese).

Google Scholar

[3] H. Kimura, Y. Akiniwa, K. Tanaka, J. Kondo and T. Ishikawa, J. Soc. Mater. Sci., Japan, 51-7 (2002), pp.795-800 (in Japanese).

Google Scholar

[4] H. Nisitani, Trans. of the J. Soc. of Mech. Eng., Japan, 49-447 (1983), pp.1353-1359 (in Japanese).

Google Scholar

[5] T. Yokobori, Kikai no Kenkyu, 12-12(1960), pp.1623-1628 (in Japanese).

Google Scholar

[6] H. Nisitani, Mechanics of Fatigue, ASME AMD (edited by T. Mura), 47(1981), pp.151-166.

Google Scholar
