Weibull Stress Analysis for an Embedded Crack in Reactor Pressure Vessels under Pressurized Thermal Shock

Abstract:

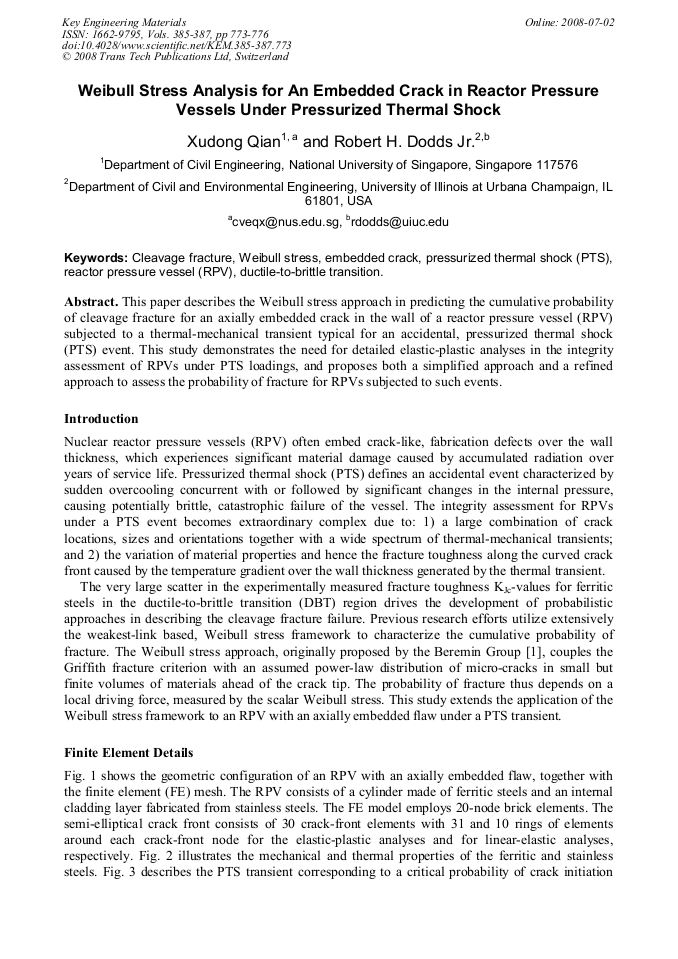

This paper describes the Weibull stress approach in predicting the cumulative probability of cleavage fracture for an axially embedded crack in the wall of a reactor pressure vessel (RPV) subjected to a thermal-mechanical transient typical for an accidental, pressurized thermal shock (PTS) event. This study demonstrates the need for detailed elastic-plastic analyses in the integrity assessment of RPVs under PTS loadings, and proposes both a simplified approach and a refined approach to assess the probability of fracture for RPVs subjected to such events.

• Periodical: Key Engineering Materials (Volumes 385-387)
• Pages: 773-776
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.385-387.773
• Online since: July 2008
• Authors: Xu Dong Qian, Robert H. Dodds Jr.
• Keywords: Cleavage Fracture, Ductile-to-Brittle Transition, Embedded Crack, Pressurized Thermal Shock (PTS), Reactor Pressure Vessel (RPV), Weibull Stress
