Effect of Surface Treatments on Bonding Strength of Zirconia to Dental Cements

Makiko Hashiguchi; Hideo Sato; Y. Nishi; Seiji Ban; Kristoffer Krnel; Andraž Kocjan; Tomaž Kosmač

doi:10.4028/www.scientific.net/KEM.396-398.575

Paper Titles

Comparison of Calcium CPP, HAp and TeCP Phosphates, Obtained by Direct Reaction
p.557

Lead and Cadmium Immobilization by Polymeric Sponges Coated with Hydroxyapatite
p.561

The Relationship of the Oxide Phases on Irradiated Titanium Surface by Nd:YVO₄ Laser with the Ca,P Deposited Layer
p.565

Visualization of Invasion into the Body and Internal Diffusion of Nanoparticles
p.569

Effect of Surface Treatments on Bonding Strength of Zirconia to Dental Cements
p.575

Formation of Hydroxyapatite Nanosized and other Apatites by Electrolysis Process
p.579

In Vivo Performance of an Injectable Biphasic Calcium Phosphate Bone Filler
p.583

Influence of Processing on Mechanical Properties of Hydroxyapatite
p.587

Obtainment of α-Tricalcium Phosphate by Solution Combustion Synthesis Method Using Urea as Combustible
p.591

HomeKey Engineering MaterialsKey Engineering Materials Vols. 396-398Effect of Surface Treatments on Bonding Strength...

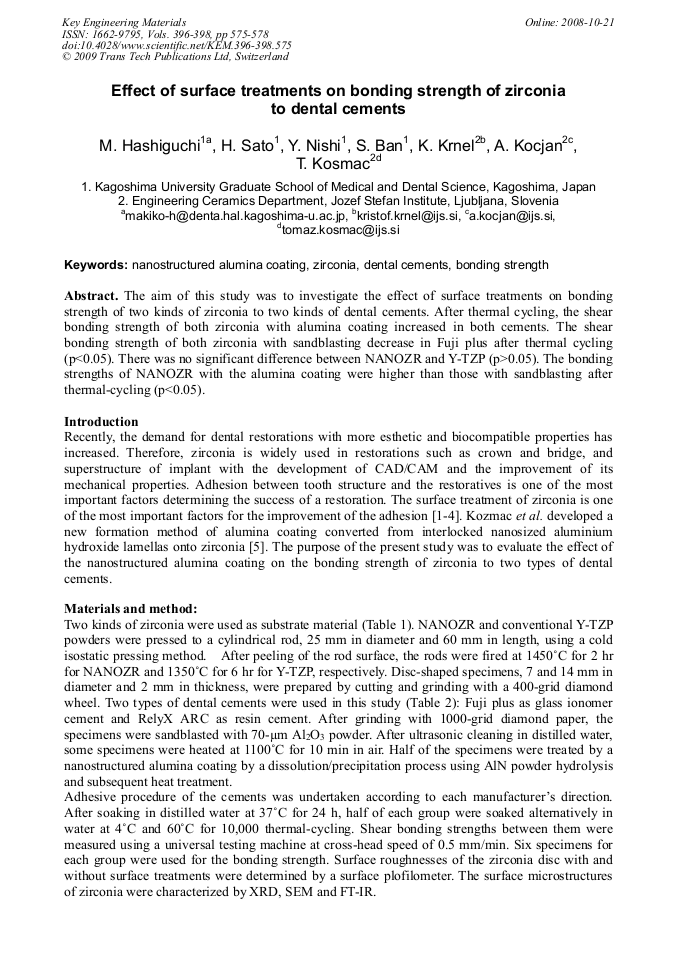

Effect of Surface Treatments on Bonding Strength of Zirconia to Dental Cements

Abstract:

The aim of this study was to investigate the effect of surface treatments on bonding strength of two kinds of zirconia to two kinds of dental cements. After thermal cycling, the shear bonding strength of both zirconia with alumina coating increased in both cements. The shear bonding strength of both zirconia with sandblasting decrease in Fuji plus after thermal cycling (p<0.05). There was no significant difference between NANOZR and Y-TZP (p>0.05). The bonding strengths of NANOZR with the alumina coating were higher than those with sandblasting after thermal-cycling (p<0.05).
