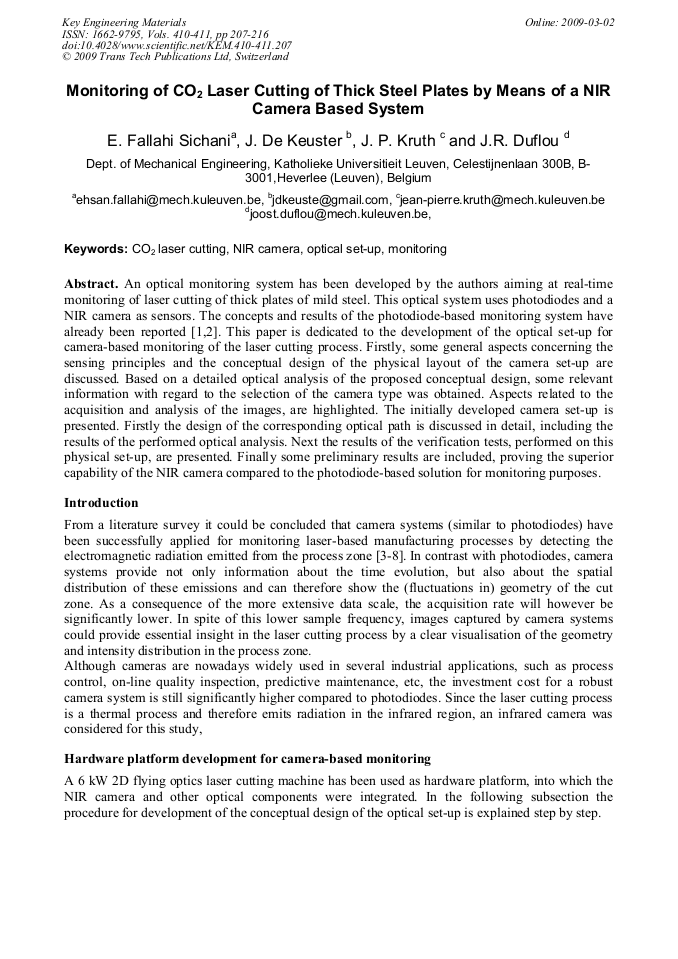

Monitoring of CO₂ Laser Cutting of Thick Steel Plates by Means of a NIR Camera Based System

Abstract:

An optical monitoring system has been developed by the authors aiming at real-time monitoring of laser cutting of thick plates of mild steel. This optical system uses photodiodes and a NIR camera as sensors. The concepts and results of the photodiode-based monitoring system have already been reported [1,2]. This paper is dedicated to the development of the optical set-up for camera-based monitoring of the laser cutting process. Firstly, some general aspects concerning the sensing principles and the conceptual design of the physical layout of the camera set-up are discussed. Based on a detailed optical analysis of the proposed conceptual design, some relevant information with regard to the selection of the camera type was obtained. Aspects related to the acquisition and analysis of the images, are highlighted. The initially developed camera set-up is presented. Firstly the design of the corresponding optical path is discussed in detail, including the results of the performed optical analysis. Next the results of the verification tests, performed on this physical set-up, are presented. Finally some preliminary results are included, proving the superior capability of the NIR camera compared to the photodiode-based solution for monitoring purposes.

• Periodical: Key Engineering Materials (Volumes 410-411)
• Pages: 207-216
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.410-411.207
• Online since: March 2009
• Authors: Ehsan Fallahi Sichani, Johan De Keuster, Jean Pierre Kruth, Joost R. Duflou
• Keywords: CO₂ Laser Cutting, Monitoring, NIR Camera, Optical Set-Up

References

[1] De Keuster J., Duflou J. and Kruth J. -P. Methods for monitoring of laser cutting by means of acoustic and photodiode sensors. Journal of Advanced Materials Research vol: 6 issue: 8 809-816, (2005).

[2] De Keuster J., Duflou J. and Kruth J. -P. Acoustic and optical monitoring of high-power CO2 laser cutting. Proceedings of the 12th International Conference on Sheet Metal, 161-168, (2007).

[3] Jorgensen H. Investigations of On-line Process Monitoring and Control in CO2 Laser Cutting. PhD thesis, Technical University of Denmark, Lyngby, Denmark, (1990).

[4] Huang M.Y. and Chatwin C.R. A knowledge-based adaptive control environment for an industrial laser cutting system. Optics and Lasers in Engineering, 21: 273-295, (1994).

DOI: 10.1016/0143-8166(94)90048-5

[5] Lim S.Y. and Chatwin C.R. Intelligent digital control of a laser cutting process. Lasers in Engineering, 3: 99-112, (1994).

[6] Konig W. Poprawe R. Modeling, monitoring and control in high quality laser cutting. Annals of the CIRP, 50: 137-140, (2001).

DOI: 10.1016/s0007-8506(07)62089-7

[7] Abels P., Kaierle S., andKratschz C., andPoprawe R. and Schulz W. Universal coaxial process control system for laser materials processing. In Proceedings of the ICALEO 1999, volume 87, E99108, (1999).

DOI: 10.2351/1.5059259

[8] Haferkamp H., von Alvensleben F., von Busse A., Goede M., and Thurk O. Thermographic system for process monitoring of laser beam cutting. In Proceedings of the 8th International Conference on Sheet Metal, 261-270, (2000).

DOI: 10.1109/cleoe.1998.719628
