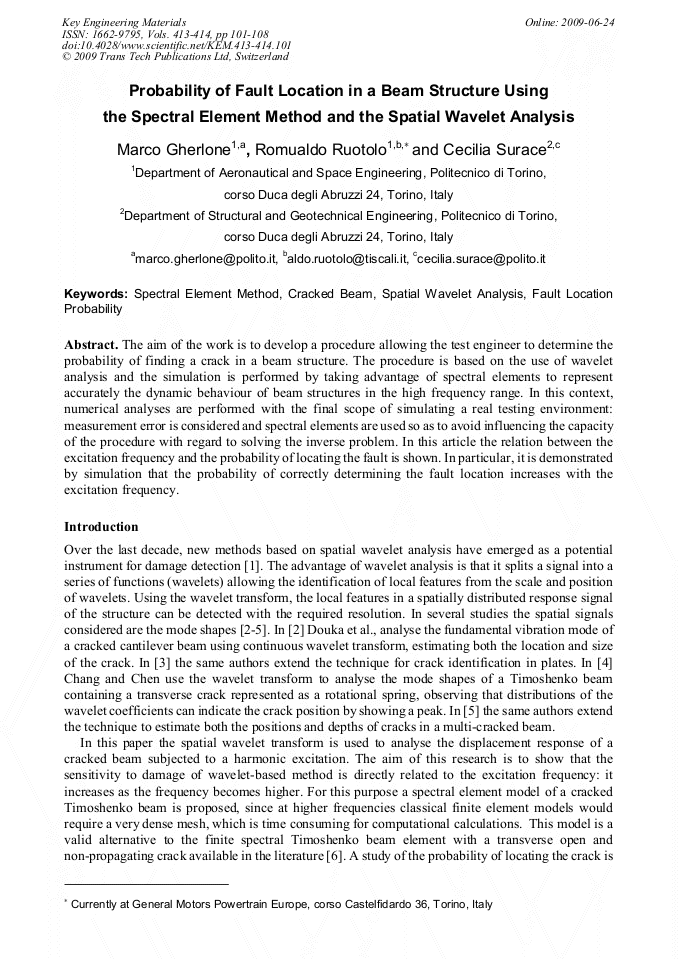

Probability of Fault Location in a Beam Structure Using the Spectral Element Method and the Spatial Wavelet Analysis

Abstract:

The aim of the work is to develop a procedure allowing the test engineer to determine the probability of finding a crack in a beam structure. The procedure is based on the use of wavelet analysis and the simulation is performed by taking advantage of spectral elements to represent accurately the dynamic behaviour of beam structures in the high frequency range. In this context, numerical analyses are performed with the final scope of simulating a real testing environment: measurement error is considered and spectral elements are used so as to avoid influencing the capacity of the procedure with regard to solving the inverse problem. In this article the relation between the excitation frequency and the probability of locating the fault is shown. In particular, it is demonstrated by simulation that the probability of correctly determining the fault location increases with the excitation frequency.

• Periodical: Key Engineering Materials (Volumes 413-414)
• Pages: 101-108
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.413-414.101
• Online since: June 2009
• Authors: Marco Gherlone, Romualdo Ruotolo, Cecilia Surace
• Keywords: Cracked Beam, Fault Location Probability, Spatial Wavelet Analysis, Spectral Element Method (SEM)

References

[1] H Q. Wang and X. Deng: International Journal of Solids and Structures Vol. 36 (1999), p.3443.

[2] E. Douka, S. Loutridis and A. Trochidis: International Journal of Solids and Structures Vol. 40 (2003), p.3557.

DOI: 10.1016/s0020-7683(03)00147-1

[3] E. Douka, S. Loutridis and A. Trochidis: Journal of Sound and Vibration, Vol. 270 (2004), p.279.

DOI: 10.1016/s0022-460x(03)00536-4

[4] C.C. Chang, L.W. Chen: Applied Acoustics Vol. 64 (2003), p.1217.

[5] C.C. Chang, L.W. Chen: Mechanical Systems and Signal Processing Vol. 19 (2005), p.139.

[6] M. Krawczuk, M. Palacz, and W. Ostachowicz: Journal of Sound and Vibration Vol. 264 (2003), p.1139.

[7] J.R. Rice, N. Levy: Journal of Applied Mechanics Vol. 39 (1972), p.185.

[8] P.F. Rizos, N. Aspragatos and A.D. Dimarogonas: Journal of Sound and Vibration Vol. 138 (1990), p.381.

[9] O. Song, T.W. Ha and L. Librescu: Engineering Fracture Mechanics Vol. 70 (2003), p.105.

[10] M. Geradin, D. Rixen: Mechanical Vibrations (John Wiley & Sons, 1997).

[11] J.F. Doyle: Wave Propagation in Structures-Spectral Analysis Using Fast Discrete Fourier Transform (2nd Edition, Springer, Germany 1997).

[12] R. Ruotolo: Journal of Sound and Vibration Vol. 270 (2004), p.149.
