Crack Size Estimation Using a Combination of Cross Correlation and Phase Shift Correction in Ultrasonic Time-of-Flight Diffraction Method

Abstract:

The ultrasonic time-of-flight-diffraction (TOFD) detection method has been widely used in crack size assessment. The key issue in TOFD is to determine the arrival time of crack tip diffracted signal. In the traditional cross correlation method, the resulting maximum peak of cross correlation function between two signals indicates the time of flight between them. In practical ultrasonic measurement, the transmission wave may be distorted and phase shift may be introduced. This paper presents a method using cross correlation and phase shift correction to improve the accuracy of crack sizing in the TOFD framework. The resulting maximum peak of the cross correlation function between two signals combining with time delay introduced by phase shift determine the arrival time of diffracted signal. Experimental results are used to demonstrate the advantage of the proposed method.

You might also be interested in these eBooks

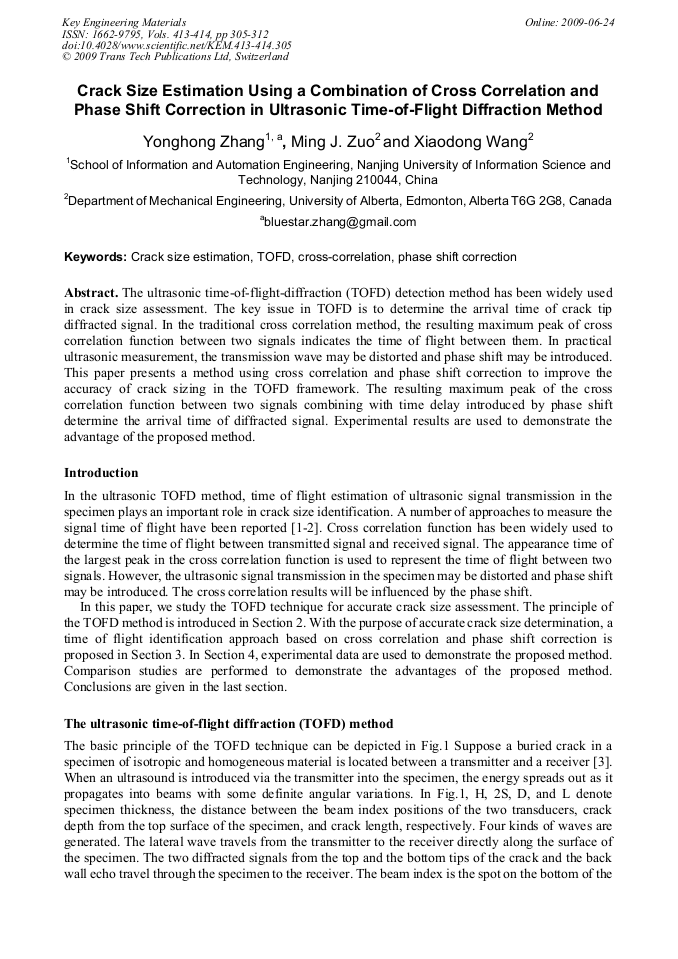

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 413-414)

Pages:

305-312

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.413-414.305

Citation:

Cite this paper

Online since:

June 2009

Authors:

Yong Hong Zhang, Ming J. Zuo, Xiao Dong Wang

Keywords:

Crack Size Estimation, Cross-Correlation, Phase Shift Correction, TOFD

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] D. R. Hull, H. E. Kautz, A. Vary. Materials Evaluation, Vol. 43(1985), p.1455.

Google Scholar

[2] Daniele Marioli, Claudio Narduzzi, Carlo Offelli, Dario Petri, Emilio Sardini, Andrea Taroni: IEEE Transactions on Instrumentation and Measurment, Vol. 41(1992), p.93.

DOI: 10.1109/19.126639

Google Scholar

[3] J. P. Charlesworth, J. A. G. Temple: Engineering application of ultrasonic time-of-flight-diffraction (Second edition, London: Research Studies Press Ltd, 2001).

Google Scholar

[4] Xianfeng Fan, Ming J Zuo, Xiaodong Wang. Smart Materials and Structures, Vol. 15(2006), p.1531.

Google Scholar

[5] Marple L. S: IEEE Transactions on Signal Processing, Vol. 47(1999), p.2604.

Google Scholar

[6] Wang L., Lavrentyev A. I., Rokhlin S. I: Journal of Acoustic Society of America, Vol. 113(2003), p.1551.

Google Scholar
