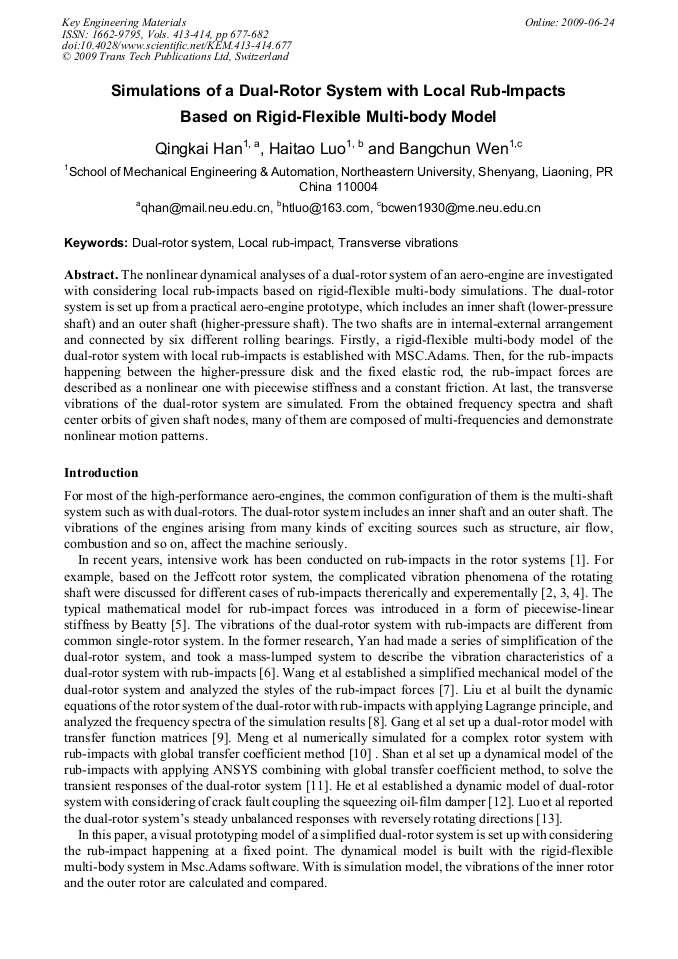

Simulations of a Dual-Rotor System with Local Rub-Impacts Based on Rigid-Flexible Multi-Body Model

Abstract:

The nonlinear dynamical analyses of a dual-rotor system of an aero-engine are investigated with considering local rub-impacts based on rigid-flexible multi-body simulations. The dual-rotor system is set up from a practical aero-engine prototype, which includes an inner shaft (lower-pressure shaft) and an outer shaft (higher-pressure shaft). The two shafts are in internal-external arrangement and connected by six different rolling bearings. Firstly, a rigid-flexible multi-body model of the dual-rotor system with local rub-impacts is established with MSC.Adams. Then, for the rub-impacts happening between the higher-pressure disk and the fixed elastic rod, the rub-impact forces are described as a nonlinear one with piecewise stiffness and a constant friction. At last, the transverse vibrations of the dual-rotor system are simulated. From the obtained frequency spectra and shaft center orbits of given shaft nodes, many of them are composed of multi-frequencies and demonstrate nonlinear motion patterns.

• Periodical: Key Engineering Materials (Volumes 413-414)
• Pages: 677-682
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.413-414.677
• Online since: June 2009
• Authors: Qing Kai Han, Hai Tao Luo, Bang Chun Wen
• Keywords: Dual-Rotor System, Local Rub-Impact, Transverse Vibration

References

[1] A. Muszynska: The Shock and Vibration Digest Vol. 21 (1989), p.3.

[2] P. Goldman and A. Muszynska: ASME Journal of Engineering for Gas Turbine and Power Vol. 116 (1994), p.692.

[3] G. V. Groll and D. J. Ewins: Journal of Sound and Vibration Vol. 241 (2001), p.223.

[4] F. Chu and W. Lu: Journal of Sound and Vibration Vol. 283 (2005), p.621.

[5] R. F. Beatty: Transactions of the ASME, Journal of Vibration, Acoustics, Stress, and Reliability in Design, Vol. 107 (1995), p.151.

[6] L. Yan and D. Wang: Journal of Aerospace Power, Vol. 13 (1998), p.173.

[7] D. Wang: Extraction and Theoretical Research on Vibration Characteristics of Rotor-to-Stator Rub-Impact for Engine(Beijing University of Aeronautics and Astronautics 1995).

[8] X. Liu, Q. Li and D. Wang: Journal of Aerospace Power, Vol. 15 (2000), p.187.

[9] X. Gang: Study on Vibration Analysis of Global Transfer Matrix Method for Multi-Rotor System(Dalian University of Technology 2002).

[10] Y. Meng and Q. Li: Journal of Aerospace Power, Vol. 18 (2003), p.146.

[11] Y. Shan, X. Liu, T. He and Q. Li, Journal of Aerospace Power, Vol. 20 (2005), p.789.

[12] W. He, L. Cheng and Y. Li: Mechanical Science and Technology, Vol. 25 (2006), p.732.

[13] X. Hu, G. Luo and D. Gao: Journal of Aerospace Power, Vol. 22 (2007), p.1044.
