Study of Breakage at Bottleneck Seal of Liquid Packaging Bags

Abstract:

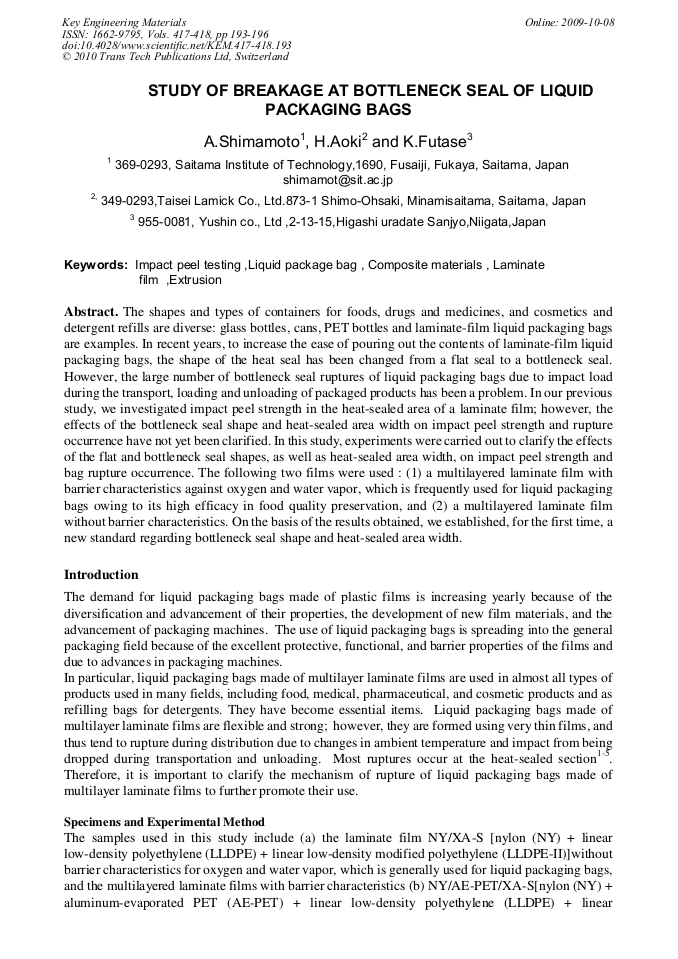

Article Preview

The shapes and types of containers for foods, drugs and medicines, and cosmetics and detergent refills are diverse: glass bottles, cans, PET bottles and laminate-film liquid packaging bags are examples. In recent years, to increase the ease of pouring out the contents of laminate-film liquid packaging bags, the shape of the heat seal has been changed from a flat seal to a bottleneck seal. However, the large number of bottleneck seal ruptures of liquid packaging bags due to impact load during the transport, loading and unloading of packaged products has been a problem. In our previous study, we investigated impact peel strength in the heat-sealed area of a laminate film; however, the effects of the bottleneck seal shape and heat-sealed area width on impact peel strength and rupture occurrence have not yet been clarified. In this study, experiments were carried out to clarify the effects of the flat and bottleneck seal shapes, as well as heat-sealed area width, on impact peel strength and bag rupture occurrence. The following two films were used : (1) a multilayered laminate film with barrier characteristics against oxygen and water vapor, which is frequently used for liquid packaging bags owing to its high efficacy in food quality preservation, and (2) a multilayered laminate film without barrier characteristics. On the basis of the results obtained, we established, for the first time, a new standard regarding bottleneck seal shape and heat-sealed area width.

Info:

Periodical:

Key Engineering Materials (Volumes 417-418)

Edited by:

M.H Aliabadi, S. Abela, S. Baragetti, M. Guagliano and Han-Seung Lee

Pages:

193-196

Citation:

A. Shimamoto et al., "Study of Breakage at Bottleneck Seal of Liquid Packaging Bags", Key Engineering Materials, Vols. 417-418, pp. 193-196, 2010

Online since:

October 2009

Export:

Price:

$41.00

[1] H. Aoki, A. Shimamoto, K. Futase, and Y. Kamada, Reinforcement Effect and Effective Length of Heat-seal in Liquid Packing Bag, Journal of the Japanese Society for Non-destructive Inspection, Vol. 49(2), pp.116-120. (2000).

[2] H. Aoki, A. Shimamoto, K. Futase, and Y. Kamada, Effect of the Sealing Form in Flexible Bottle Neck upon Impact Tensile Behavior of Multi Layer Laminate Film, J. Soc. Mat. Sci. Japan, Vol. 54(7), pp.730-733. (2005).

DOI: https://doi.org/10.2472/jsms.54.730

[3] K. Futase, A. Shimamoto, S. Takahashi and H. Aoki, Tensile Srength of Heat-Sealing Part of Laminated Film Used for Liquid Package Bags, Journal of the Japanese Society for Non-destructive Inspection, Vol. 45(12), pp.874-879. (1996).

[4] K. Futase, A. Shimamoto, and S. Takahashi, Impact Strength Test on a Heat Sealed Portion of Laminated Film for Liquid-Filled Bag, Journal of the Japan Society of Mechanical Engineers A, 60-580, pp.209-214, (1994).

[5] K. Futase, A. Shimamoto, and S. Takahashi, Changes in Internal Pressure of Composite Film Packages by Their Drop Impact, Journal of the Japan Society of Mechanical Engineers A, 60-580, pp.215-220, (1994).

DOI: https://doi.org/10.1299/kikaia.60.2897
