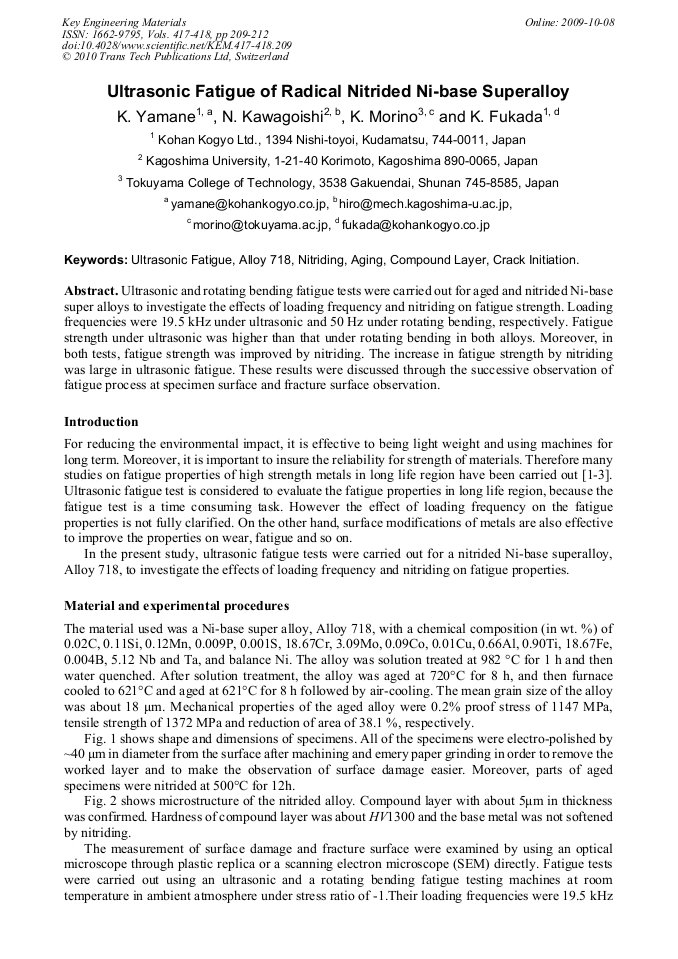

Ultrasonic Fatigue of Radical Nitrided Ni-Base Superalloy

Abstract:

Ultrasonic and rotating bending fatigue tests were carried out for aged and nitrided Ni-base super alloys to investigate the effects of loading frequency and nitriding on fatigue strength. Loading frequencies were 19.5 kHz under ultrasonic and 50 Hz under rotating bending, respectively. Fatigue strength under ultrasonic was higher than that under rotating bending in both alloys. Moreover, in both tests, fatigue strength was improved by nitriding. The increase in fatigue strength by nitriding was large in ultrasonic fatigue. These results were discussed through the successive observation of fatigue process at specimen surface and fracture surface observation.

• Periodical: Key Engineering Materials (Volumes 417-418)
• Pages: 209-212
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.417-418.209
• Online since: October 2009
• Authors: K. Yamane, Norio Kawagoishi, Kazuhiro Morino, K. Fukada
• Keywords: Aging, Alloy 718, Compound Layer, Crack Initiation, Nitriding, Ultrasonic Fatigue

References

[1] Y. Murakami, et al, Trans. Japan Soc. Mech. Eng., Vol. 66 (2000), p.311.

[2] QY. Wang, et al, Int, Jour. of Fatigue, Vo. 24(2002), 1269.

[3] N. Kawagoishi, et al, Trans. Japan Soc. Mech. Eng., Vol. 72 (2006), p.1356.

[4] K. Nishimura, et al, Proceedings of JSME, No. 078-2(2007), p.17.

[5] K. Miura, et al, Jour. of Soc. Sci. Japan, Vol. 47(1998).
