Comprehensive Hygro-Thermo-Vapor Pressure Model for CMOS Image Sensor

Abstract:

A combined effect of moisture diffusion, heat transfer, and hygro-thermo-vapor pressure modeling for pre-mold QFN CMOS Image Sensor (CIS) package has been developed in this study. Hygroscopic swelling properties such as saturation, coefficient of moisture expansion (CME) and activation energy can be extracted through TMA (Thermal Mechanical Analysis) and TGA (Thermal Gravitational Analysis) instruments. Fick’s second law of transient diffusion is solved by using finite element analysis (FEA) to evaluate the overall moisture distributions. With obtained experimental data, a three-dimensional FEA CIS model using the “thermal-wetness” technique is developed to predict the moisture absorption, moisture desorption, temperature distributions, hygro-thermo-vapor pressure mechanical coupled effect and the residual stress distributions at JEDEC pre-conditioning standard JESD22-A120.

You might also be interested in these eBooks

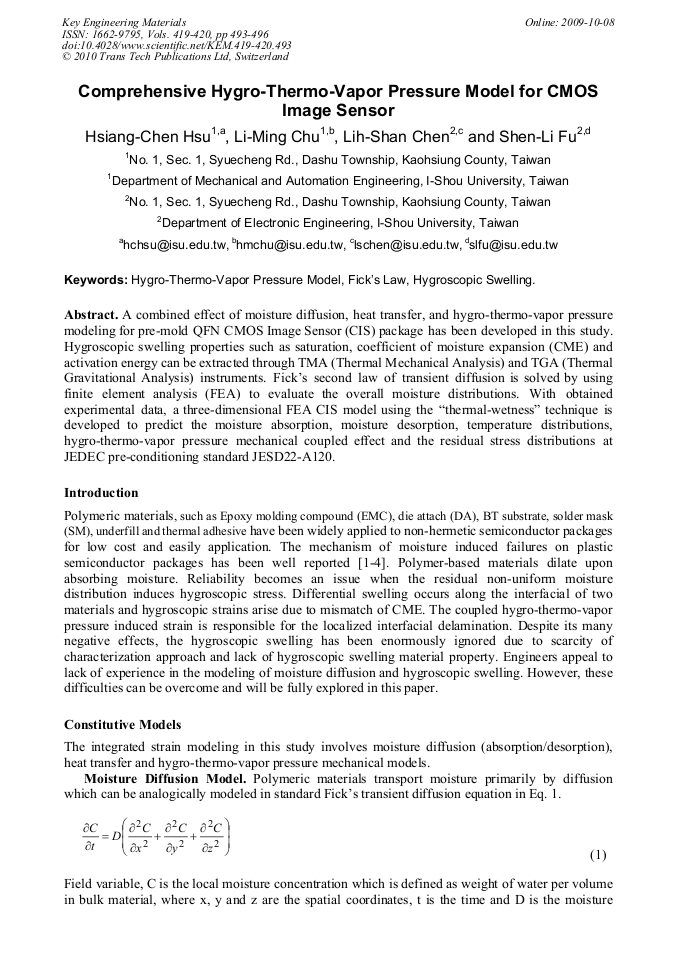

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 419-420)

Pages:

493-496

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.419-420.493

Citation:

Cite this paper

Online since:

October 2009

Authors:

Hsiang Chen Hsu, Li Ming Chu, Lih Shan Chen, Shen Li Fu

Keywords:

Fick's Law, Hygroscopic Swelling, Hygro-Thermo-Vapor Pressure Model

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] T.Y. Tee and H.S. Ng: Whole Field Vapor Pressure Modeling of QFN during Reflow with Coupled Hygro-Mechanical and Thermo-Mechanical Stresses, Electronic Components and Technology Conference (2002), p.1552.

DOI: 10.1109/ectc.2002.1008314

Google Scholar

[2] P.S. Lahoti, S.C. Kallolimath and J. Zhou: Finite Element Analysis of Thermo-Hygro- Mechanical Failure of a Flip Chip Package, Electronic Packaging Technology Conference, (2004), p.142.

DOI: 10.1109/icept.2005.1564707

Google Scholar

[3] X. Chen, S. Zhao and L. Zhai: Moisture Absorption and Diffusion Characterization of Molding Compound, Transaction of ASME, Vol. 127, (2005), p.460.

DOI: 10.1115/1.2065707

Google Scholar

[4] H.C. Hsu, H.Y. Lee, Y.C. Hsu and S. L Fu: Thermal-Hygro-Mechanical Design and Reliability Analysis for CMOS Image Sensor, Journal of Thermal Stress, Vol. 31, (2008), p.914.

DOI: 10.1080/01495730802194532

Google Scholar
