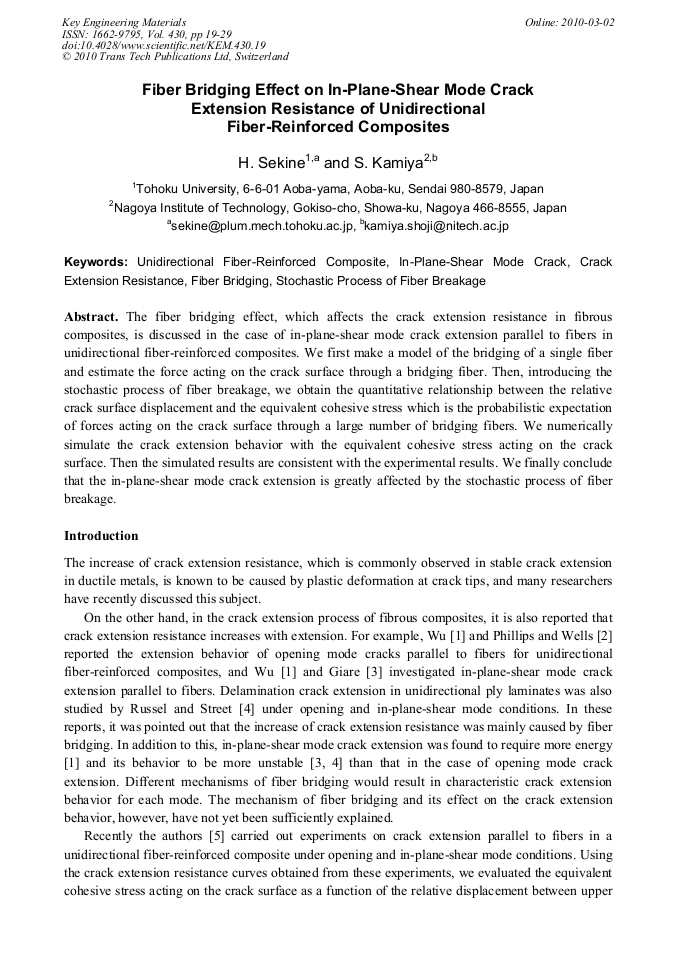

Fiber Bridging Effect on In-Plane-Shear Mode Crack Extension Resistance of Unidirectional Fiber-Reinforced Composites

Abstract:

The fiber bridging effect, which affects the crack extension resistance in fibrous composites, is discussed in the case of in-plane-shear mode crack extension parallel to fibers in unidirectional fiber-reinforced composites. We first make a model of the bridging of a single fiber and estimate the force acting on the crack surface through a bridging fiber. Then, introducing the stochastic process of fiber breakage, we obtain the quantitative relationship between the relative crack surface displacement and the equivalent cohesive stress which is the probabilistic expectation of forces acting on the crack surface through a large number of bridging fibers. We numerically simulate the crack extension behavior with the equivalent cohesive stress acting on the crack surface. Then the simulated results are consistent with the experimental results. We finally conclude that the in-plane-shear mode crack extension is greatly affected by the stochastic process of fiber breakage.

• Periodical: Key Engineering Materials (Volume 430)
• Pages: 19-29
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.430.19
• Online since: March 2010
• Authors: Hideki Sekine, Shoji Kamiya
• Keywords: Crack Extension Resistance, Fiber Bridging, In-Plane-Shear Mode Crack, Stochastic Process of Fiber Breakage, Unidirectional Fiber-Reinforced Composite

References

[1] E. M. Wu: Trans. ASME, Ser. E Vol. 34 (1967), p.967.

[2] D. C. Phillips and G. M. Wells: J. Mater. Sci. Lett. Vol. 1 (1982), p.321.

[3] G. S. Giare: Engng. Fract. Mech. Vol. 20 (1984), p.11.

[4] A. J. Russel and K. N. Street: Proc. ICCM-IV (1982), p.279.

[5] H. Sekine and S. Kamiya: Trans. Jpn. Soc. Mech. Eng. Vol. 54A (1988), p.723.

[6] H. Sekine and S. Kamiya: J. Soc. Mater. Sci. Jpn. Vol. 37 (1988), p.505.

[7] R. Olshansky and R. D. Mauer: J. Appl. Phys. Vol. 47 (1976), p.4497.

[8] H. Sekine and S. Kamiya: Trans. Jpn. Soc. Mech. Eng. Vol. 52A (1986), p. (2001).

[9] H. Sekine and S. Kamiya: Trans. Jpn. Soc. Mech. Eng. Vol. 53A (1987), p.930.

[10] A. G. Metcalfe and G. K. Schmitz: Proc. ASTM Vol. 64 (1964), p.1075 Fig. A. 3 Equivalent cohesive stresses in the case of opening mode crack extension. Fig. A. 4 Crack extension resistance curves in the case of opening mode crack extension.
