High-Temperature Forming of a Vehicle Closure Component in Fine-Grained Aluminum Alloy AA5083: Finite Element Simulations and Experiments

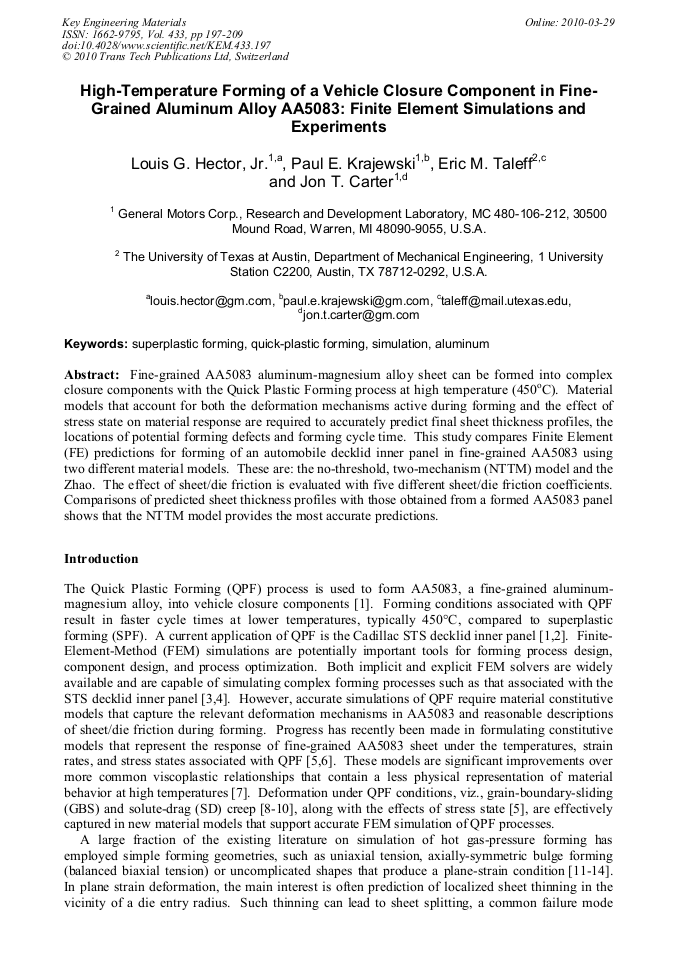

Article Preview

Abstract:

Fine-grained AA5083 aluminum-magnesium alloy sheet can be formed into complex closure components with the Quick Plastic Forming process at high temperature (450oC). Material models that account for both the deformation mechanisms active during forming and the effect of stress state on material response are required to accurately predict final sheet thickness profiles, the locations of potential forming defects and forming cycle time. This study compares Finite Element (FE) predictions for forming of an automobile decklid inner panel in fine-grained AA5083 using two different material models. These are: the no-threshold, two-mechanism (NTTM) model and the Zhao. The effect of sheet/die friction is evaluated with five different sheet/die friction coefficients. Comparisons of predicted sheet thickness profiles with those obtained from a formed AA5083 panel shows that the NTTM model provides the most accurate predictions.

You might also be interested in these eBooks

Superplasticity in Advanced Materials - ICSAM 2009

Info:

Periodical:

Key Engineering Materials (Volume 433)

Pages:

197-209

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.433.197

Citation:

Cite this paper

Online since:

March 2010

Authors:

Louis G. Hector, Paul E. Krajewski, Eric M. Taleff, Jon T. Carter

Keywords:

Aluminum (Al), Quick-Plastic Forming, Simulation, Super Plastic Forming (SPF)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2010 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] P.E. Krajewski and J. G Schroth: Mater. Sci. Forum Vols. 551-552 (2007), p.3.

[2] R. Verma and J.T. Carter: SAE 2006-01-0525 (Society of Automotive Engineers, Inc., Warrendale, Pa: 2006).

[3] PAM-STAMP 2G TM V 2007, www. esi group. com.

[4] ABAQUSTM , www. simulia. com.

[5] E.M. Taleff, L.G. Hector, Jr., J.R. Bradley, R. Verma and P.E. Krajewski: Acta Materialia Vol. 57 (2009), p.2812.

[6] R. Verma, L.G. Hector, Jr., P. Krajewski and E. M Taleff: JOM (2009) in press.

[7] S.G. Luckey, P.A. Friedman and K.J. Weinmann: J. Materials Processing Technology Vol. 194 (2007), p.30.

[8] M. -A. Kulas: Mechanical and Microstructural Characterization of Commerical AA5083 Aluminum Alloys. PhD thesis, Mechanical Engineering Dept., The University of Texas at Austin, May (2004).

[9] M. -A. Kulas, W.P. Green, E.M. Taleff, P. E. Krajewski and T.R. McNelley: Metallurgical and Materials Transactions A Vol. 36 (2005), p.1249.

DOI: 10.1007/s11661-005-0217-x

[10] M. -A. Kulas, W.P. Green, E.M. Taleff, P.E. Krajewski and T.R. McNelley: Metallurgical and Materials Transactions A Vol. 37 (2006), p.645.

DOI: 10.1007/s11661-006-0036-8

[11] M.A. Khaleel, K.I. Johnson and M.T. Smith: Mater. Sci. Forum Vols. 243-245 (1997), p.739.

[12] Y.M. Hwang, J.S. Yang, T.R. Chen and J.C. Huang: J. Materials Processing Technology Vol. 65 (1997), p.215.

[13] Y. -M. Huang, H.S. Lay and J.C. Huang: Int. J. Machine Tools & Manufacture Vol. 42 (2002), p.1363.

[14] C.H. Johnson, C.H. Hamilton, H. M. Zbib and S. K. Richter, in Advances in Superplastic Forming, N. Chandra, H. Garmestani and R.E. Goforth, eds. TMS (The Mineral, Metals & Materials Society 1993), pp.3-15.

[15] H. Zhao: Mat. Sci. Eng. A Vol. 230 (1997), p.95.

[16] P.E. Krajewski and G.P. Montgomery, Jr., in: Advances in Superplasticity and Superplastic Forming, edited by E.M. Taleff, P.A. Friedman, P.E. Krajewski, R.S. Mishra and J.G. Schroth (TMS: 2004), pp.341-349.

[17] O. D. Sherby and P. M. Burke: Progress in Materials Science Vol. 13 (1968), p.324.

[18] E. M. Taleff, P. J. Nevland and P. E. Krajewski: Metallurgical and Materials Transactions A Vol. 32 (2001), p.1119.

[19] G.P. Montgomery, Jr., in: Advances in Superplasticity and Superplastic Forming, edited by E.M. Taleff, P.A. Friedman, P.E. Krajewski, R.S. Mishra and J.G. Schroth (TMS: 2004), pp.323-339.

[20] N.R. Harrison, S.G. Luckey, P.A. Friedman and Z.C. Xia, in: Advances in Superplasticity and Superplastic Forming, edited by E.M. Taleff, P.A. Friedman, P.E. Krajewski, R.S. Mishra and J.G. Schroth (TMS: 2004), pp.301-309.

[21] P.E. Krajewski, in: Trends in Materials and Manufacturing Technologies for Transportation Industries and Powder Metallurgy Research and Development in the Transportation 2007 (TMS: 2007), pp.127-133.

[22] A.K. Ghosh and C.H. Hamilton, in Process Modeling, Fundamentals and Applications to Metals, edited by T. Altan, H. Burte, H. Gegel and A. Male (American Society for Metals: 1979), pp.303-331.
