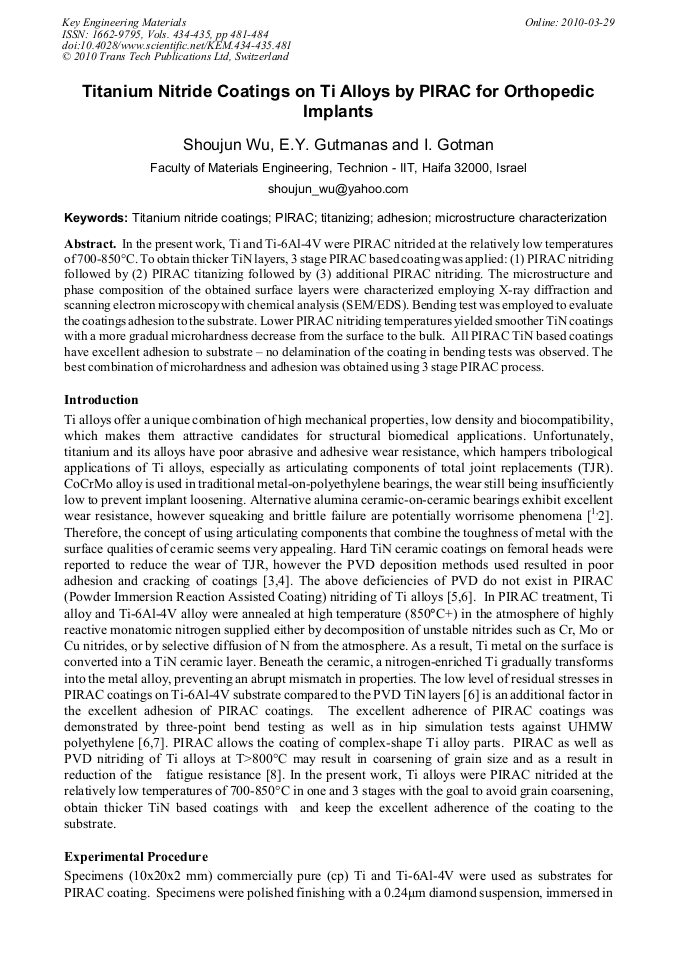

Titanium Nitride Coatings on Ti Alloys by PIRAC for Orthopedic Implants

Abstract:

In the present work, Ti and Ti-6Al-4V were PIRAC nitrided at the relatively low temperatures of 700-850°C. To obtain thicker TiN layers, 3 stage PIRAC based coating was applied: (1) PIRAC nitriding followed by (2) PIRAC titanizing followed by (3) additional PIRAC nitriding. The microstructure and phase composition of the obtained surface layers were characterized employing X-ray diffraction and scanning electron microscopy with chemical analysis (SEM/EDS). Bending test was employed to evaluate the coatings adhesion to the substrate. Lower PIRAC nitriding temperatures yielded smoother TiN coatings with a more gradual microhardness decrease from the surface to the bulk. All PIRAC TiN based coatings have excellent adhesion to substrate – no delamination of the coating in bending tests was observed. The best combination of microhardness and adhesion was obtained using 3 stage PIRAC process.

• Periodical: Key Engineering Materials (Volumes 434-435)
• Pages: 481-484
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.434-435.481
• Online since: March 2010
• Authors: Shou Jun Wu, Elazar Y. Gutmanas, I. Gotman
• Keywords: Adhesion, Microstructure Characterization, PIRAC, Titanium Nitride Coating, Titanizing

References

[1] P. Bizot, R. Nizard and S. Lerouge et al.: J Orthop Sci Vol. 5 (2000), p.622.

[2] E.W. Fritsch and M. Gleitz: Clin Orthop Vol. 328 (1996), p.129.

[3] M.K. Harman, S.A. Banks, W.A. Hodge: J Arthroplasty Vol. 12(1997), p.938.

[4] S.N. Massoud, J.B. Hunter, B.J. Holdsworth, et al.: J Bone Joint Surg Br. Vol. 79 (1997), p.603.

[5] A. Shenhar, I. Gotman, E.Y. Gutmanas, P. Ducheyne: Mater. Sci. Eng., A Vol. 268 (1999), p.40.

[6] A. Shenhar, I. Gotman, S. Radin, et al.: Surface Coat. Techn. Vol. 126 (2000), p.210.

[7] E.Y. Gutmanas, I. Gotman: J. Mater. Sci. - Mater. Med. Vol. 15 (2004), p.327.

[8] T. Bell, H.W. Bergmann, J. Lanagan, et al.: Surf. Engng. Vol. 2 (1986).
