Preparation of Ni – MgO– La2O3 Catalyst on Alumina Support for Catalytic Tar Cracking Process

Sildara Thassanaprichayanont; Duangduen Atong; Viboon Sricharoenchaikul

doi:10.4028/www.scientific.net/KEM.434-435.826

Paper Titles

A Novel Technique of Flyash Utilization: Preparation of Silica from Flyash by Alkali Leaching
p.814

Morphology Control of Si-Based Nanostructures by Catalyst-Assisted Pyrolysis of Preceramic Precursors
p.816

Analysis of Profitability in Chinese Listed Ceramic Companies
p.820

Environmental Pollution and Pollution Control in Chinese Ceramic Industry
p.823

Preparation of Ni – MgO– La₂O₃ Catalyst on Alumina Support for Catalytic Tar Cracking Process
p.826

Properties of Nanosize Aluminum Nitride Powders Synthesized by Chemical Vapor Synthesis
p.830

Properties of AlN Powder Synthesized by Self-Propagating High Temperature Synthesis Process
p.834

Properties of Silica Ceramic Made from Amorphous Silica
p.838

Redesign and Optimization for Ceramic Injection Mould of ZrO₂ Fiber Ferrule
p.840

HomeKey Engineering MaterialsKey Engineering Materials Vols. 434-435Preparation of Ni – MgO– La2O3 Catalyst on Alumina...

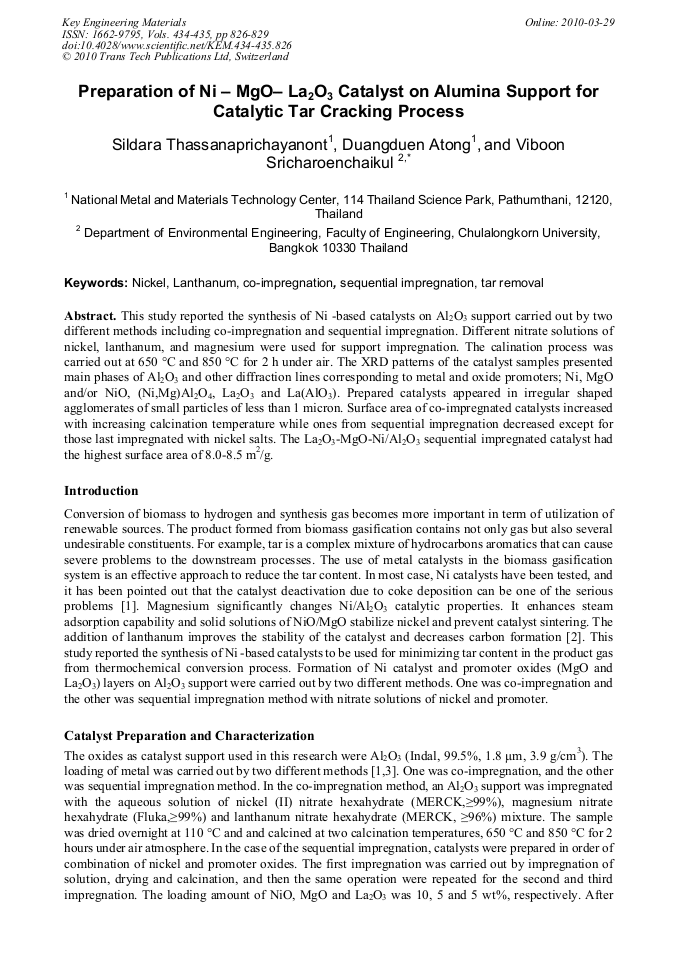

Preparation of Ni – MgO– La₂O₃ Catalyst on Alumina Support for Catalytic Tar Cracking Process

Abstract:

This study reported the synthesis of Ni -based catalysts on Al2O3 support carried out by two different methods including co-impregnation and sequential impregnation. Different nitrate solutions of nickel, lanthanum, and magnesium were used for support impregnation. The calination process was carried out at 650 °C and 850 °C for 2 h under air. The XRD patterns of the catalyst samples presented main phases of Al2O3 and other diffraction lines corresponding to metal and oxide promoters; Ni, MgO and/or NiO, (Ni,Mg)Al2O4, La2O3 and La(AlO3). Prepared catalysts appeared in irregular shaped agglomerates of small particles of less than 1 micron. Surface area of co-impregnated catalysts increased with increasing calcination temperature while ones from sequential impregnation decreased except for those last impregnated with nickel salts. The La2O3-MgO-Ni/Al2O3 sequential impregnated catalyst had the highest surface area of 8.0-8.5 m2/g.
