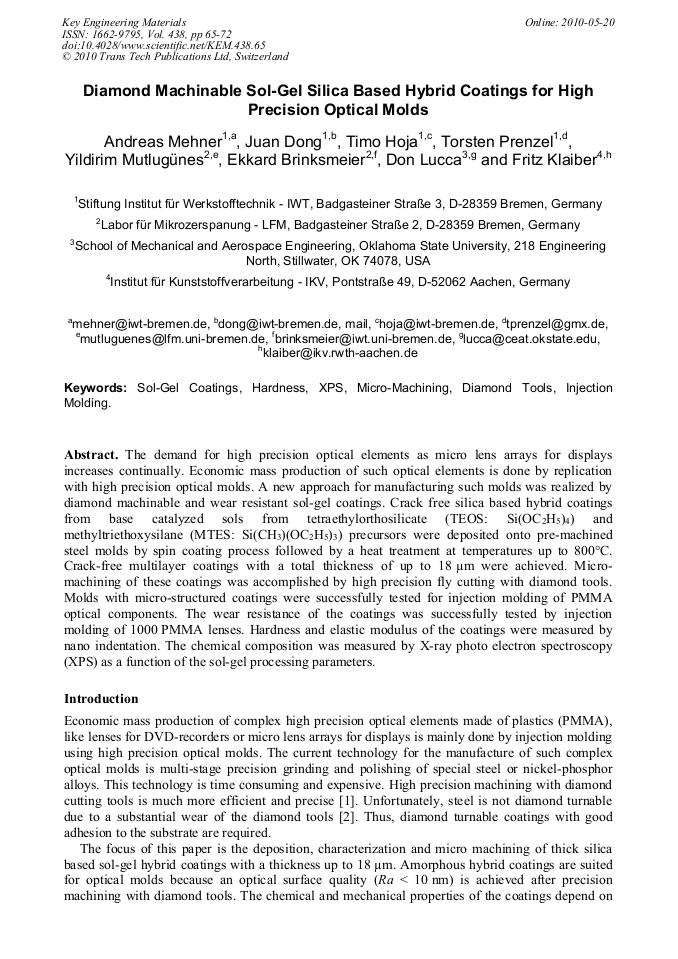

Diamond Machinable Sol-Gel Silica Based Hybrid Coatings for High Precision Optical Molds

Abstract:

The demand for high precision optical elements as micro lens arrays for displays increases continually. Economic mass production of such optical elements is done by replication with high precision optical molds. A new approach for manufacturing such molds was realized by diamond machinable and wear resistant sol-gel coatings. Crack free silica based hybrid coatings from base catalyzed sols from tetraethylorthosilicate (TEOS: Si(OC2H5)4) and methyltriethoxysilane (MTES: Si(CH3)(OC2H5)3) precursors were deposited onto pre-machined steel molds by spin coating process followed by a heat treatment at temperatures up to 800°C. Crack-free multilayer coatings with a total thickness of up to 18 µm were achieved. Micro-machining of these coatings was accomplished by high precision fly cutting with diamond tools. Molds with micro-structured coatings were successfully tested for injection molding of PMMA optical components. The wear resistance of the coatings was successfully tested by injection molding of 1000 PMMA lenses. Hardness and elastic modulus of the coatings were measured by nano indentation. The chemical composition was measured by X-ray photo electron spectroscopy (XPS) as a function of the sol-gel processing parameters.

• Periodical: Key Engineering Materials (Volume 438)
• Pages: 65-72
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.438.65
• Online since: May 2010
• Authors: Andreas Mehner, Ju An Dong, Timo Hoja, Torsten Prenzel, Yildirim Mutlugünes, Ekkard Brinksmeier, Don Lucca, Fritz Klaiber
• Keywords: Diamond Tool, Hardness, Injection Molding, Micro Machining, Sol-Gel Coating, X-Ray Photoelectron Spectroscopy (XPS)

References

[1] E. Brinksmeier, O. Riemer, W. Preuß, F. Klocke, T. Pfeifer, M. Weck, W. Michaeli, P. Mayr, H. -R. Stock, A. Mehner, G. Goch, D.A. Lucca: Process Chains for the Replication of Complex Optical Elements, Annals of the WGP (Wissenschaftliche Gesellschaft fuer Produktionstechnik) v. XI/1 (2004).

[2] H. Tanaka, S. Shimada, N. Ikawa, M. Yoshinaga: Wear Mechanism of Diamond Cutting Tools in Machining of Steel, Key Engineering Materials 196 (2001), pp.69-78.

DOI: 10.4028/www.scientific.net/kem.196.69

[3] H. Schmidt, Organically Modified Silicates by the Sol-Gel Process, Material Res. Soc. Symp. Proc., Vol. 32 (1984) pp.327-335.

[4] M. Menning, G. Jonschker, H. Schmidt, Verfahren zum Versehen einer metallischen Oberfläche mit einer metallischen Schicht, German Patent DE 197, 14, 949 A1. (1997).

[5] A. Mehner, W. Datchary, N. Bleil, H. -W. Zoch, M.J. Klopfstein, D.A. Lucca: The Influence of Processing on Crack Formation, Microstructure, Density and Hardness of Sol-Gel Derived Zirconia Films, Journal of Sol-Gel Science and Technology 36 (2005).

DOI: 10.1007/s10971-005-4792-5

[6] D.A. Lucca, M.J. Klopfstein, R. Ghisleni, A. Gude, A. Mehner, W. Datchary: Investigation of Sol-Gel Derived ZrO2 Thin Films by Nanoindentation. Annals of the CIRP 53 No. 1, (2004) pp.475-478.

DOI: 10.1016/s0007-8506(07)60743-4

[7] R. McCann, S.S. Roy, P. Papakonstantinou, M.F. Bain, H.S. Gamble, J.A. McLaughlin: Chemical Bonding Modifications of Tetrahedral Amorphous Carbon and Nitrogenated Tetrahedral Amorphous Carbon Films Induced by Rapid Thermal Annealing, Thin Solid Films 482 (2005).

DOI: 10.1016/j.tsf.2004.11.151

[8] J. C. Barbour, B. L. Doyle, J. R. Tesmer (Ed. ), M. Nastasi (Ed. ), J. C. Barbour (contributing Ed. ), C. J. Maggiore (contributing Ed. ), J.W. Mayer (contributing Ed. ) (1995).

[9] W. Datchary, A. Mehner, H. -W. Zoch, D.A. Lucca, M.J. Klopfstein, R. Ghisleni, D. Grimme, E. Brinksmeier: High Precision Diamond Machining of Hybrid Sol-Gel Coatings, Journal of Sol-Gel Science and Technology 35 (2005) pp.245-251.

DOI: 10.1007/s10971-005-1835-x

[10] A. Mehner, H. -W. Zoch, W. Datchary, G. Pongs / H. Kunzmann: Sol-Gel Coatings for High Precision Optical Molds, CIRP Annals 55 No. 1 (2006) pp.589-592.

DOI: 10.1016/s0007-8506(07)60489-2

[11] J. P. Lukaszewicz, X-ray Photoelectron Spectroscopy Studies of Sodium Modified Carbon Films Suitable for Use in Humidity Sensors, J. Mater. Sci., 32 (1997) pp.6063-6068.
