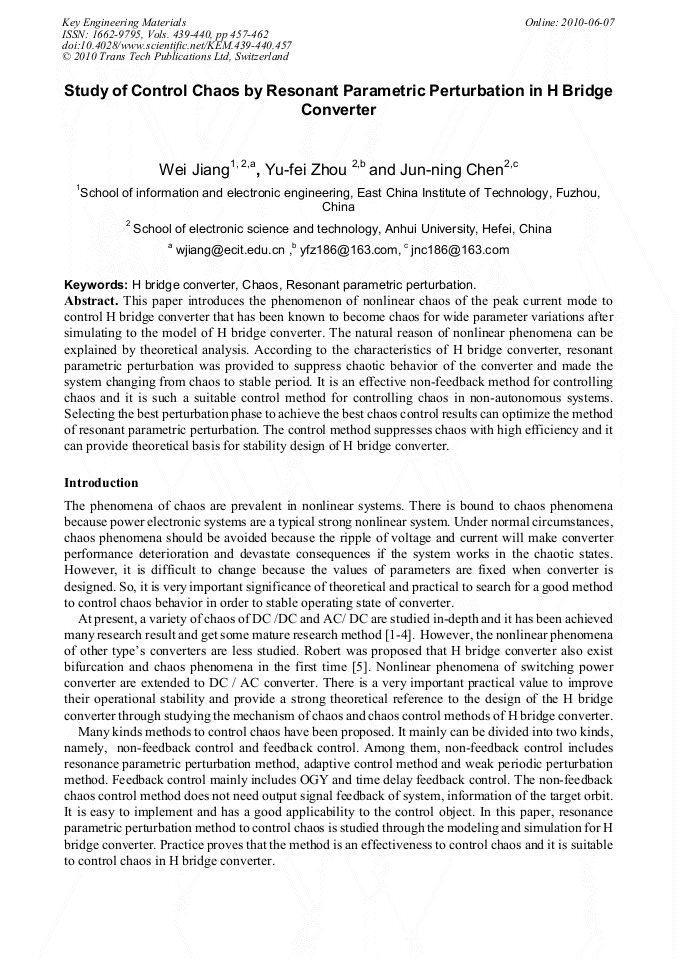

Study of Control Chaos by Resonant Parametric Perturbation in H Bridge Converter

Abstract:

This paper introduces the phenomenon of nonlinear chaos of the peak current mode to control H bridge converter that has been known to become chaos for wide parameter variations after simulating to the model of H bridge converter. The natural reason of nonlinear phenomena can be explained by theoretical analysis. According to the characteristics of H bridge converter, resonant parametric perturbation was provided to suppress chaotic behavior of the converter and made the system changing from chaos to stable period. It is an effective non-feedback method for controlling chaos and it is such a suitable control method for controlling chaos in non-autonomous systems. Selecting the best perturbation phase to achieve the best chaos control results can optimize the method of resonant parametric perturbation. The control method suppresses chaos with high efficiency and it can provide theoretical basis for stability design of H bridge converter.

• Periodical: Key Engineering Materials (Volumes 439-440)
• Pages: 457-462
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.439-440.457
• Online since: June 2010
• Authors: Wei Jiang, Yu Fei Zhou, Jun Ning Chen
• Keywords: Chaos, H Bridge Converter, Resonant Parametric Perturbation

References

[1] J. Deane, D. D. Hamill: Instability, subharmonics, and chaos in power electronics circuits. IEEE Transactions on Power Electronics, Vol. 5, No. 3, (1990), pp.260-268.

DOI: 10.1109/63.56516

[2] C.K. TSE: Complex Behavior of Switching Power Converters (CRC Press, Boca Roton 2003).

[3] J .H. B. Deane and D. C. Hamill: Chaotic behavior in a current-mode controlled dc-dc converter. Electronics Letters, Vol. 27, No. 3, (1991), pp.1172-1173.

DOI: 10.1049/el:19910731

[4] J. Baillieul, R.W. Brockett and R.B. Washburn: Chaotic motion in nonlinear feedback systems. IEEE Transactions on Circuits and Systems, Vol. 27, No. 11, (1980), pp.990-997.

DOI: 10.1109/tcs.1980.1084739

[5] B. Robert and C. Robert: Border collision bifurcations in a one-dimensional piecewise smooth map for a PWM current-programmed H-bridge inverter. International Journal of Control., Vol. 27, No. 75, (2002), pp.1356-1367.

DOI: 10.1080/0020717021000023771

[6] X.M. Wang and B. Zhang: Mechanism of Border-collision Bifurcations and Chaos in H-bridge Direct Current Chopper. Transactions of China Electro Technical Society, Vol. 29, No. 9, (2009), pp.22-26.

[7] Y. F. Zhou, C.K. Tse, S.S. Qiu and F.C.M. Lau: Applying Resonant Parametric Perturbarion to Control Chaos in the Buck Dc/Dc Converter With Phase Shift and Frequency Mismatch Considerations. International Journal of Bifurcation and Chaos, Vol. 13, No. 11, (2003).

DOI: 10.1142/s0218127403008685
