Simulation and Experiment of New Whole Vibrator for Ultrasonic Vibration Internal Grinding System

Abstract:

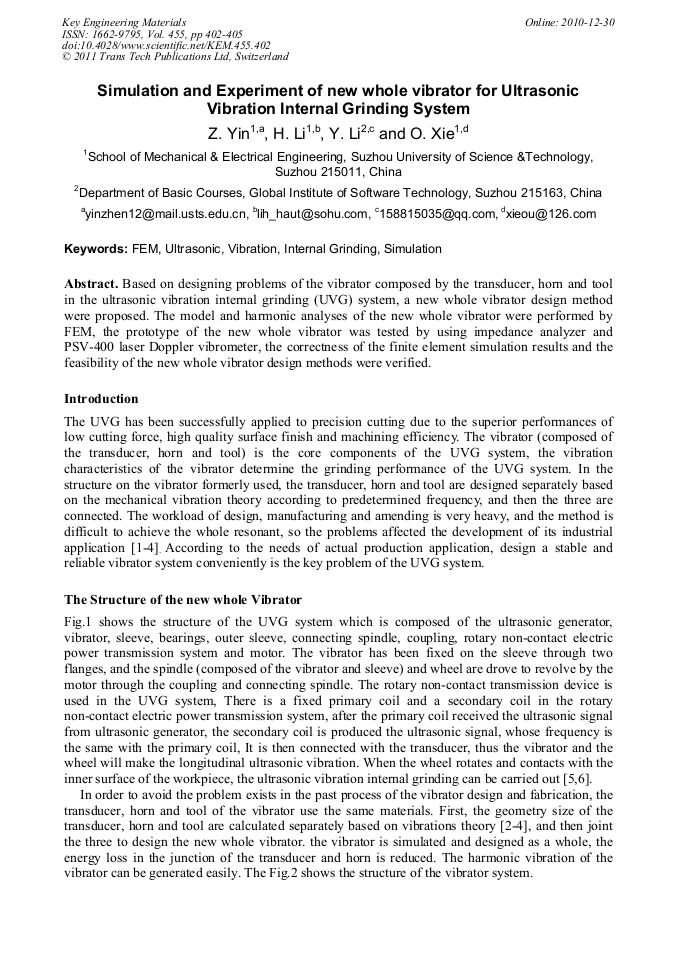

Article Preview

Based on designing problems of the vibrator composed by the transducer, horn and tool in the ultrasonic vibration internal grinding (UVG) system, a new whole vibrator design method were proposed. The model and harmonic analyses of the new whole vibrator were performed by FEM, the prototype of the new whole vibrator was tested by using impedance analyzer and PSV-400 laser Doppler vibrometer, the correctness of the finite element simulation results and the feasibility of the new whole vibrator design methods were verified.
