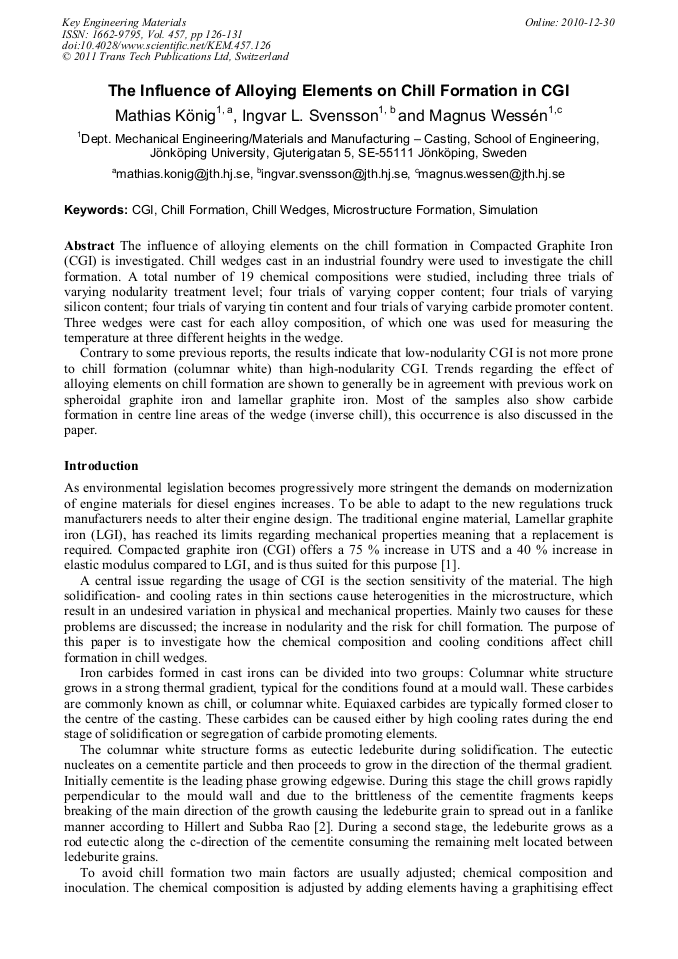

The Influence of Alloying Elements on Chill Formation in CGI

Abstract:

The influence of alloying elements on the chill formation in Compacted Graphite Iron (CGI) is investigated. Chill wedges cast in an industrial foundry were used to investigate the chill formation. A total number of 19 chemical compositions were studied, including three trials of varying nodularity treatment level; four trials of varying copper content; four trials of varying silicon content; four trials of varying tin content and four trials of varying carbide promoter content. Three wedges were cast for each alloy composition, of which one was used for measuring the temperature at three different heights in the wedge. Contrary to some previous reports, the results indicate that low-nodularity CGI is not more prone to chill formation (columnar white) than high-nodularity CGI. Trends regarding the effect of alloying elements on chill formation are shown to generally be in agreement with previous work on spheroidal graphite iron and lamellar graphite iron. Most of the samples also show carbide formation in centre line areas of the wedge (inverse chill), this occurrence is also discussed in the paper.

• Periodical: Key Engineering Materials (Volume 457)
• Pages: 126-131
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.457.126
• Online since: December 2010
• Authors: Mathias König, Ingvar L. Svensson, Magnus Wessen
• Keywords: CGI, Chill Formation, Chill Wedge, Microstructure Formation, Simulation

References

[1] S. Dawson: Indian Foundry Journal Vol 55 (2009), pp.28-34.

[2] M. Hillert and V.V. Subba Rao: The Solidification Of Metals (1968), pp.204-212.

[3] A. de Sy: AFS Trans Vol 67 (1959), pp.321-328.

[4] T. Carlberg and H. Fredriksson, in: Solidification and Casting of Metals, (1977), Sheffield, England, pp.115-124.

[5] R.C. Voigt and C.R. Loper, Jr: AFS Trans Vol 97 (1989), pp.595-600.

[6] J.F. Janowak and R.B. Gundlach: AFS Trans Vol 90 (1982), pp.847-863.

[7] R. Barton, R: BCIRA Journal Vol 8 (1960), pp.567-580.

[8] M. Lampic: Giesserei Vol 79 (1992), pp.872-878.

[9] S. Dawson, W. Troschel, and U. Dieterle: Foundry Trade Journal Vol 175 (2001), p.10, 12-14.

[10] L. Bäckerud, K. Nilsson, and H. Steen, in: SPCI-2 (1975), Geneva, Switzerland pp.625-637.

[11] D.M. Stefanescu, F. Martinez, and I.G. Chen: AFS Trans Vol 91 (1983), pp.205-216.

[12] D.M. Stefanescu in: SPCI-3 (1984), Stockholm, Sweden, pp.151-162.

[13] M. König and M. Wessén: Int. J. Cast. Met. Res. Vol 22 (2009), pp.164-167.

[14] M. König and M. Wessén: Int. J. Cast. Met. Res. Vol 23 (2010), pp.97-110.

[15] J.A. Sikora, G.L. Rivera, and R.E. Boeri: Cast Metals Vol 8 (1995), pp.1-5.
