Improvement of the Metallurgical Quality of Ductile Iron by Conditioning

Abstract:

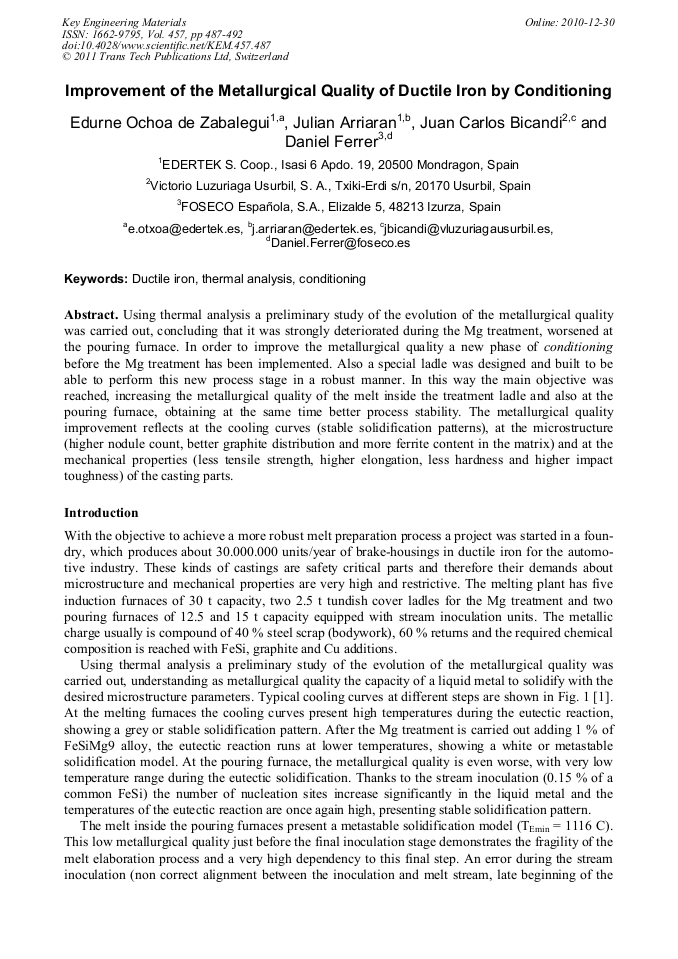

Using thermal analysis a preliminary study of the evolution of the metallurgical quality was carried out, concluding that it was strongly deteriorated during the Mg treatment, worsened at the pouring furnace. In order to improve the metallurgical quality a new phase of conditioning before the Mg treatment has been implemented. Also a special ladle was designed and built to be able to perform this new process stage in a robust manner. In this way the main objective was reached, increasing the metallurgical quality of the melt inside the treatment ladle and also at the pouring furnace, obtaining at the same time better process stability. The metallurgical quality improvement reflects at the cooling curves (stable solidification patterns), at the microstructure (higher nodule count, better graphite distribution and more ferrite content in the matrix) and at the mechanical properties (less tensile strength, higher elongation, less hardness and higher impact toughness) of the casting parts.

• Periodical: Key Engineering Materials (Volume 457)
• Pages: 487-492
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.457.487
• Online since: December 2010
• Authors: Edurne Ochoa de Zabalegui, Julian Arriaran, Juan Carlos Bicandi, Daniel Ferrer
• Keywords: Conditioning, Ductile Iron, Thermal Analysis

References

[1] J. Tartera, M. Marsal, G. Varela-Castro and E. Ochoa de Zabalegui: International Journal of Metalcasting, Fall 09 (2009) pp.7-17.

DOI: 10.1007/bf03355454

[2] C.R. Loper Jr.: II Foundry Technical Forum, Bilbao, Spain, (2005).

[3] C. Wehling and M. Lampic: VI Foundry Technical Forum, Bilbao, Spain, (2009).

[4] T. Benecke, S. Venkateswaran, W.D. Schubert and B. Lux: Foundryman (1994), pp.355-360.

[5] M. Popescu, R. Zavadil and M. Sahoo: Int. J. of Metalcasting, Vol 3, Issue 1, (2009) pp.53-63.

[6] M. Suenaga, F. Obata, J. Sakai and T. Natsume: patent request Nr EP0317366-A1 (1989).

[7] P.C. Van Eldijk and F.B. Lietaert: patent request Nr EP 1126037 A1 (2001).

[8] K.J. Reifferscheid and D.H. Gumbinger: patent request Nr DE 4124159 C1 (1992).

[9] Information on http: /www. foundry. elkem. com/dav/d50dc48e6f. pdf (2007).

[10] I. Riposan, M. Chisamera and S. Stan: The Carl Loper Cast Iron Symposium, Madison, USA (2009).

[11] C. Ecob, M. Sims and D. Wilkinson: VI Foundry Technical Forum, Bilbao, Spain, (2009).

[12] K. J. Best: Foundry Trade Journal, Vol. 178, Nr. 3617 (2004), pp.299-302.

[13] E. Berthelet: patent request Nr WO2008012492-A1, EP1887090-A1 (2008).

[14] E. Berthelet: VI Foundry Technical Forum, Bilbao, Spain, (2009).

[15] W. Menk, D. Lindermann and D. Richard: patent request Nr EP 1270747 A2 (2001).

[16] W. Menk, R. Rietzscher, A. Hecker and T. Rieck: patent request Nr WO 2006056334 A1 (2006).

[17] G. Rau: 3. Newcast Forum - GIFA, Dusseldorf, Germany, (2007).

[18] W. Bauer: 52. Österreichische Giessereitagung, St. Pölten, Austria, (2008).

[19] W. Bauer: Giesserei, Vol. 96 (2009), pp.22-31.

[20] R.L. Naro, J.F. Wallace and Y. Zhu: http: /www. ductile. org/member/researchactivity/ complete. htm (2009).

[21] E. Ochoa de Zabalegui: Ph.D. Thesis. University of Mondragon, Spain (2009).

[22] S. Izui, N. Furumiya, H. Horie, T. Kowata and T. Takahashi: J. of the Jap. Foundrymen´s Soc., Nr. 66, Vol. 10 (1994), pp.745-750.
