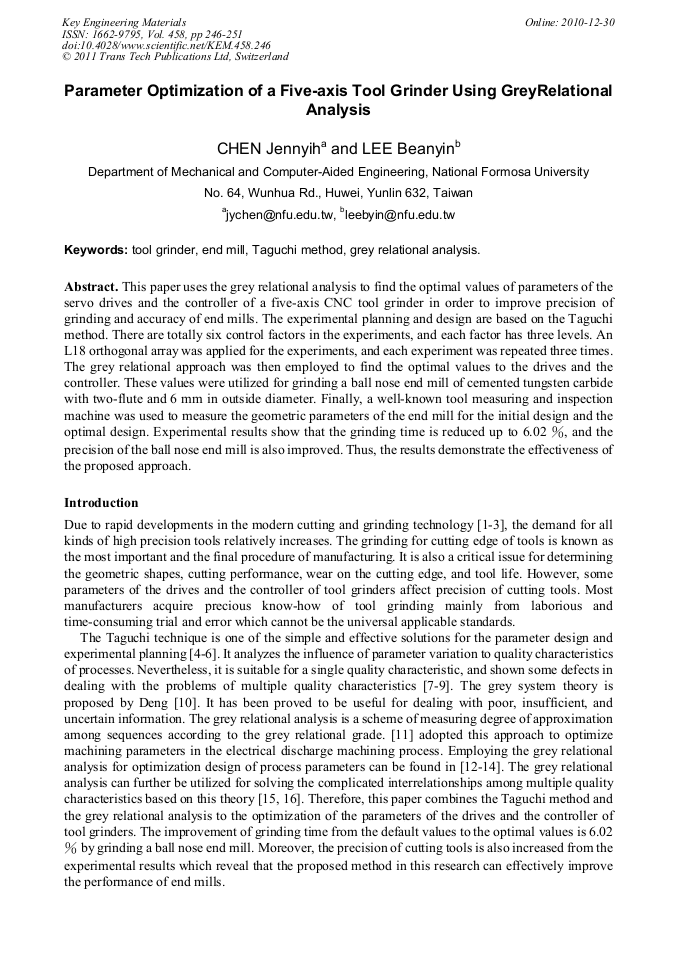

Parameter Optimization of a Five-Axis Tool Grinder Using Grey Relational Analysis

Abstract:

This paper uses the grey relational analysis to find the optimal values of parameters of the servo drives and the controller of a five-axis CNC tool grinder in order to improve precision of grinding and accuracy of end mills. The experimental planning and design are based on the Taguchi method. There are totally six control factors in the experiments, and each factor has three levels. An L18 orthogonal array was applied for the experiments, and each experiment was repeated three times. The grey relational approach was then employed to find the optimal values to the drives and the controller. These values were utilized for grinding a ball nose end mill of cemented tungsten carbide with two-flute and 6 mm in outside diameter. Finally, a well-known tool measuring and inspection machine was used to measure the geometric parameters of the end mill for the initial design and the optimal design. Experimental results show that the grinding time is reduced up to 6.02 ％, and the precision of the ball nose end mill is also improved. Thus, the results demonstrate the effectiveness of the proposed approach.

• Periodical: Key Engineering Materials (Volume 458)
• Pages: 246-251
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.458.246
• Online since: December 2010
• Authors: Jenn Yih Chen, Bean Yin Lee
• Keywords: End Mill, Grey Relational Analysis (GRA), Taguchi Method, Tool Grinder

References

[1] H. Schulz and T. Moriwaki: Annals of the CIRP Vol. 41 (1992), p.637.

[2] R.C. Dewes, D.K. Aspinwall: Journal of Materials Processing Technology Vol. 69 (1997), p.1.

[3] S. Malkin and C. Guo: Grinding Technology: Theory and Applications of Machining with Abrasives (Industrial Press, New York 2008).

[4] G. Taguchi: Taguchi on Robust Technology Development: Bringing Quality Engineering Upstream (ASME Press, New York 1992).

DOI: 10.1115/1.800288

[5] P.J. Ross: Taguchi Techniques for Quality Engineering (McGraw-Hill, New York 1998).

[6] R.K. Roy: Design of Experiments Using the Taguchi Approach (John Wiley & Sons, New York 2001).

[7] J. Kopac: International Journal of Machine Tools & Manufacture Vol. 42 (2002), p.707.

[8] M.D. Jean and Y.F. Tzeng: International Journal of Advanced Manufacturing Technology Vol. 24 (2004), p.190.

[9] M.H.C. Li and S. M. Hong: International Journal of Advanced Manufacturing Technology Vol. 25 (2005), p.118.

[10] J.L. Deng: The Journal of Grey System Vol. 1 (1989), p.1.

[11] J.L. Lin and C.L. Lin: International Journal of Machine Tools & Manufacture Vol. 42 (2002), p.237.

[12] S.H. Chang, J.R. Hwang and J.L. Doong: Journal of Materials Processing Technology Vol. 97 (2000) , p.186.

[13] Y.S. Tarng and C.H. Chang: Journal of Materials Processing Technology Vol. 128 (2002), p.1.

[14] P.S. Kao and H. Hocheng: Journal of Materials Processing Technology Vol. 140 (2003), p.255.

[15] H.S. Lu, J.Y. Chen and C.T. Chung: Journal of Achievements in Materials and Manufacturing Engineering Vol. 29 (2008), p.183.

[16] H.S. Lu, C.K. Chang, N.C. Hwang and C.T. Chung: Journal of Materials Processing Technology Vol. 209 (2009), p.3808.

[17] J.L. Deng: A Course on Grey System (HUST Press, Hubei, P.R. China 1990).

[18] T.C. Chang and S.J. Lin: Journal of Environmental Management Vol. 56 (1999), p.247.
