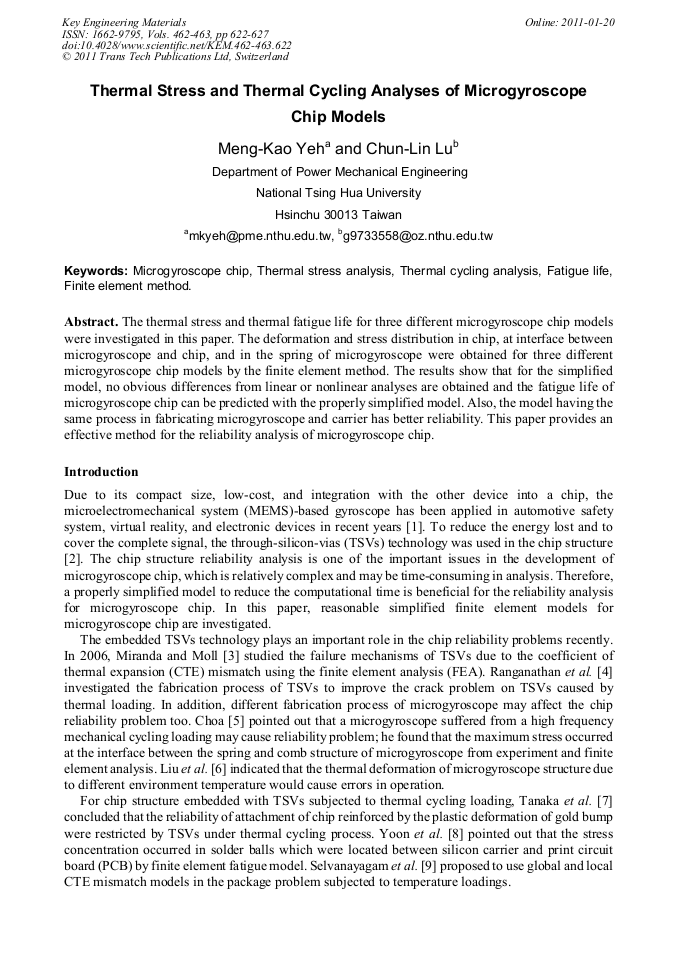

Thermal Stress and Thermal Cycling Analyses of Microgyroscope Chip Models

Abstract:

The thermal stress and thermal fatigue life for three different microgyroscope chip models were investigated in this paper. The deformation and stress distribution in chip, at interface between microgyroscope and chip, and in the spring of microgyroscope were obtained for three different microgyroscope chip models by the finite element method. The results show that for the simplified model, no obvious differences from linear or nonlinear analyses are obtained and the fatigue life of microgyroscope chip can be predicted with the properly simplified model. Also, the model having the same process in fabricating microgyroscope and carrier has better reliability. This paper provides an effective method for the reliability analysis of microgyroscope chip.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 462-463)

Pages:

622-627

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.462-463.622

Citation:

Cite this paper

Online since:

January 2011

Authors:

Meng Kao Yeh, Chun Lin Lu

Keywords:

Fatigue Life, Finite Element Model (FEM), Microgyroscope Chip, Thermal Cycling Analysis, Thermal Stress Analysis
