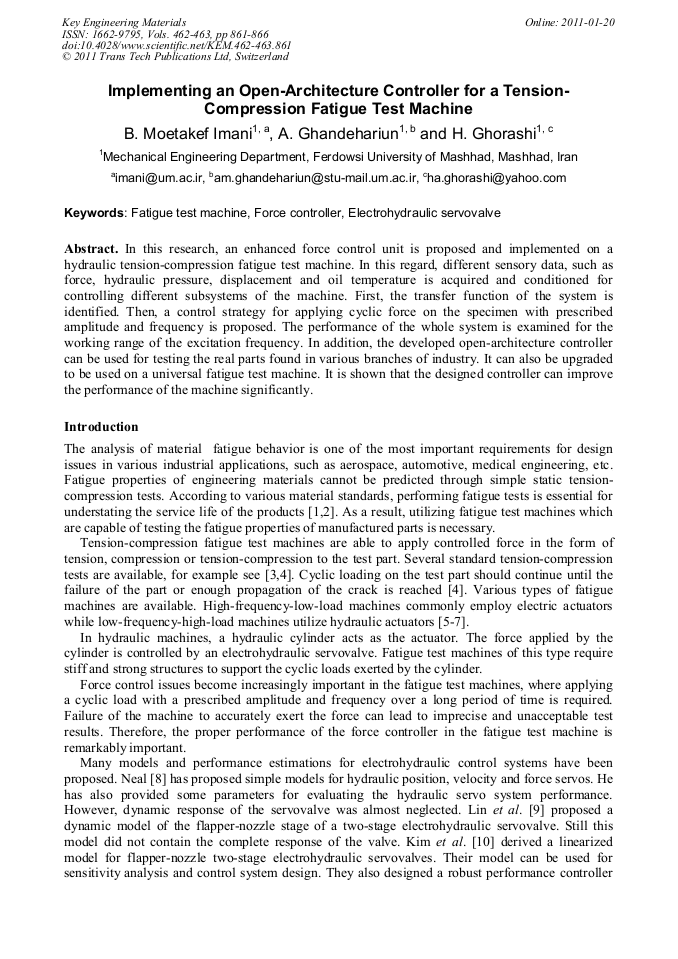

Implementing an Open-Architecture Controller for a Tension-Compression Fatigue Test Machine

Abstract:

In this research, an enhanced force control unit is proposed and implemented on a hydraulic tension-compression fatigue test machine. In this regard, different sensory data, such as force, hydraulic pressure, displacement and oil temperature is acquired and conditioned for controlling different subsystems of the machine. First, the transfer function of the system is identified. Then, a control strategy for applying cyclic force on the specimen with prescribed amplitude and frequency is proposed. The performance of the whole system is examined for the working range of the excitation frequency. In addition, the developed open-architecture controller can be used for testing the real parts found in various branches of industry. It can also be upgraded to be used on a universal fatigue test machine. It is shown that the designed controller can improve the performance of the machine significantly.

• Periodical: Key Engineering Materials (Volumes 462-463)
• Pages: 861-866
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.462-463.861
• Online since: January 2011
• Authors: B. Moetakef Imani, A. Ghandehariun, H. Ghorashi
• Keywords: Electro-Hydraulic Servo Valve, Fatigue Test Machine, Force Controller

References

[1] J. Stabler: New Servo-Hydraulic Testing Machine for the Institut für Massivbau und Baustofftechnologie (Institut für Massivbau und stofftechnologie, Universität Leipzig, 1999).

[2] Reference Manual, Instron Structural Testing Systems, Version C. (2007).

[3] Standard Practice for Conducting Force Controlled Constant Amplitude Axial Fatigue Test of Metallic Materials, ASTM Designation: E466-07. (2007).

DOI: 10.1520/e0466-21

[4] Standard Test Method for‏ Measurement of Fatigue Crack Growth Rates, ASTM Designation: E 647-08. (2009).

[5] C. Bathias: International Journal of Fatigue Vol. 28 (2006), p.1438.

[6] J.S. Bae, C.S. Oh, K.S. Park, S.K. Kim and H.J. Lee: Engineering Fracture Mechanics Vol. 75 (2008), p.4958.

[7] C.Y. Kim, J.H. Song and D.Y. Lee: International Journal of Fatigue Vol. 31 (2009), p.736.

[8] T.P. Neal: Performance Estimation for Electrohydraulic Control Systems, MOOG Technical Bulletin Vol. 126 (1974).

[9] S.J. Lin and A. Akers: Journal of Dynamic Systems, Measurement and Control Vol. 111 (1989), p.105.

[10] D.H. Kim and T.C. Tsao: Journal of Dynamic Systems, Measurement and Control Vol. 122 (2000), p.179.

[11] Quartz-3 Component Dynamometer, Instruction Manual, Kistler Co. 9255B-002-052-01. 91.

[12] Servo Directional Valve of 4-way Design Type 4WS. 2E, Rexroth Bosch Group. (2003).

[13] K. Ogata, in: Modern Control Engineering, 4th ed. (Prentice Hall, 2005).
