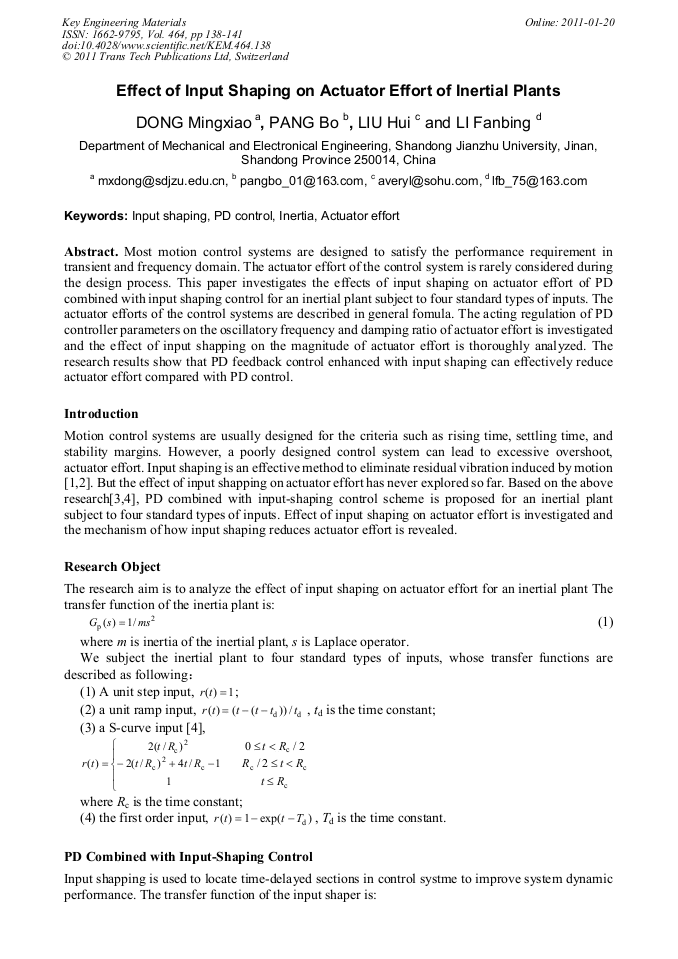

Effect of Input Shaping on Actuator Effort of Inertial Plants

Abstract:

Most motion control systems are designed to satisfy the performance requirement in transient and frequency domain. The actuator effort of the control system is rarely considered during the design process. This paper investigates the effects of input shaping on actuator effort of PD combined with input shaping control for an inertial plant subject to four standard types of inputs. The actuator efforts of the control systems are described in general fomula. The acting regulation of PD controller parameters on the oscillatory frequency and damping ratio of actuator effort is investigated and the effect of input shapping on the magnitude of actuator effort is thoroughly analyzed. The research results show that PD feedback control enhanced with input shaping can effectively reduce actuator effort compared with PD control.

• Periodical: Key Engineering Materials (Volume 464)
• Pages: 138-141
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.464.138
• Online since: January 2011
• Authors: Ming Xiao Dong, Bo Pang, Hui Liu, Fan Bing Li
• Keywords: Actuator Effort, Inertia, Input Shaping, PD Control

References

[1] L. Pao and C. La-orpacharapan: Journal of Dynamic Systems, Measurement, and Control, vol. 126 (2004), p.173–186.

[2] J. W. Huey and W. Singhose, Concurrent Design of Input Shaping and PD Feedback Control for an Inertia Submitted to Elsevier, 16 Sept(2007).

[3] J. R. Huey, K. L. Sorensen and W. Singhose, Useful Applications of Closed-Loop Signal Shaping Congtrollers, Preprint submitted to Control Engineering Practice(2008).

DOI: 10.1016/j.conengprac.2007.09.004

[4] W. Singhose, R. Eloundou and J. Lawrence, Input Shaping and Command Smoothing, Submitted to ASME JDSMC(2007).
