Design of a New System for Testing the Resistance of Keys of Keyboard

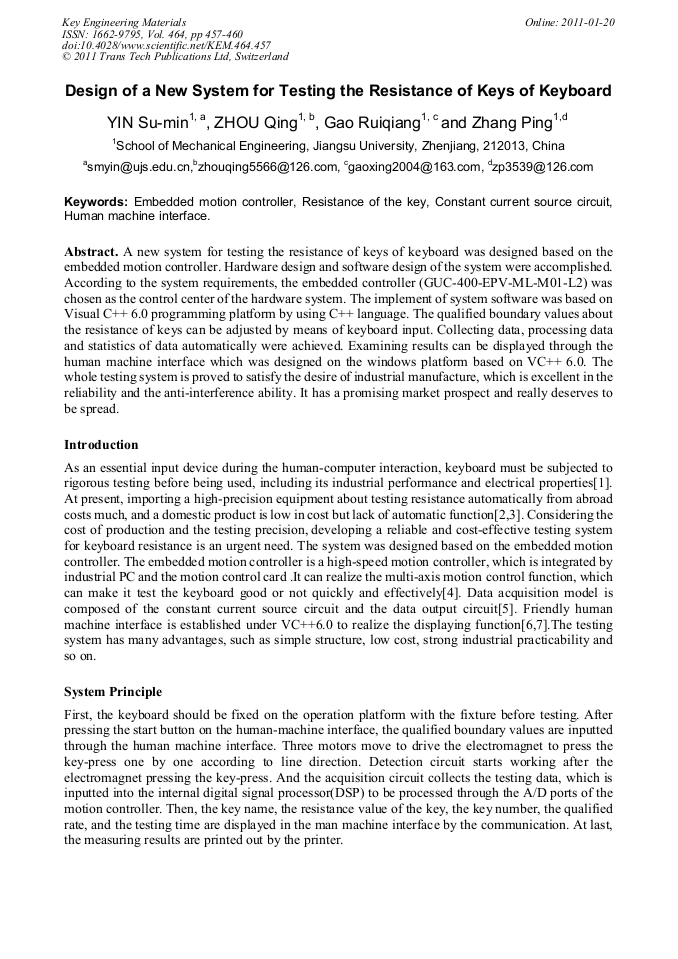

Article Preview

Abstract:

A new system for testing the resistance of keys of keyboard was designed based on the embedded motion controller. Hardware design and software design of the system were accomplished. According to the system requirements, the embedded controller (GUC-400-EPV-ML-M01-L2) was chosen as the control center of the hardware system. The implement of system software was based on Visual C++ 6.0 programming platform by using C++ language. The qualified boundary values about the resistance of keys can be adjusted by means of keyboard input. Collecting data, processing data and statistics of data automatically were achieved. Examining results can be displayed through the human machine interface which was designed on the windows platform based on VC++ 6.0. The whole testing system is proved to satisfy the desire of industrial manufacture, which is excellent in the reliability and the anti-interference ability. It has a promising market prospect and really deserves to be spread.

You might also be interested in these eBooks
Functional Manufacturing Technologies and Ceeusro II View Preview

Info:

Periodical:

Key Engineering Materials (Volume 464)

Pages:

457-460

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.464.457

Citation:

Cite this paper

Online since:

January 2011

Authors:

Su Min Yin, Qing Zhou, Rui Qiang Gao, Ping Zhang

Keywords:

Constant Current Source Circuit, Embedded Motion Controller, Human Machine Interface, Resistance of the Key

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] Frohliche P: Real Time Magazine Vol. 4(1997), pp.67-70.

Google Scholar

[2] YANG Jingxiang, China. Patent 200520040144. 6. (2005).

Google Scholar

[3] WANG Yingguang, Ke Li, China. Patent 200620013680. 1. (2006).

Google Scholar

[4] Information on http: /www. googoltech. com. cn.

Google Scholar

[5] TONG Shibai, in: Basic analog electronic technology, edited by Higher Education Press of China, Beijing, China (2001), in press.

Google Scholar

[6] E. David, in: An Embedded software Primer, edited by China Machine Press , Beijing, China (2005), in press.

Google Scholar

[7] SUN Xin, in: Deeper understanding of VC++, edited by Publishing House of Electronics Industry of China, Beijing, China (2006), in press.

Google Scholar

[8] ZHAI Yuwen, Ai Xuezhong and Yang Xiao: Electronic Measurement Technology Vol. 5(2002), p.25.

Google Scholar
