Study on the Flow Behavior in Thin Cavity during Water-Assisted Injection Molding

Abstract:

A numerical simulation model for the flow behavior of fluids in thin cavity during water assisted injection molding process is built up by adopting general Newtonian fluid model for the filling stage and non-Newtonian and compressible fluid model for the packing stage separately. Finite element/finite difference/control volume methods are adopted for the simulation of melt front, pressure variation at injection location, water thickness fraction and bulk temperature about a plate with trapezoidal cross-section. The simulated melt front location and shape have good agreement with experimental result. In comparison with the simulation results of conventional injection molding, it turns out that water assisted injection molding can obtain parts with low pressure requirement, perfect surface quality and rapid cooling.

You might also be interested in these eBooks

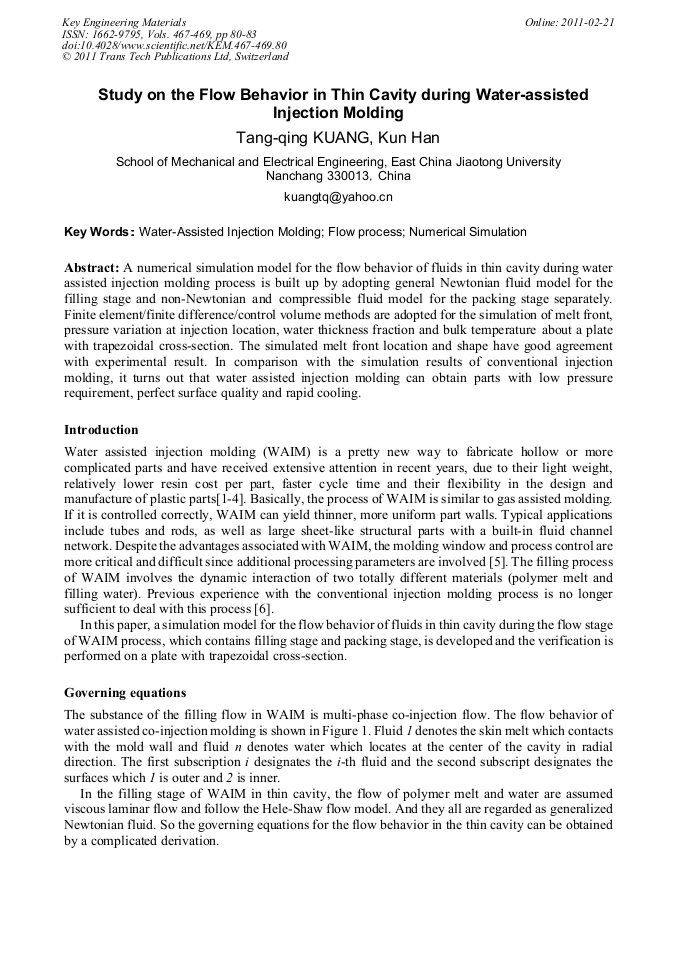

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 467-469)

Pages:

80-83

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.467-469.80

Citation:

Cite this paper

Online since:

February 2011

Authors:

Tang Qing Kuang, Kun Han

Keywords:

Flow Process, Numerical Simulation, Water-Assisted Injection Molding

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Mikell Knights: Plastics Technology, Vol. 48 (2002), No. 4, p.42~47.

Google Scholar

[2] Shih-Jung Liu，Yen-Shou Chen. Composites 2005, 35, 171-180.

Google Scholar

[3] Shih-Jung Liu, Yen-Shou Chen.: Polymer Engineering and Science, 2003, 43(11), 1806-1817.

Google Scholar

[4] S. -J. Liu, W. －K.: Plastics, Rubbers and Composites, 2004, 6, 32-35.

Google Scholar

[5] S.J. Liu, Y.C. Wu: Polymer Testing, Vol. 26 (2007), pp.232-242.

Google Scholar

[6] Polynkin A. ，Bai L. ，Pittman J.F.T. et al.: Plastics, Rubber and Composites, 2008，37（2/3/4), 131-141.

Google Scholar

[7] C.A. Hieber and S. F Shen: J. Non-Newtonian Fluid Mech., 1980(7), 1-32.

Google Scholar

[8] R.Y. Chang, C.T. Huang, W.H. Yang and etc.: Proceedings of the 62nd Annual Technical Conference of SPE (Chicago, USA, May 16-20, 2004), 2004, pp.566-569.

Google Scholar
