Effects of Direct Current and Pulse Electrodeposition Parameters on the Properties of Nano Cobalt Coatings

Saeed Reza Allahkaram; N. Towhid; M. Siadat Cheraghi

doi:10.4028/www.scientific.net/KEM.471-472.1010

Paper Titles

Effect of Stitching Density of Nonwoven Fiber Mat towards Mechanical Properties of Kenaf Reinforced Epoxy Composites Produced by Resin Transfer Moulding (RTM)
p.987

Synthesis of TiO₂/Zno Core/Shell Type Nanocomposite via Sol-Gel Method
p.993

Life Cycle Assessment of Particulate Recycled Low Density Polyethylene and Recycled Polypropylene Reinforced with Talc and Fiberglass
p.999

Differential Cubature Method for Static Solution of Laminated Shells of Revolution with Mixed Boundary Conditions
p.1005

Effects of Direct Current and Pulse Electrodeposition Parameters on the Properties of Nano Cobalt Coatings
p.1010

Vibration of Nonlocal Euler Beams Using Chebyshev Polynomials
p.1016

An Investigation on Relative Post-Buckling Stiffness Variations of Symmetrically Cross-Ply Laminates
p.1022

A Preliminary Study on Translational Kinetic Energy Absorption Using Coconut-Fiber (Coir) Sheets as a Potential Impact-Worthy Constituent in Advanced Aerospace Material
p.1028

Sugar Palm Fibre-Reinforced Unsaturated Polyester Composite Interface Characterisation by Pull-Out Test
p.1034

HomeKey Engineering MaterialsKey Engineering Materials Vols. 471-472Effects of Direct Current and Pulse...

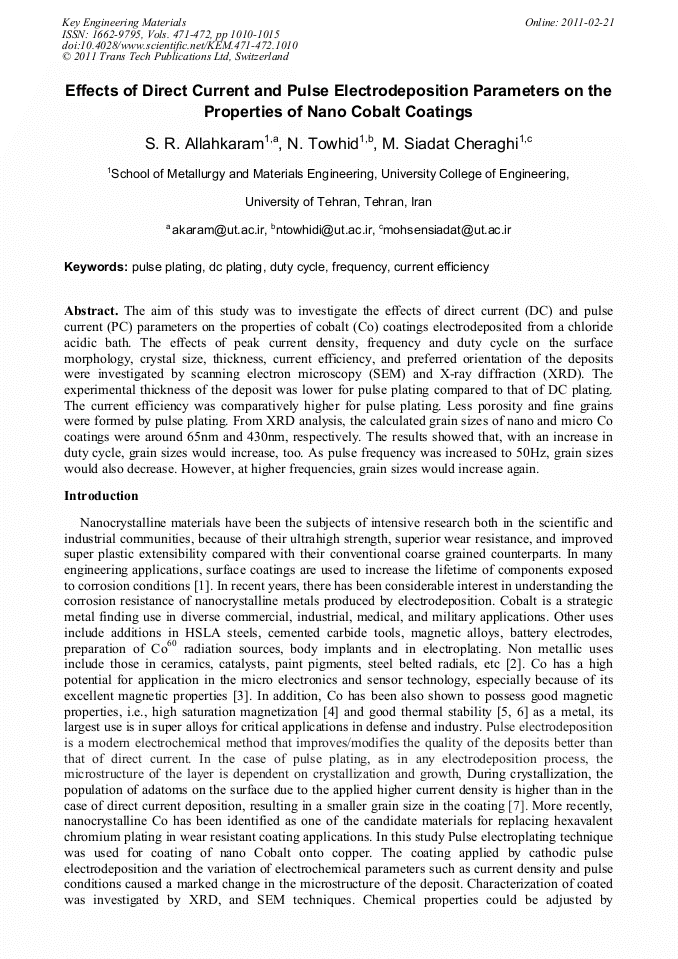

Effects of Direct Current and Pulse Electrodeposition Parameters on the Properties of Nano Cobalt Coatings

Abstract:

The aim of this study was to investigate the effects of direct current (DC) and pulse current (PC) parameters on the properties of cobalt (Co) coatings electrodeposited from a chloride acidic bath. The effects of peak current density, frequency and duty cycle on the surface morphology, crystal size, thickness, current efficiency, and preferred orientation of the deposits were investigated by scanning electron microscopy (SEM) and X-ray diffraction (XRD). The experimental thickness of the deposit was lower for pulse plating compared to that of DC plating. The current efficiency was comparatively higher for pulse plating. Less porosity and fine grains were formed by pulse plating. From XRD analysis, the calculated grain sizes of nano and micro Co coatings were around 65nm and 430nm, respectively. The results showed that, with an increase in duty cycle, grain sizes would increase, too. As pulse frequency was increased to 50Hz, grain sizes would also decrease. However, at higher frequencies, grain sizes would increase again.
