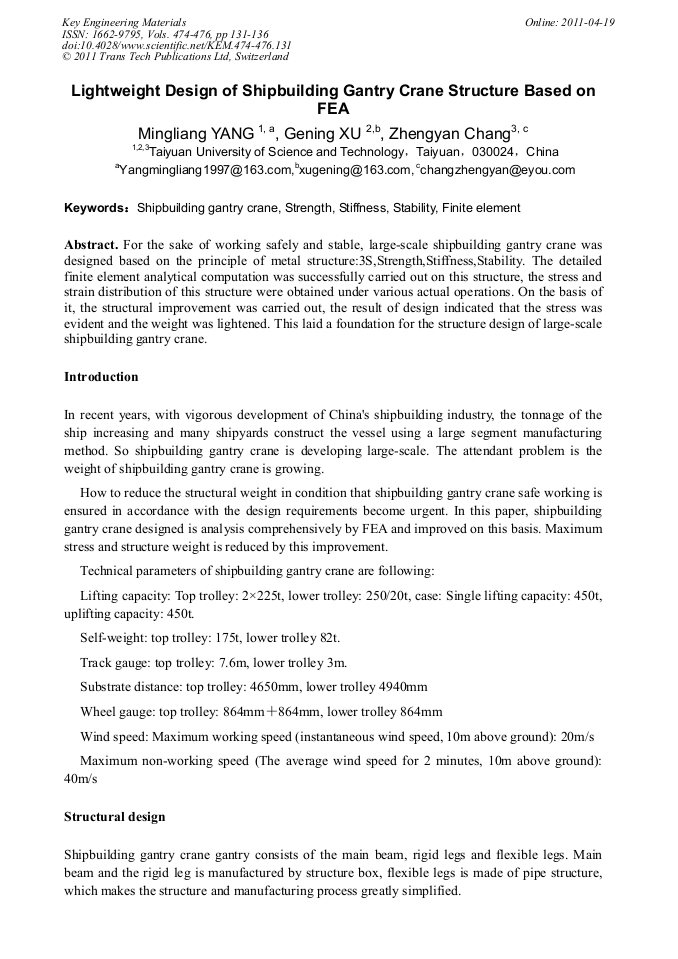

Lightweight Design of Shipbuilding Gantry Crane Structure Based on FEA

Abstract:

For the sake of working safely and stable, large-scale shipbuilding gantry crane was designed based on the principle of metal structure:3S,Strength,Stiffness,Stability. The detailed finite element analytical computation was successfully carried out on this structure, the stress and strain distribution of this structure were obtained under various actual operations. On the basis of it, the structural improvement was carried out, the result of design indicated that the stress was evident and the weight was lightened. This laid a foundation for the structure design of large-scale shipbuilding gantry crane.

• Periodical: Key Engineering Materials (Volumes 474-476)
• Pages: 131-136
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.474-476.131
• Online since: April 2011
• Authors: Ming Liang Yang, Ge Ning Xu, Zheng Yan Chang
• Keywords: Finite Element, Shipbuilding Gantry Crane, Stability, Stiffness, Strength

References

[1] XU Gening. Metal structure design of mechanical equipments [M]. Beijing: China machine press, (2009).

[2] MENG Qinglong. On how to make the flexible hinge for large-scale portal crane for shipbuilding in China [J]. Hoisting and Conveying Machinery, 2009(12).

[3] XIAO Haijiang. The Application of Gantry Anti-deflection Technology for Shipbuilding Gantry Crane [J].

[4] GB/T3811-2008[S]. Beijing: Standards press of china, (2008).

[5] ZHANG Zhiwen. Crane design manual [M]. Beijing: China Railway Publishing House, 1998. design rules for crane.
