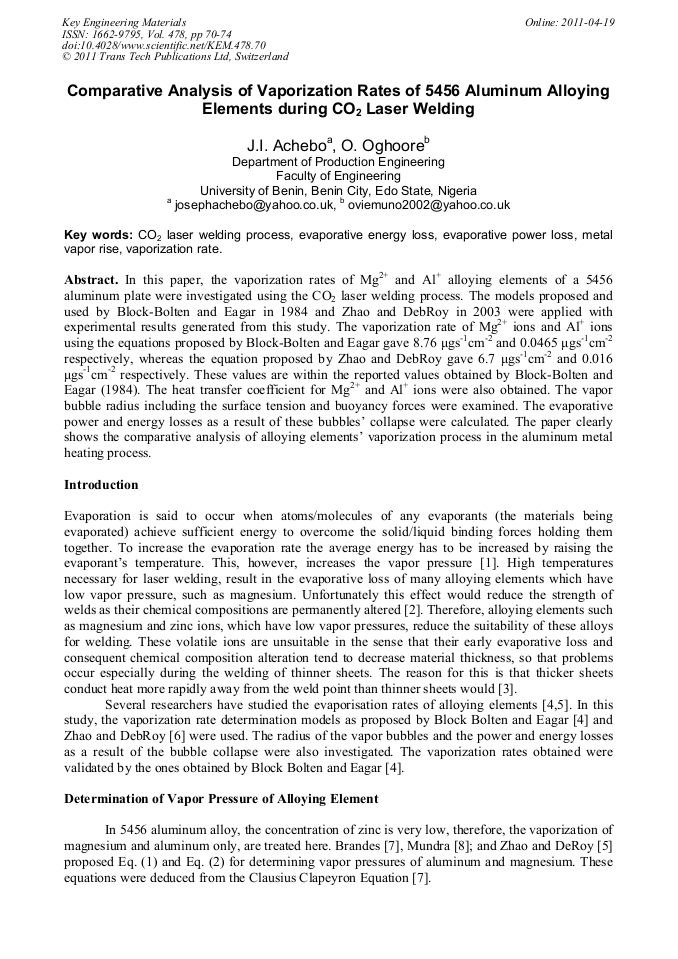

Comparative Analysis of Vaporization Rates of 5456 Aluminum Alloying Elements during CO2 Laser Welding
In this paper, the vaporization rates of Mg2+ and Al+ alloying elements of a 5456 aluminum plate were investigated using the CO2 laser welding process. The models proposed and used by Block-Bolten and Eagar in 1984 and Zhao and DebRoy in 2003 were applied with experimental results generated from this study. The vaporization rate of Mg2+ ions and Al+ ions using the equations proposed by Block-Bolten and Eagar gave 8.76 μgs-1cm-2 and 0.0465 μgs-1cm-2 respectively, whereas the equation proposed by Zhao and DebRoy gave 6.7 μgs-1cm-2 and 0.016 μgs-1cm-2 respectively. These values are within the reported values obtained by Block-Bolten and Eagar (1984). The heat transfer coefficient for Mg2+ and Al+ ions were also obtained. The vapor bubble radius including the surface tension and buoyancy forces were examined. The evaporative power and energy losses as a result of these bubbles’ collapse were calculated. The paper clearly shows the comparative analysis of alloying elements’ vaporization process in the aluminum metal heating process.
Andreas Öchsner, Lucas F.M. da Silva and Holm Altenbach
J. I. Achebo and O. Oghoore, "Comparative Analysis of Vaporization Rates of 5456 Aluminum Alloying Elements during CO2 Laser Welding", Key Engineering Materials, Vol. 478, pp. 70-74, 2011
