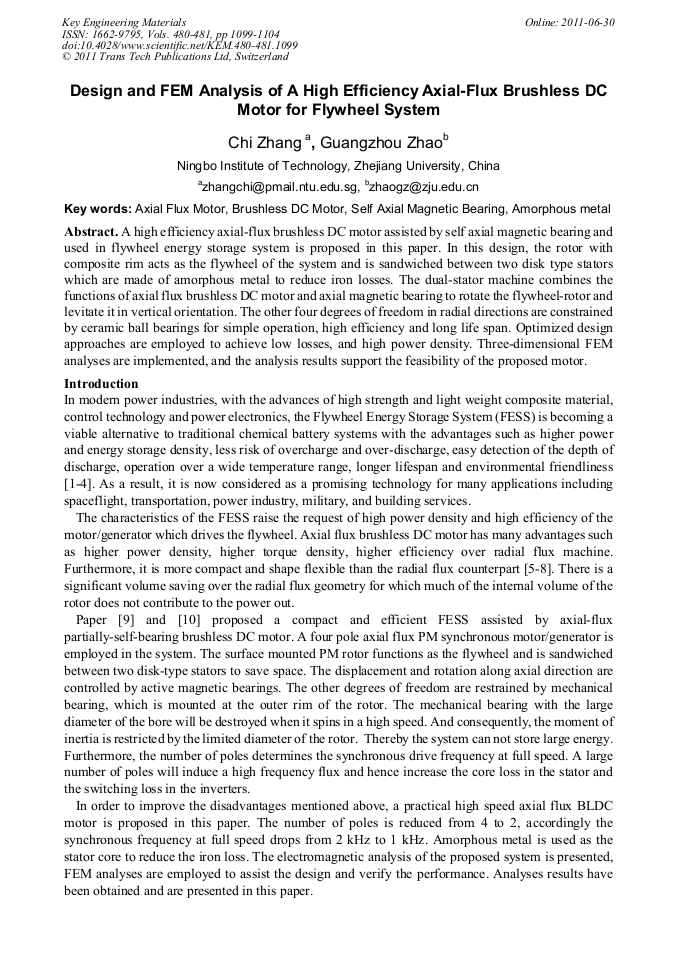

Design and FEM Analysis of a High Efficiency Axial-Flux Brushless DC Motor for Flywheel System

Abstract:

A high efficiency axial-flux brushless DC motor assisted by self axial magnetic bearing and used in flywheel energy storage system is proposed in this paper. In this design, the rotor with composite rim acts as the flywheel of the system and is sandwiched between two disk type stators which are made of amorphous metal to reduce iron losses. The dual-stator machine combines the functions of axial flux brushless DC motor and axial magnetic bearing to rotate the flywheel-rotor and levitate it in vertical orientation. The other four degrees of freedom in radial directions are constrained by ceramic ball bearings for simple operation, high efficiency and long life span. Optimized design approaches are employed to achieve low losses, and high power density. Three-dimensional FEM analyses are implemented, and the analysis results support the feasibility of the proposed motor.

• Periodical: Key Engineering Materials (Volumes 480-481)
• Pages: 1099-1104
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.480-481.1099
• Online since: June 2011
• Authors: Chi Zhang, Guang Zhou Zhao
• Keywords: Amorphous Metal, Axial Flux Motor, Blushless DC Motor, Self Axial Magnetic Bearing

References

[1] R. Beach and D.A. Christopher, Flywheel technology development program for aerospace applications, IEEE Aerosp. Electron. Syst. Mag., Vol. 13, pp.9-14, Jun. (1998).

DOI: 10.1109/62.683723

[2] J.G. Bitterly, Flywheel technology: past, present, and 21st century projections, IEEE Aerosp. Electron. Syst. Mag., Vol. 13, pp.13-16, Aug (1998).

DOI: 10.1109/62.707557

[3] J. Beno, R. Hebner and A. Walls, Flywheel batteries come around again, IEEE Spectr., Vol. 39, pp.46-51, Apr. (2002).

DOI: 10.1109/6.993788

[4] S. Ginter, G. Gisler, J. Hanks, D. Havenhill, W. Robinson and L. Spina, Spacecraft energy storage systems, IEEE Aerosp. Electron. Syst. Mag., Vol. 13, pp.27-32, May. (1998).

DOI: 10.1109/62.673739

[5] K. Sitapati and R. Krisshnan, Performance comparisons of radial and axial field, permanent-magnet, brushless machines, IEEE Trans. Ind. Applicat. Vol. 37, pp.1219-1226, Sep. /Oct. (2001).

DOI: 10.1109/28.952495

[6] D. Platt, Permanent magnet synchronous motor with axial flux geometry, IEEE Trans. Magn., Vol. 25, pp.3076-3079, Jul. (1989).

DOI: 10.1109/20.34374

[7] Y. P. Yang, Y. P. Luh and C. H. Cheung, Design and control of axial-flux brushless DC wheel motors for electric vehicles, IEEE Trans. Magn., Vol. 40, pp.1873-1891, Jul. (2004).

DOI: 10.1109/tmag.2004.828164

[8] S. C. Oh and A. Emadi, Test and simulation of axial flux-motor characteristics for hybrid electric vehicles, IEEE Trans. Veh. Technol. Vol. 53, pp: 912 – 919, May. (2004).

DOI: 10.1109/tvt.2004.827165

[9] C. Zhang, K. J. Tseng, Y. Xiao and K. Y. Zhu, Model-Based Predictive Control for a Compact and Efficient Flywheel Energy Storage System with Magnetically Assisted Bearings, in Proc. 35th IEEE Power Electronics Specialists Conf, Aachen, Germany, Jun. (2004).

DOI: 10.1109/pesc.2004.1355107

[10] C. Zhang and K. J. Tseng, A novel flywheel energy storage system with partially-self-bearing flywheel-rotor, IEEE Transactions on Energy Conversion, vol. 22, pp.477-487, Jun. (2007).

DOI: 10.1109/tec.2005.858088
