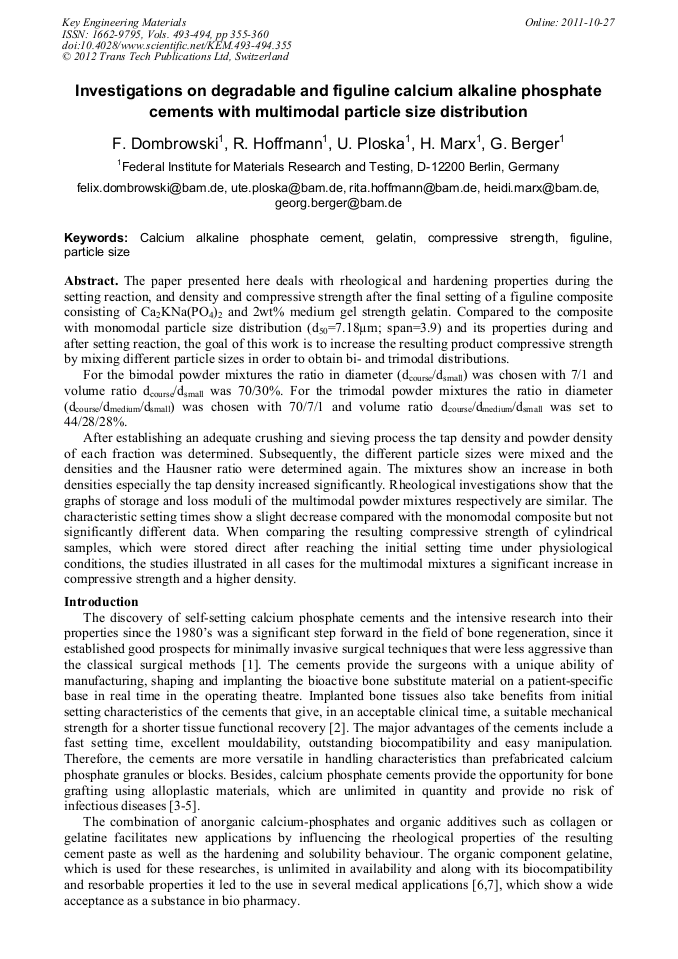

Investigations on Degradable and Figuline Calcium Alkaline Phosphate Cements with Multimodal Particle Size Distribution

Abstract:

The paper presented here deals with rheological and hardening properties during the setting reaction, and density and compressive strength after the final setting of a figuline composite consisting of Ca₂KNa(PO₄)₂ and 2wt% medium gel strength gelatin. Compared to the composite with monomodal particle size distribution (d₅₀=7.18µm; span=3.9) and its properties during and after setting reaction, the goal of this work is to increase the resulting product compressive strength by mixing different particle sizes in order to obtain bi- and trimodal distributions. For the bimodal powder mixtures the ratio in diameter (d_course/d_small) was chosen with 7/1 and volume ratio d_course/d_small was 70/30%. For the trimodal powder mixtures the ratio in diameter (d_course/d_medium/d_small) was chosen with 70/7/1 and volume ratio d_course/d_medium/d_small was set to 44/28/28%.After establishing an adequate crushing and sieving process the tap density and powder density of each fraction was determined. Subsequently, the different particle sizes were mixed and the densities and the Hausner ratio were determined again. The mixtures show an increase in both densities especially the tap density increased significantly. Rheological investigations show that the graphs of storage and loss moduli of the multimodal powder mixtures respectively are similar. The characteristic setting times show a slight decrease compared with the monomodal composite but not significantly different data. When comparing the resulting compressive strength of cylindrical samples, which were stored direct after reaching the initial setting time under physiological conditions, the studies illustrated in all cases for the multimodal mixtures a significant increase in compressive strength and a higher density.

• Periodical: Key Engineering Materials (Volumes 493-494)
• Pages: 355-360
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.493-494.355
• Online since: October 2011
• Authors: F. Dombrowski, R. Hoffmann, Ute Ploska, Heidi Marx, Georg Berger
• Keywords: Calcium Alkaline Phosphate Cement, Compressive Strength, Figuline, Gelatin, Particle Size

References

[1] M. Bohner, U. Gbureck, J.E. Barralet; Biomaterials (2005), 26, 6423-6429.

[2] S.V. Dorozhkin; Materials (2009), 2, pp.221-291.

[3] M. Ikenaga, P. Hardouin, J. Lemaître, H. Andrianjatovo, B. Flautre; J. Biomed. Mater. Res. (1998), 40, pp.139-144.

[4] M.P. Ginebra, T. Traykova, J.A. Planell; Biomaterials (2006), 27, pp.2171-2177.

[5] M.P. Ginebra, T. Traykova, J.A. Planell; J. Control. Rel. (2006), 113, pp.102-110.

[6] E. Esposito, R. Cortesi, C. Nastruzzi; Biomaterials Vol. 17 (1996), p.2009-(2020).

[7] Y. Fujishiro, K. Takahashi, T. Sato; J. Biomed. Mater. Res. (2001), 54, pp.525-530.

[8] K. Karlsson, L. Spring; Journal of material sciences 5 (1970), pp.340-344.

[9] D. Jörn, R. Gildenhaar, G. Berger, M. Stiller, C. Knabe; KEM (2009), Vols. 396-398, pp.213-216.

DOI: 10.4028/www.scientific.net/kem.396-398.213

[10] C. Knabe, A. Houshmand, G. Berger, P. Ducheyne, R. Gildenhaar, I. Kranz, M. Stiller; J. Biomed. Mater. Res. (2008), 84A(4), pp.856-868.

DOI: 10.1002/jbm.a.31383

[11] F. Dombrowski, U. Ploska, R. Gildenhaar, M. Stiller, C. Knabe, G. Berger; 22nd International symposium on ceramics in medicine (Bioceramics 22); pp.863-866.

[12] B.R. Shah, M.A. Tawakkul, M.A. Khan; AAPS PharmSciTech. (2008), March; 9(1): p.250–258.

[13] H. Guo, J. Wei, C.S. Liu; Biomed. Mater. 1 (2006), p.193–197.
