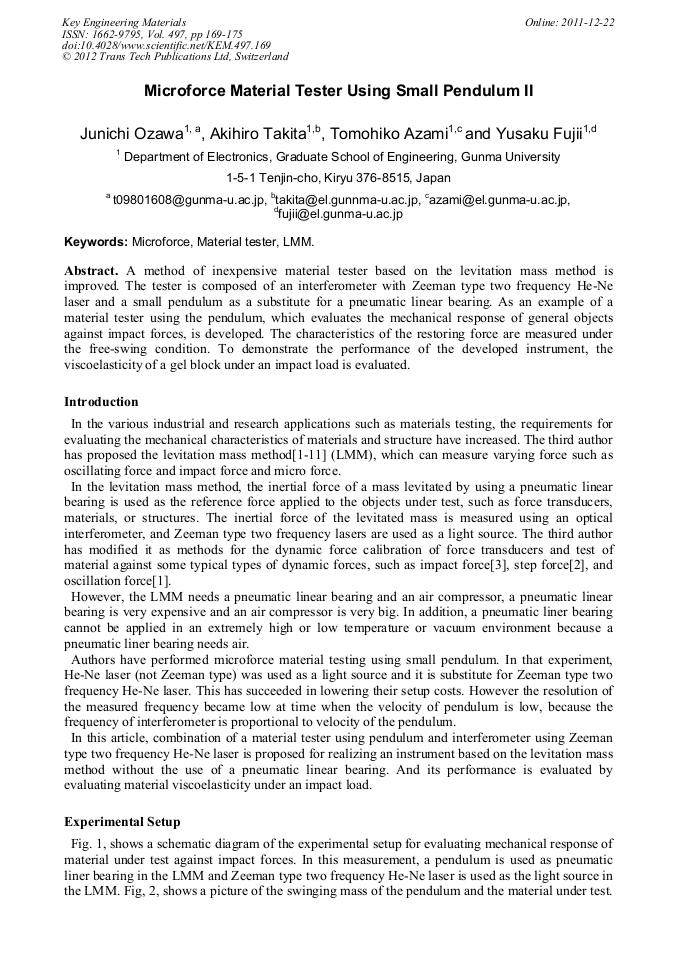

Microforce Material Tester Using Small Pendulum II

Abstract:

A method of inexpensive material tester based on the levitation mass method is improved. The tester is composed of an interferometer with Zeeman type two frequency He-Ne laser and a small pendulum as a substitute for a pneumatic linear bearing. As an example of a material tester using the pendulum, which evaluates the mechanical response of general objects against impact forces, is developed. The characteristics of the restoring force are measured under the free-swing condition. To demonstrate the performance of the developed instrument, the viscoelasticity of a gel block under an impact load is evaluated.

• Periodical: Key Engineering Materials (Volume 497)
• Pages: 169-175
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.497.169
• Online since: December 2011
• Authors: Junichi Ozawa, Akihiro Takita, Tomohiko Azami, Yusaku Fujii
• Keywords: LMM, Material Tester, Microforce

References

[1] Y. Fujii: A method for calibrating force transducers against oscillation force, Meas. Sci. Technol., 14, (2003), 1259-1264.

DOI: 10.1088/0957-0233/14/8/310

[2] Y. Fujii: Proposal for a step response evaluation method for force transducers, Meas. Sci. Technol., 14, (2003), 1741-1746.

DOI: 10.1088/0957-0233/14/10/301

[3] Y. Fujii: Measurement of the electrical and mechanical responses of a force transducer against impact forces, Rev. Sci. Instrum., 77, (2006), 085108-1-5.

DOI: 10.1063/1.2745997

[4] Y. Fujii and J.P. Hessling, Frequency estimation method from digitized waveform, Experimental Techniques, Vol. 33, No. 5, (2009), 64-69.

DOI: 10.1111/j.1747-1567.2008.00421.x

[5] Y. Fujii, Toward establishing dynamic calibration method for force transducers, IEEE Trans. Instrum. Meas., Vol. 58, No. 7, (2009), 2358-2364.

DOI: 10.1109/tim.2009.2014614

[6] Y. Fujii, K. Shimada and K. Maru, Instrument for Measuring the Body Mass of Astronauts under Microgravity Conditions, Microgravity Science and Technology Vol. 22, No. 1, (2010), 115-121.

DOI: 10.1007/s12217-009-9161-5

[7] Y. Fujii and K. Maru, Self-Correction Method for Dynamic Measurement Error of Force Sensors, Experimental Techniques, (in press).

DOI: 10.1111/j.1747-1567.2009.00594.x

[8] K. Maru and Y. Fujii, Wavelength-insensitive laser Doppler velocimeter using beam position shift induced by Mach-Zehnder interferometers, Optics Express, Vol. 17, No. 20, (2009), 17441-17449.

DOI: 10.1364/oe.17.017441

[9] K. Maru and Y. Fujii, Integrated wavelength-insensitive differential laser Doppler velocimeter using planar lightwave circuit, Journal of Lightwave Technology, Vol. 27, Issue 22, (2009), 5078-5083.

DOI: 10.1109/jlt.2009.2027214

[10] K. Maru and Y. Fujii, Reduction of chromatic dispersion due to coupling for synchronized-router-based flatpassband filter using multiple-input arrayed waveguide grating, Optics Express, Vol. 17, Issue 24, (2009), 22260-22270.

DOI: 10.1364/oe.17.022260

[11] Y. Fujii, P. Yupapin and N. Pornsuwancharoen, A proposal of a high resolution tunable laser source generation, Microwave and Optical Technology Letters, Vol. 52, (2010), No. 2.

DOI: 10.1002/mop.24903
