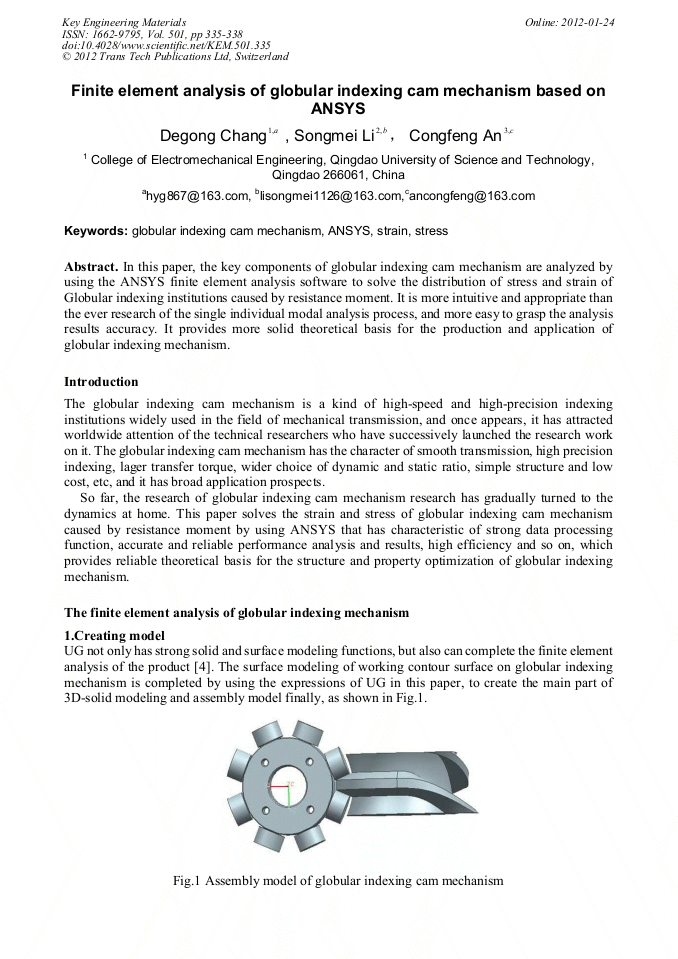

Finite Element Analysis of Globular Indexing Cam Mechanism Based on ANSYS

Abstract:

In this paper, the key components of globular indexing cam mechanism are analyzed by using the ANSYS finite element analysis software to solve the distribution of stress and strain of Globular indexing institutions caused by resistance moment. It is more intuitive and appropriate than the ever research of the single individual modal analysis process, and more easy to grasp the analysis results accuracy. It provides more solid theoretical basis for the production and application of globular indexing mechanism.

• Periodical: Key Engineering Materials (Volume 501)
• Pages: 335-338
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.501.335
• Online since: January 2012
• Authors: De Gong Chang, Song Mei Li, Cong Feng An
• Keywords: ANSYS, Globular Indexing Cam Mechanism, Strain, Stress
