Forming of Thermoplastic Composites

Abstract:

Design and production guidelines for UD reinforced thermoplastic composites are highly desirable. Therefore, forming experiments and simulations with a realistic complex shaped product were conducted. Thermoforming experiments with quasi-isotropic UD carbon/PEEK and 8HS woven glass/PPS composites showed a clear difference in formability. Many wrinkles develop near doubly curved areas for the considered UD composites, whereas significant in-plane shear is observed for the woven composites. Forming prediction tools can be utilised to optimise the product design with respect to formability. A forming prediction methodology is shown, which encompasses finite element modelling in combination with material models that describe major deformation mechanisms. Characterisation methods were developed to describe inter-ply friction and in-plane shear. Forming simulations are able to indicate the critical areas for the UD composites, as is concluded from the comparison of wrinkling and in-plane shear distributions within the formed specimens. Forming experiments and predictions match qualitatively well and this tool can successfully be utilised in the product design phases.

You might also be interested in these eBooks

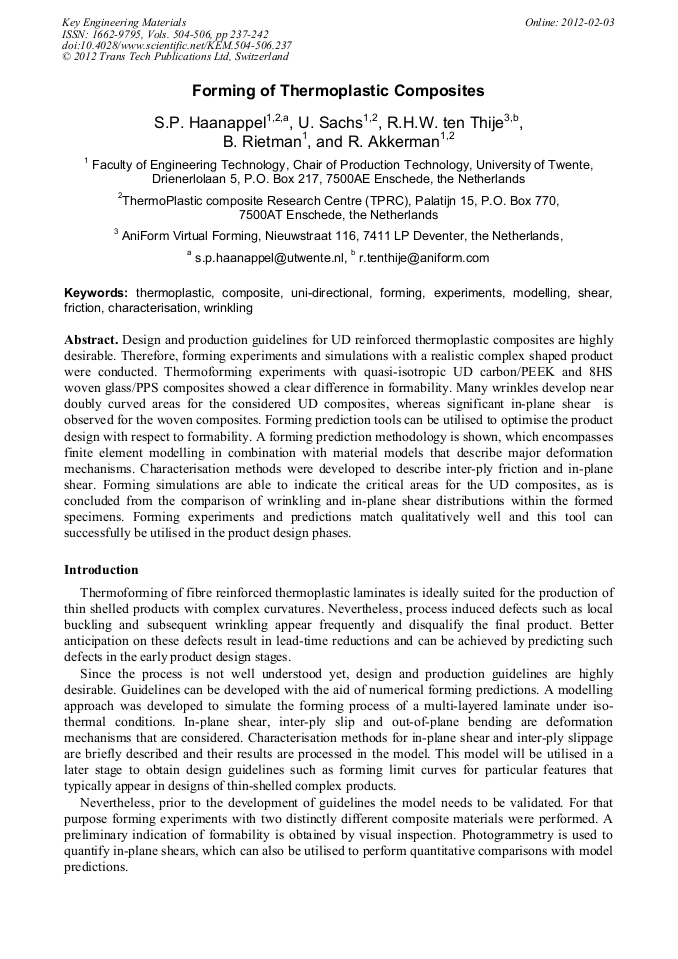

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 504-506)

Pages:

237-242

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.504-506.237

Citation:

Cite this paper

Online since:

February 2012

Authors:

Sebastiaan P. Haanappel, Ulrich Sachs, Rene H.W. ten Thije, Bert Rietman, Remko Akkerman

Keywords:

Characterization, Composite, Experiment, Forming, Modeling, Shear Friction, Thermoplastic, Uni-Directional, Wrinkling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S.P. Haanappel, R.H.W. ten Thije, R. Akkerman, Forming predictions of UD reinforced thermoplastic laminates, Proceedings of ECCM 14, Budapest, Hungary.

Google Scholar

[2] P. de Luca, P. Lefébure, A.K. Pickett, Numerical and experimental investigation of some press forming parameters of two fibre reinforced thermoplastics: APC2-AS4 and PEI-CETEX, Composites: Part A, 29A (1998), 101-110.

DOI: 10.1016/s1359-835x(97)00060-2

Google Scholar

[3] U. Sachs, S.P. Haanappel, B. Rietman, R. Akkerman, Friction testing of thermoplastic composites, Proceedings of SEICO 2011, Paris, France.

Google Scholar

[4] S.P. Haanappel, R.H.W. ten Thije, A.D. Rietman, R. Akkerman, In-plane shear characterisation of uni-directionally reinforced thermoplastic melts, Proceedings of Esaform 2011, Belfast, Ireland.

DOI: 10.1063/1.3589635

Google Scholar

[5] K. Potter, Bias extension measurements on cross-plied unidirectional prepreg, Composites: Part A, 33 (2002), 63-73.

DOI: 10.1016/s1359-835x(01)00057-4

Google Scholar
