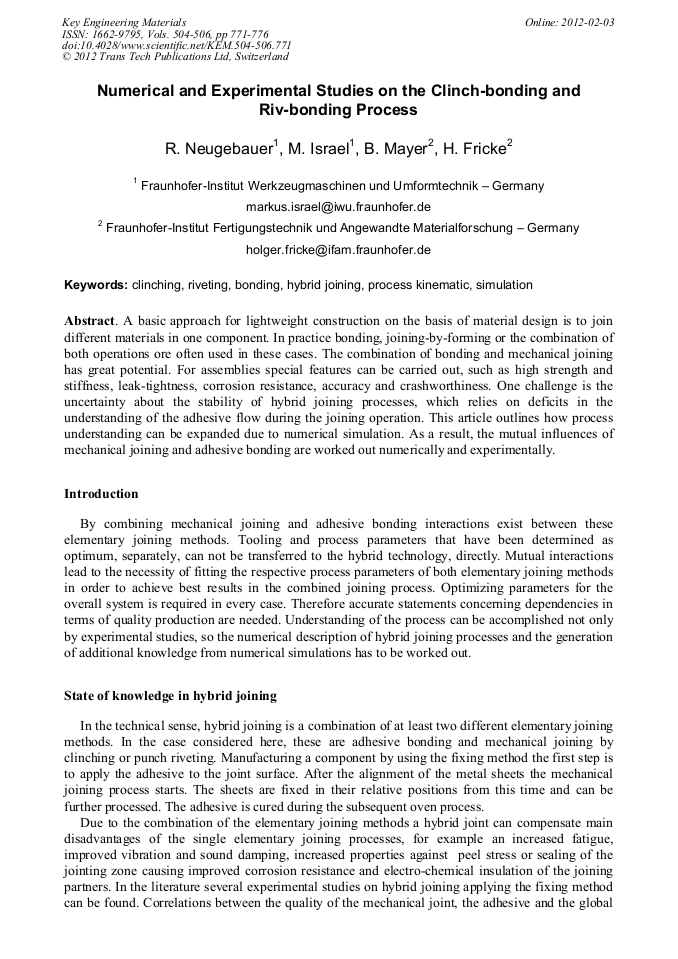

Numerical and Experimental Studies on the Clinch-Bonding and Riv-Bonding Process

Abstract:

A basic approach for lightweight construction on the basis of material design is to join different materials in one component. In practice bonding, joining-by-forming or the combination of both operations ore often used in these cases. The combination of bonding and mechanical joining has great potential. For assemblies, in automobile production for example, special features can be carried out, such as high strength and stiffness, leak-tightness, corrosion resistance, accuracy and crashworthiness. One challenge is the uncertainty about the stability of hybrid joining processes, which relies on deficits in the understanding of the adhesive flow during the joining operation. This article outlines how process understanding can be expanded due to numerical simulation. As a result, the mutual influences of mechanical joining and adhesive bonding are worked out numerically and experimentally.

• Periodical: Key Engineering Materials (Volumes 504-506)
• Pages: 771-776
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.504-506.771
• Online since: February 2012
• Authors: Reimund Neugebauer, Markus Israel, Bernd Mayer, Holger Fricke
• Keywords: Bonding, Clinching, Hybrid Joining, Process Kinematic, Riveting, Simulation

References

[1] O. Hahn, T. Draht, V. Thoms, F. Liebrecht, Entwicklung der kombinierten Fügetechnik für Hybridbauweisen am Beispiel Stanznieten-Kleben, Europäische Forschungsgesellschaft für Blechbearbeitung e.V., Forschungsbericht Nr. 180, Hannover, (2002)

[2] O. Hahn, T.-M. Wibbeke, Optimierung der Fertigungsparameter des Mechanischen Fügens für den Einsatz mit dem Kleben zum Verbinden dünner Bleche, Europäische Forschungsgesellschaft für Blechbearbeitung e.V., Forschungsbericht Nr. 216, Hannover, (2004)

[3] O. Hahn, Fixierung geklebter Mischbauverbindungen aus Aluminium in Kombination mit presshartem 22MuB5 mittels neuem Nietsystem, FOSTA Vorhaben VP 883, Paderborn, (2010)

DOI: 10.1002/stab.201770604

[4] X. He, A review of finite element analysis of adhesively bonded joints, in: International Journal of Adhesion and Adhesives, Volume 31, Issue 4, June 2011, pp.248-264

DOI: 10.1016/j.ijadhadh.2011.01.006

[5] T. Sadowski, M. Knec, P. Golewski, Experimental investigations and numerical modelling of steel adhesive joints reinforced by rivets, in: International Journal of Adhesion and Adhesives, Volume 30, Issue 5, Special Issue on Joint Design, July 2010, pp.338-346

DOI: 10.1016/j.ijadhadh.2009.11.004

[6] T. Sadowski, P. Golewski, E. Zarzeka-Raczkowska, Damage and failure processes of hybrid joints: Adhesive bonded aluminium plates reinforced by rivets, in: Computational Materials Science, Volume 50, Issue 4, Proceedings of the 19th International Workshop on Computational Mechanics of Materials - IWCMM 19, February 2011, pp.1256-1262

DOI: 10.1016/j.commatsci.2010.06.022

[7] R. Baesso, Numerical and experimental investigation of the polymer injection forming process, Dissertation, Università degli Studi di Padova, (2008)

[8] B.-A. Behrens, A. Bouguecha, T. Götze, Consideration of fundamental influence parameters for the simulation of sheet-metal forming processes by means of plastic melt pressure, in: Materialwissenschaft und Werkstofftechnik, Vol.41, WILEY-VCH, 2010, pp.839-843

DOI: 10.1002/mawe.201000671

[9] H. Fricke, M. Israel, Unterschiedliche Werkstoffe prozesssicher verbinden. Simulation von Hybridfügeprozessen, in: Adhäsion. Kleben und Dichten 55 (2011), Nr.7/8, 2011, pp.24-29

DOI: 10.1365/s35145-011-0044-8

[10] R. Neugebauer, B. Mayer, M. Israel, H. Fricke, Qualitätssicherung beim Hybridfügen, Europäische Forschungsgesellschaft für Blechbearbeitung e.V., Forschungsbericht Nr. 330, Hannover, (2011)
