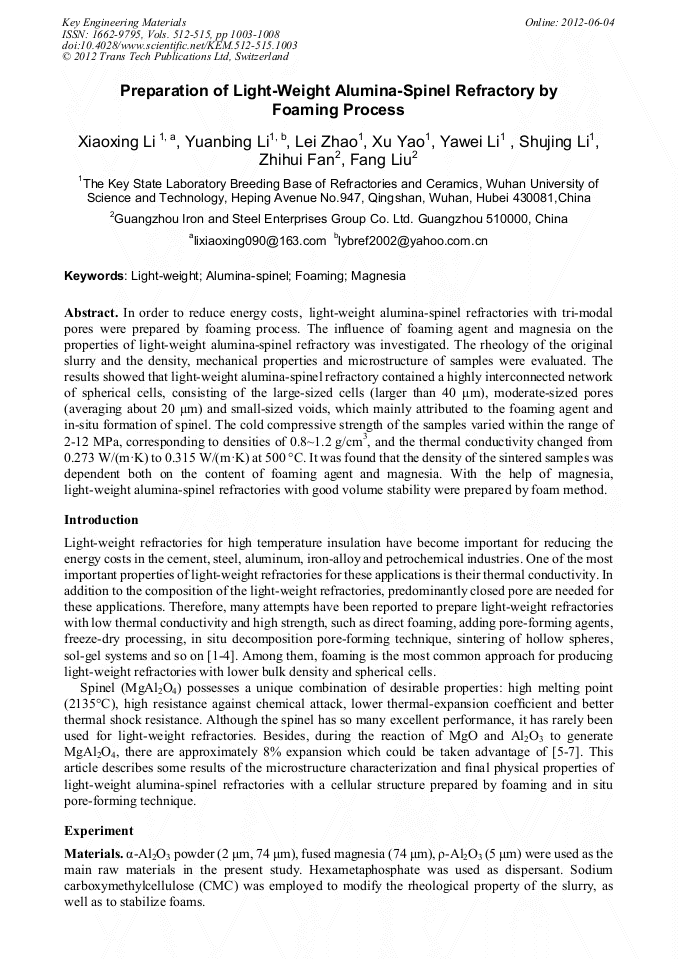

Preparation of Light-Weight Alumina-Spinel Refractory by Foaming Process

Abstract:

In order to reduce energy costs, light-weight alumina-spinel refractories with tri-modal pores were prepared by foaming process. The influence of foaming agent and magnesia on the properties of light-weight alumina-spinel refractory was investigated. The rheology of the original slurry and the density, mechanical properties and microstructure of samples were evaluated. The results showed that light-weight alumina-spinel refractory contained a highly interconnected network of spherical cells, consisting of the large-sized cells (larger than 40 um), moderate-sized pores( averaging about 20 um) and small-sized voids, which mainly attributed to the foaming agent and in-situ formation of spinel. The cold compressive strength of the samples varied within the range of 2-12MPa, corresponding to densities of 0.8~1.2g/cm3,and the thermal conductivity changed from 0.273W/(m•K) to 0.315 W/(m•K) at the 500 °C. It was found that the density of the sintered samples was dependent both on the content of foaming agent and magnesia. With the help of magnesia, light-weight alumina-spinel refractories with good volume stability were prepared by foam method.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1003-1008
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1003
• Online since: June 2012
• Authors: Xiao Xing Li, Yuan Bing Li, Lei Zhao, Xu Yao, Ya Wei Li, Shu Jing Li, Zhi Hui Fan, Fang Liu
• Keywords: Alumina-Spinel, Foaming, Light Weight, Magnesia

References

[1] X. He, X.G. Zhou, B. Su, 3D interconnective porous alumina ceramics via direct protein foaming, Materials Letters. 63 (2009) 830-832.

DOI: 10.1016/j.matlet.2008.12.021

[2] S.J. Li, N. Li, Y.W. Li, Processing and microstructure characterization of porous corundum-spinel ceramics prepared by in situ decomposition pore-forming technique, Ceram. Int. 34 (2008) 1241-1246.

DOI: 10.1016/j.ceramint.2007.03.018

[3] T. Fukasawa, M. Ando, T.Ohji, and S. Kanzaki, Synthesis of porous ceramics with complex pore structure by freeze-dry processing, J. Am. Ceram. Soc. 84 (2001) 230-232.

DOI: 10.1111/j.1151-2916.2001.tb00638.x

[4] J.P. Sepulveda, All properties of highly porous hydroxyapatite obtained by the gel-casting of foams, J. Am Ceram Soc. 83 (2000) 3021-3024.

[5] M. Sindel, N.A. Travitzky, et al., Influence of magnesium-aluminum spinel on the directed oxidation of molten aluminumalloys, J. Am. Ceram. Soc. 73 [9] (1990) 2615-2618.

DOI: 10.1111/j.1151-2916.1990.tb06736.x

[6] G. Baudin, R. Martinez, et al., High-temperature mechanical behavior of stoichiometric magnesium spinel, J. Am. Ceram. Soc. 78 [7] (1995) 1857-1862.

[7] J.G. Li, T. Ikegami, et al., A wet-chemical process yielding reactive magnesium aluminate spinel (MgAl2O4) powder, Ceram. Int. 27 (2001) 481-489.

DOI: 10.1016/s0272-8842(00)00107-3

[8] Studart AR, Gonzenbach UT, Tervoort E, Gauckler LJ, Processing routes to macroporous ceramics, J. Am. Ceram Soc. 89 [6] (2006) 1771-1789.

DOI: 10.1111/j.1551-2916.2006.01044.x

[9] P. Sepulveda, F.S. Ortega, M.D.M. Innocentini, C. Pandolfelli, Properties of highly porous hydroxyapatite obtained by the gelcasting of foams, J.Am. Ceram. Soc. 83 [12] (2000) 3021-3024.

DOI: 10.1111/j.1151-2916.2000.tb01677.x

[10] P. Colombo, J.R. Hellmann, D.L. Shelleman, Mechanical properties of silicon oxycarbide ceramic foams, J. Am. Ceram. Soc. 84 [10] (2001) 2245-2251.

DOI: 10.1111/j.1151-2916.2001.tb00996.x

[11] F.A.C. Oliveira, S. Dias, M.F. Vaz, J.C. Fernandes, Behaviour of open-cell cordierite foams under compression, J. Eur. Ceram. Soc. 26 [1-2] (2006) 179-186.

DOI: 10.1016/j.jeurceramsoc.2004.10.008
