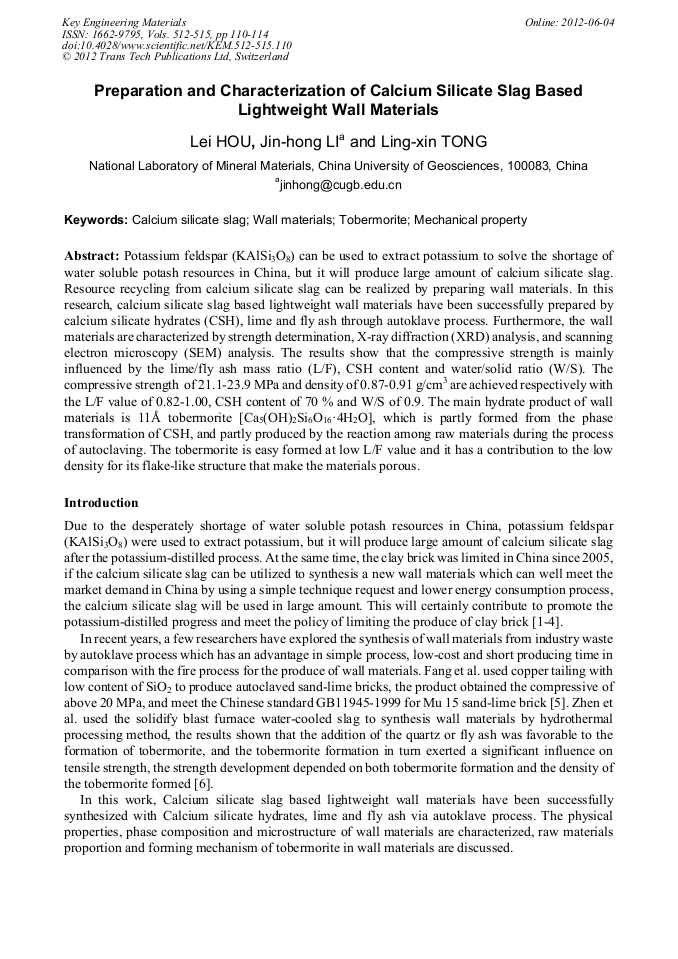

Preparation and Characterization of Calcium Silicate Slag Based Lightweight Wall Materials

Abstract:

Potassium feldspar (KAlSi₃O₈) can be used to extract potassium to solve the shortage of water soluble potash resources in China, but it will produce large amount of calcium silicate slag. Resource recycling from calcium silicate slag can be realized by synthesising wall materials. In this research， calcium silicate slag based lightweight wall materials have been successfully prepared by calcium silicate hydrates (CSH), lime and fly ash through autoklave process. Furthermore, the wall materials are charactered by strength determination, X-ray diffraction (XRD) analysis, and Scanning electron microscopy (SEM) analysis. The results show that the compressive strength is mainly influenced by the lime/fly ash mass ratio (L/F), CSH content and water/solid ratio (W/S). The compressive strength of 21.1-23.9 MPa and density of 0.87-0.91 g/cm³ are achieved respectively with the L/F value of 0.82-1.00, CSH content of 70 % and W/S of 0.9. The main hydrate product of wall materials is 11Å tobermorite [Ca₅(OH)₂Si₆O₁₆•4H₂O], which is partly formed from the phase transformation of CSH, and partly produced by the reaction among raw materials during the process of autoclaving. The tobermorite is easy formed at low L/F value and it has a contribution to the low density for its flake-like structure that make the materials porous.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 110-114
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.110
• Online since: June 2012
• Authors: Lei Hou, Jin Hong Li, Ling Xin Tong
• Keywords: Calcium Silicate Slag, Mechanical Property, Tobermorite, Wall Materials

References

[1] W. J. Wang, H. W. Ma, Z. M. Bai, Developments and prospects of extracting potash from insoluble potash ores, Geol. Sci. Tech. Inf. 15 (1996) 59-63

[2] W. W. Feng, H. W. Ma, Y. Y. Zhao, Preparation of light weight wall materials based on inflated pearlite form colloidal aluminosilicate waste residue, J. Chin. Ceram. Soc. 32 (2004) 1410-1417

[3] H. W. Ma, F. K. Ling, J. Yang, G Wang, Preparation of mineral polymer from potassium feldspar wastes: an experimental study, J. Earth. Science. 27 (2002) 576-583

[4] J. C. Xu, H. W. Ma, J. Yang, Preparation of β-wollastonite glass ceramics from potash feldspar tailings, J. Chin. Ceram. Soc. 31 (2003) 179-183

[5] Y. H. Fang, Y. M. Gu, Q. B. Kang, Q. Wen, P. Dai, Utilization of copper tailing for autoclaved sand-lime brick, Constr. Build. Mater. 25 (2011) 867-872

DOI: 10.1016/j.conbuildmat.2010.06.100

[6] Z. Z. Jing, F. Jin, T. Hashida, N. Yamasaki, Hydrothermal solidification of blast furnace slag by formation of tobermorite, J. Mater. Sci. 43 (2008) 8236-8241

DOI: 10.1007/s10853-007-1726-3

[7] H. Connan, D. Klimesch, A. Ray, P. Thomas, Thermal characterization of autoclaved cement made with alumina-silica rich industrial waste, J. Therm. Anal. Calorim. 84 (2006) 521-525

DOI: 10.1007/s10973-005-6674-z

[8] F. Matsushita, Y. Aono, S. Shibata, Calcium silicate structure and carbonation shrinkage of a tobermorite-based material, Cem. Concr. Res. 34 (2004) 1251-1257

DOI: 10.1016/j.cemconres.2003.12.016
