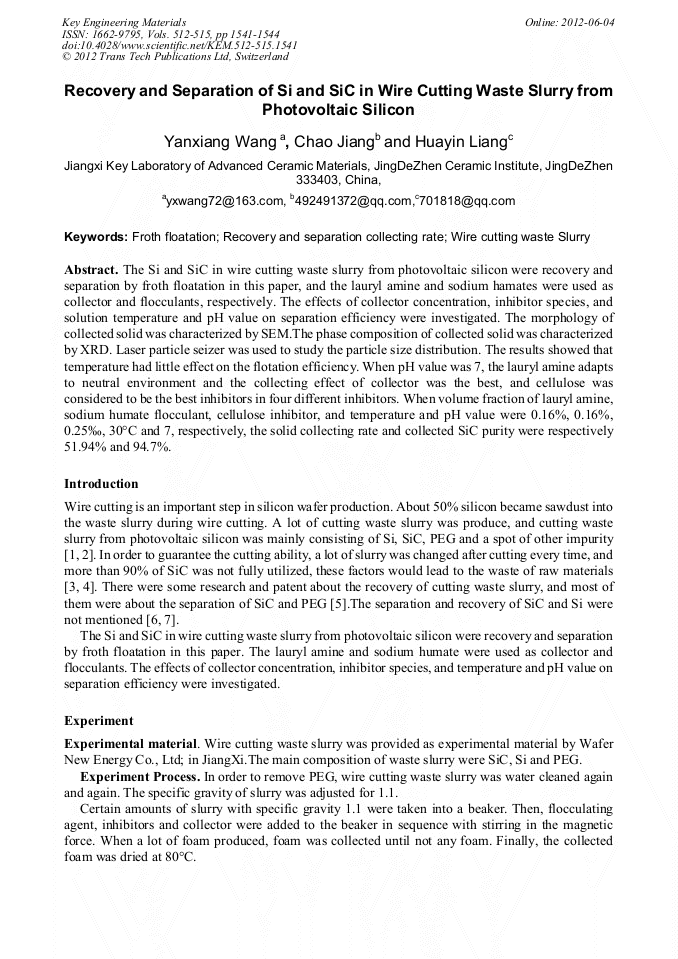

Recovery and Separation of Si and SiC in Wire Cutting Waste Slurry from Photovoltaic Silicon

Abstract:

Abstract. The Si and SiC in wire cutting waste slurry from photovoltaic silicon were recovery and separation by froth floatation in this paper, and the lauryl amine and sodium hamates were used as collector and flocculants, respectively. The effects of collector concentration, inhibitor species, and solution temperature and pH value on separation efficiency were investigated. The morphology of collected solid was characterized by SEM.The phase composition of collected solid was characterized by XRD. Laser particle seizer was used to study the particle size distribution. The results showed that temperature had little effect on the flotation efficiency. When pH value was 7, the lauryl amine adapts to neutral environment and the collecting effect of collector was the best, and cellulose was considered to be the best inhibitors in four different inhibitors. When volume fraction of lauryl amine, sodium humate flocculant, cellulose inhibitor, and temperature and pH value were 0.16%, 0.16%, 0.25‰, 30°C and 7, respectively, the solid collecting rate and collected SiC purity were respectively 51.94% and 94.7%.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1541-1544
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1541
• Online since: June 2012
• Authors: Yan Xiang Wang, Chao Jiang, Hua Yin Liang
• Keywords: Froth Floatation, Recovery Collecting Rate, Separation Collecting Rate, Wire Cutting Waste Slurry

References

[1] V.K. Kapur and U.V. Choudary, Recovery method of wafer cutting slurry: U.S. Patent 4, 388, 286. (1983).

[2] D.M.Xu, W.L. Tian and Y.D.Hu, et al.A method of obtained white carbon black and recovery of SiC from wire cutting waste slurry: C.N. Patent 101,691,217A. (2010).

[3] J.Chen and Y.L. Wang, Chemical recovery method of wire cutting waste slurry: C.N. Patent 101,623,898A. (2010).

[4] X.F.Xi and H.Song, Recovery method of SiC and PEG in waste slurry: C.N. Patent 101,474,511A. (2009).

[5] D.P. Yang and K.Zhou, Recovery method of waste slurry of wire cutting: C.N. Patent 101,513,753A. (2009).

[6] Y.H. Xiong and X.Q. Wei, et al.Froth flotation technology for separation of Si and SiC: C.N. Patent 101,491,888A. (2009).

[7] L.Zhou and P.B. Zhou, et al. The method of separation of interfacial tension of Si and SiC: C.N. Patent 101623852A. (2010).

[8] S.Z. Zhou and Z.Zhou, Recovery technology Single of crystal and polycrystalline silicon C.N. Patent 101327622A. (2008).
