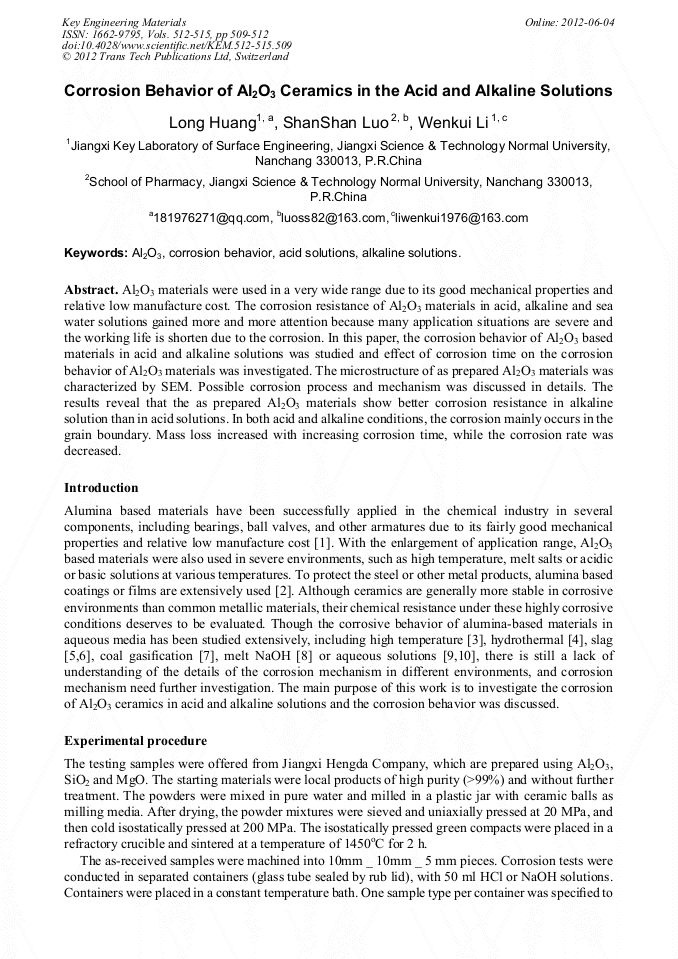

Corrosion Behavior of Al₂O₃ Ceramics in the Acid and Alkaline Solutions

Abstract:

Al₂O₃ materials were used in a very wide range due to its good mechanical properties and relative low manufacture cost. The corrosion resistance of Al₂O₃ materials in acid, alkaline and sea water solutions gained more and more attention because many application situations are severe and the working life is shorten due to the corrosion. In this paper, the corrosion behavior of Al₂O₃ based materials in acid and alkaline solutions was studied and effect of corrosion time on the corrosion behavior of Al₂O₃ materials was investigated. The microstructure of as prepared Al₂O₃ materials was characterized by SEM. Possible corrosion process and mechanism was discussed in details. The results reveal that the as prepared Al₂O₃ materials show better corrosion resistance in alkaline solution than in acid solutions. In both acid and alkaline conditions, the corrosion mainly occurs in the grain boundary. Mass loss increased with increasing corrosion time, while the corrosion rate was decreased.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 509-512
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.509
• Online since: June 2012
• Authors: Long Huang, Shan Shan Luo, Wen Kui Li
• Keywords: Acid Solutions, Al₂O₃, Alkaline Solutions, Corrosion Behavior

References

[1] W. H. Tuan & W. B. Chou, The corrosion behaviour of Al2O3 toughened by Ag particles. J. Euro.Ceram. Soc. 16, (1996) 583-586.

[2] A. Gergely,É. Pfeifer,. I Bertóti., T.Török, & E.Kálmán, Corrosion protection of cold-rolled steel by zinc-rich epoxy paint coatings loaded with nano-size alumina supported polypyrrole. Corrosion Science 53, (2011) 3486-3499.

DOI: 10.1016/j.corsci.2011.06.014

[3] M. G Lawson, F. S. Pettit & J. R. Blachere, Hot corrosion of alumina. J. Mater. Res. 8, , (1993).1964-1971

DOI: 10.1557/jmr.1993.1964

[4] K.Oda, & T. Yoshio, Hydrothermal corrosion of alumina ceramics. J. Am. Ceram. Soc. 80, (1997)3233-3236.

DOI: 10.1111/j.1151-2916.1997.tb03258.x

[5] T.Hirata, T.Morimoto, S. Ohta & N.Uchida, Improvement of the corrosion resistance of alumina chromia ceramic materials in molten slag. J. Euro. Ceram. Soc. 23, (2003) 2089-2096.

DOI: 10.1016/s0955-2219(03)00023-2

[6] H.Sarpoolaky, S.Zhang, & W. E. Lee Corrosion of high alumina and near stoichiometric spinels in iron-containing silicate slags. J. Euro.Ceram. Soc. 23, (2003)293-300,.

DOI: 10.1016/s0955-2219(02)00170-x

[7] K.Natesan, Corrosion performance of alumina scales in coal gasification environments. Mater. at High Temp. 14, (1997)137-145.

DOI: 10.1080/09603409.1997.11689538

[8] G. Gunnarsson, B. Johannesson, Corrosion of Sodium beta '- Alumina Membranes in Molten Sodium Hydroxide. J. Am. Ceram. Soc. 94, (2011)988-990.

DOI: 10.1111/j.1551-2916.2011.04418.x

[9] T.Sato, S. Sato, A.Okuwaki & S. Tanaka, Corrosion behavior of alumina ceramics in caustic alkaline-solutions at high temperatures. J. Am. Ceram. Soc. 74, (1991)3081-3084.

DOI: 10.1111/j.1151-2916.1991.tb04304.x

[10] L.Ćurković, M. F.Jelača & S. Kurajica, Corrosion behavior of alumina ceramics in aqueous HCl and H2SO4 solutions. Corrosion Science 50, (2008)872-878.

DOI: 10.1016/j.corsci.2007.10.008
