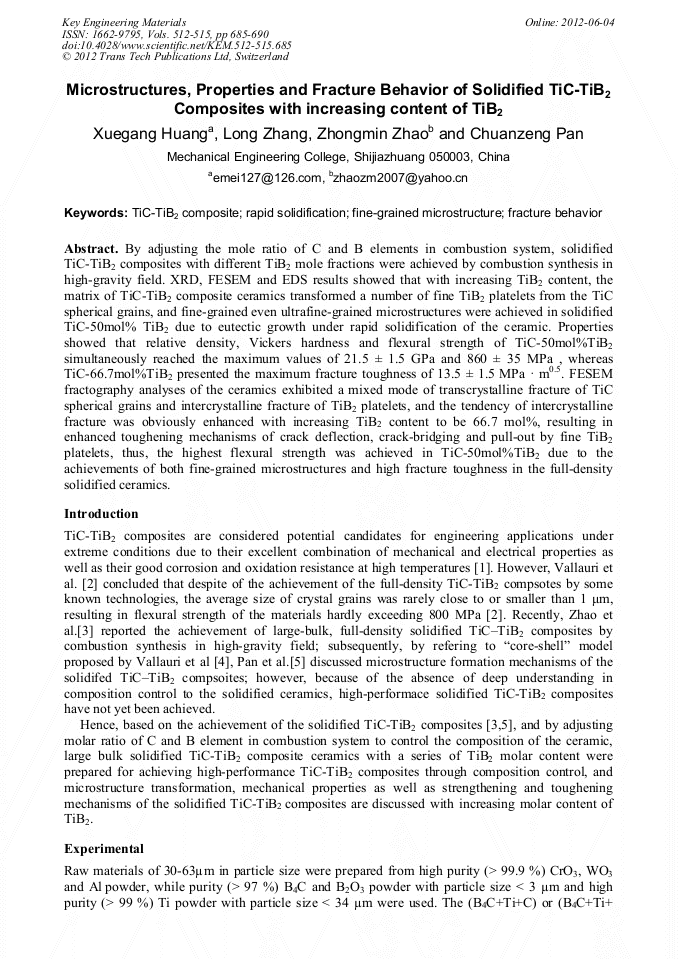

Microstructures, Properties and Fracture Behavior of Solidified TiC-TiB₂ Composites with Increasing Content of TiB₂

Abstract:

By adjusting the mole ratio of C and B elements in combustion system, solidified TiC-TiB₂ composites with different TiB₂ mole fraction were achieved by combustion synthesis in high-gravity field. XRD, FESEM and EDS results showed that with increasing TiB₂ content, the matrix of TiC-TiB₂ composite ceramics transformed a number of fine TiB₂ platelets from the TiC spherical grains, and fine-grained even ultrafine-grained microstructures were achieved in solidified TiC-50mol% TiB₂ due to eutectic growth under rapid solidification of the ceramic. Properties showed that relative density, Vickers hardness and flexural strength of TiC-50mol%TiB₂ simultaneously reached the maximum values of 21.5 ± 1.5 GPa and 860 ± 35 MPa , whereas TiC-66.7mol%TiB₂ presented the maximum fracture toughness of 13.5 ± 1.5 MPa • m^0.5. FESEM fractography analyses of the ceramics exhibited a mixed mode of transcrystalline fracture of TiC spherical grains and intercrystalline fracture of TiB₂ platelets, and the tendency of intercrystalline fracture was obviously enhanced with increasing TiB₂ content to be 66.7 mol%, resulting in enhanced toughening mechanisms of crack deflection, crack-bridging and pull-out by fine TiB₂ platelets, thus, the highest flexural strength was achieved in TiC-50mol%TiB₂ due to the achievements of both fine-grained microstructures and high fracture toughness in the full-density solidified ceramics.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 685-690
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.685
• Online since: June 2012
• Authors: Xue Gang Huang, Long Zhang, Zhong Min Zhao, Chuan Zeng Pan
• Keywords: Fine-Grained Microstructure, Fracture Behavior, Rapid Solidification, TiC-TiB₂ Composite

References

[1] H. Zhao, Y. Cheng, Formation of TiB2-TiC composites by reactive sintering, Ceram. Int. 25 (1999) 353-358.

DOI: 10.1016/s0272-8842(98)00048-0

[2] D. Vallauri, I.C. AtIas and A. Adrian, TiC-TiB2 composites: a review of phase relationships, processing and properties, J. Eur. Ceram. Soc. 28 (2008) 1697-1713.

DOI: 10.1016/j.jeurceramsoc.2007.11.011

[3] Z.M. Zhao, L. Zhang, Y.G. Song, Microstructures and properties of large bulk solidified TiC-TiB2 composites prepared by combustion synthesis under high gravity, Scripta Mater. 61 (2009) 281-284.

DOI: 10.1016/j.scriptamat.2009.04.002

[4] D. Vallauri, V.A. Shcherbakov, A.V. Khitev, Study of structure formation in TiC-TiB2-MexOy ceramics fabricated by SHS and densification, Acta Mater. 56 (2008) 1380-1389.

DOI: 10.1016/j.actamat.2007.11.022

[5] C.Z. Pan, L. Zhang, Z.M. Zhao, TiB2-TiC eutectic composite ceramics prepared by combustion synthesis under high gravity, Acta Materiae Compositae Sinica. 27 (2010) 109-117.

[6] T.H. Courtney, Mechanical Behavior of Materials, first ed., McGraw-Hill Companies, New York, 2000.

[7] J.H. Gong, Fracture Mechanics of Ceramics, first ed., Tsinghua University Press, Beijing, China, 2001.
