Electroformed Diamond Tool Adaptable to Nanometer Grinding of Cemented Carbide

Abstract:

An electroformed diamond tool with a tool tip radius of 0.2 mm was developed to achieve a surface roughness of less than 10 nm Rz on a mould made of cemented carbide. A polycrystalline diamond disc with a primary grain size of 0.5 µm and a diameter of 15 mm was used as a truer. A concentric guide groove with a reverse profile relative to the hemispherical tool and a surface roughness of 0.5 µm Rz was preformed on the truer by laser machining and wet lapping. It was verified through a truing test that 93 % of the diamond grains on the tool working surface could be flattened when the tool was placed in elastic contact with a guide groove with a depth of 50 µm. A grinding test revealed that the tool had the potential to efficiently fabricate a ground surface with a roughness of less than 10 nm Rz on cemented carbide with a hardness of 2600 Hv.

You might also be interested in these eBooks

Proceedings of Precision Engineering and Nanotechnology

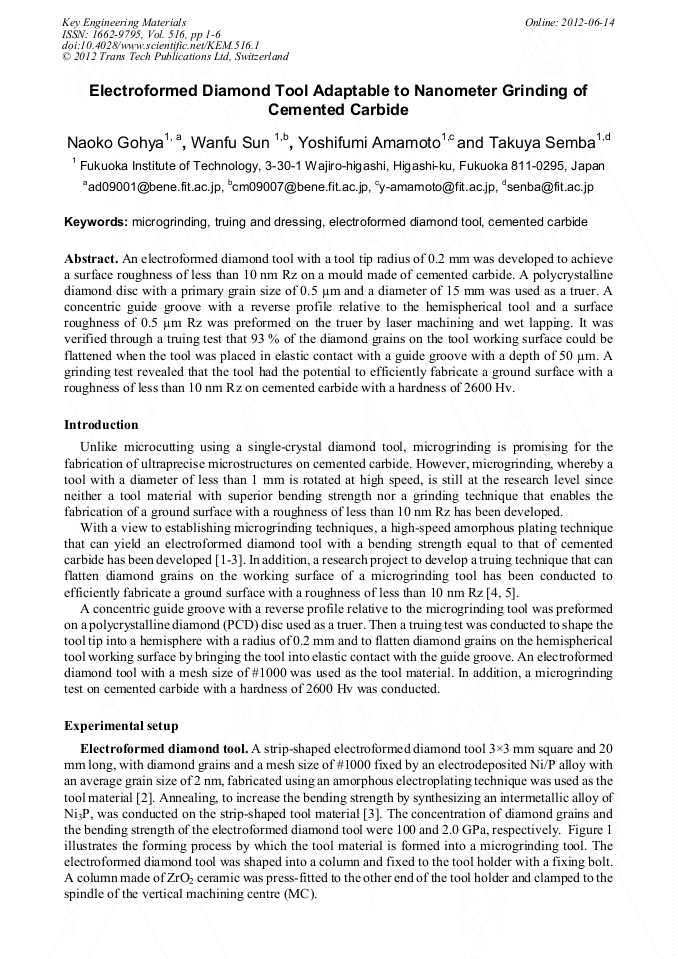

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 516)

Pages:

1-6

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.516.1

Citation:

Cite this paper

Online since:

June 2012

Authors:

Naoko Gohya, Wan Fu Sun, Yoshifumi Amamoto, Takuya Semba

Keywords:

Cemented Carbide, Dressing, Electroformed Diamond Tool, Microgrinding, Truing

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] T. Semba, N. Tomita, S. Fujii, Development of High-Speed Electroforming Technique, Transactions of the JSME, Ser. C 69-679 (2003) 217-223.

Google Scholar

[2] T. Semba, Y. Kasa, Development of High-Speed Ni/P Electroforming Technique for Fabricating Microgrinding Tool, Transactions of the JSME, Ser. C 70-694 (2004) 311-316.

Google Scholar

[3] T. Semba, M. Hamaguchi, T. Harada, Development of Electroformed Diamond Tool Strengthened by Synthesized Intermetallic Alloy, Transactions of the JSME, Ser. C 73-726 (2007) 264-269.

Google Scholar

[4] T. Harada, T. Semba, B. J. Stone, A Truing Technique for Flattening Diamond Grains on the Hemispherical Working Surface of an Electroformed Tool, Transactions of the JSME, Ser. C 74-738 (2008) 219-224.

DOI: 10.1299/kikaic.74.453

Google Scholar

[5] N. Gohya, W. Sun, T. Harada, T. Semba, Truing Technique for Flattening and Smoothing Fine Diamond Grains on Wheel Working Surface of Electroformed Diamond Tool, Transactions of the JSME, Ser. C 76-771 (2010) 380-387.

DOI: 10.1299/kikaic.76.3126

Google Scholar

[6] T. Yamaguchi, T. Semba, High-Speed Microfabrication Technique Using Focused Laser Beam, Transactions of the JSME, Ser. C 73-732 (2007) 220-226.

Google Scholar
