New Tool Concepts for Ultra-Precision Grinding

Abstract:

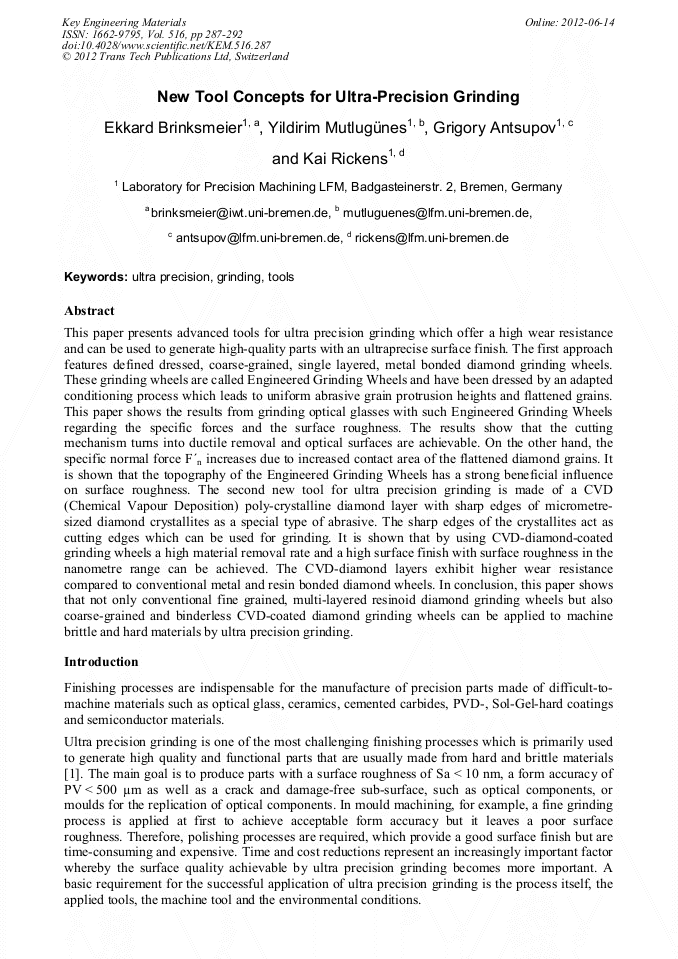

This paper presents advanced tools for ultra precision grinding which offer a high wear resistance and can be used to generate high-quality parts with an ultraprecise surface finish. The first approach features defined dressed, coarse-grained, single layered, metal bonded diamond grinding wheels. These grinding wheels are called Engineered Grinding Wheels and have been dressed by an adapted conditioning process which leads to uniform abrasive grain protrusion heights and flattened grains. This paper shows the results from grinding optical glasses with such Engineered Grinding Wheels regarding the specific forces and the surface roughness. The results show that the cutting mechanism turns into ductile removal and optical surfaces are achievable. On the other hand, the specific normal force F´_n increases due to increased contact area of the flattened diamond grains. It is shown that the topography of the Engineered Grinding Wheels has a strong beneficial influence on surface roughness. The second new tool for ultra precision grinding is made of a CVD (Chemical Vapour Deposition) poly-crystalline diamond layer with sharp edges of micrometre-sized diamond crystallites as a special type of abrasive. The sharp edges of the crystallites act as cutting edges which can be used for grinding. It is shown that by using CVD-diamond-coated grinding wheels a high material removal rate and a high surface finish with surface roughness in the nanometre range can be achieved. The CVD-diamond layers exhibit higher wear resistance compared to conventional metal and resin bonded diamond wheels. In conclusion, this paper shows that not only conventional fine grained, multi-layered resinoid diamond grinding wheels but also coarse-grained and binderless CVD-coated diamond grinding wheels can be applied to machine brittle and hard materials by ultra precision grinding.

• Periodical: Key Engineering Materials (Volume 516)
• Pages: 287-292
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.516.287
• Online since: June 2012
• Authors: Ekkard Brinksmeier, Yildirim Mutlugünes, Grigory Antsupov, Kai Rickens
• Keywords: Grinding, Tool, Ultra Precision
