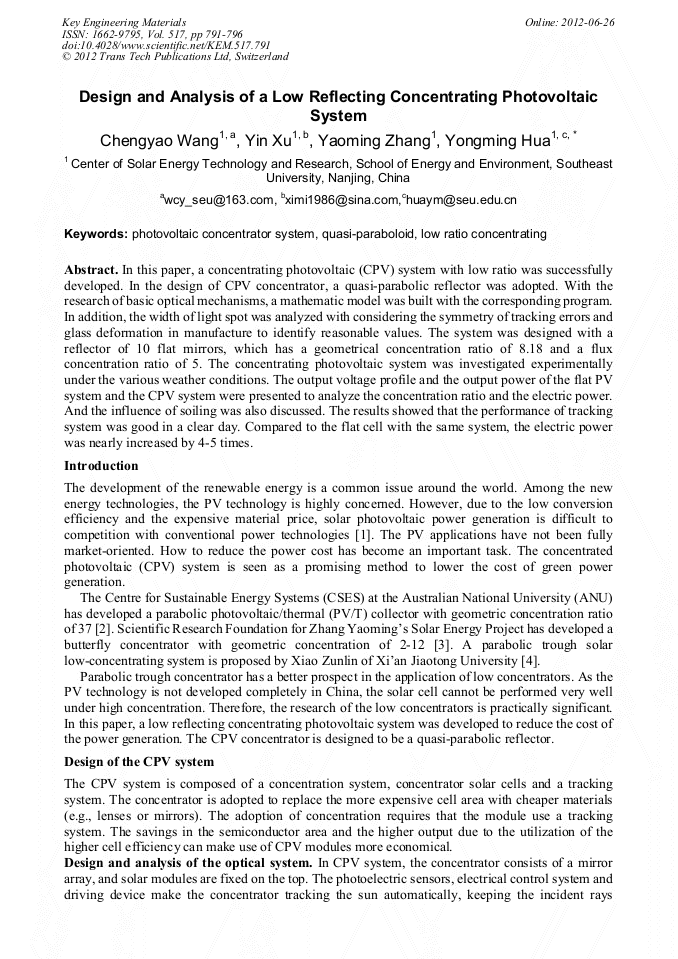

Design and Analysis of a Low Reflecting Concentrating Photovoltaic System

Abstract:

In this paper, a concentrating photovoltaic (CPV) system with low ratio was successfully developed. In the design of CPV concentrator, a quasi-parabolic reflector was adopted. With the research of basic optical mechanisms, a mathematic model was built with the corresponding program. In addition, the width of light spot was analyzed with considering the symmetry of tracking errors and glass deformation in manufacture to identify reasonable values. The system was designed with a reflector of 10 flat mirrors, which has a geometrical concentration ratio of 8.18 and a flux concentration ratio of 5. The concentrating photovoltaic system was investigated experimentally under the various weather conditions. The output voltage profile and the output power of the flat PV system and the CPV system were presented to analyze the concentration ratio and the electric power. And the influence of soiling was also discussed. The results showed that the performance of tracking system was good in a clear day. Compared to the flat cell with the same system, the electric power was nearly increased by 4-5 times.

You might also be interested in these eBooks

Novel and Non-Conventional Materials and Technologies for Sustainability

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 517)

Pages:

791-796

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.517.791

Citation:

Cite this paper

Online since:

June 2012

Authors:

Cheng Yao Wang, Yin Xu, Yao Ming Zhang, Yong Ming Hua

Keywords:

Low Ratio Concentrating, Photovoltaic Concentrator System, Quasi-Paraboloid

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Liu Hua, Lu Zhenwu, ZHU Rui, Zhang Hong-xin, Development and tendency of photovoltaic concentrator system, Chinese Journal of Optics and Applied Optics. 1(2008)49-56.

Google Scholar

[2] J. S. Coventry, Performance of a concentrating photovoltaic/thermal solar collector, Solar Energy. 78(2005)211-222.

DOI: 10.1016/j.solener.2004.03.014

Google Scholar

[3] Xu Zhilong, Lu Judong, Feng Peifeng, Hou Dapan, Zhang Jianyi, Zhang Yaoming, Research on a butterfly concentrator for photovoltaic generation, Acta Energiae Solaris Sinica. 28(2007)176-179.

Google Scholar

[4] Xiao Zunlin, Shi Yuchuan, Developments of parabolic trough solar concentrator, Renewable Energy Resources, 25(2007)10-12.

Google Scholar

[5] M. Vivar, R. Herrero, I. Anto´n, F. Martı´nez-Moreno, R. Moreto´n, G. Sala , A.W. Blakers, J. Smeltink, Effect of soiling in CPV system, Solar Energy, 84(2010) 1327-1335.

DOI: 10.1016/j.solener.2010.03.031

Google Scholar
