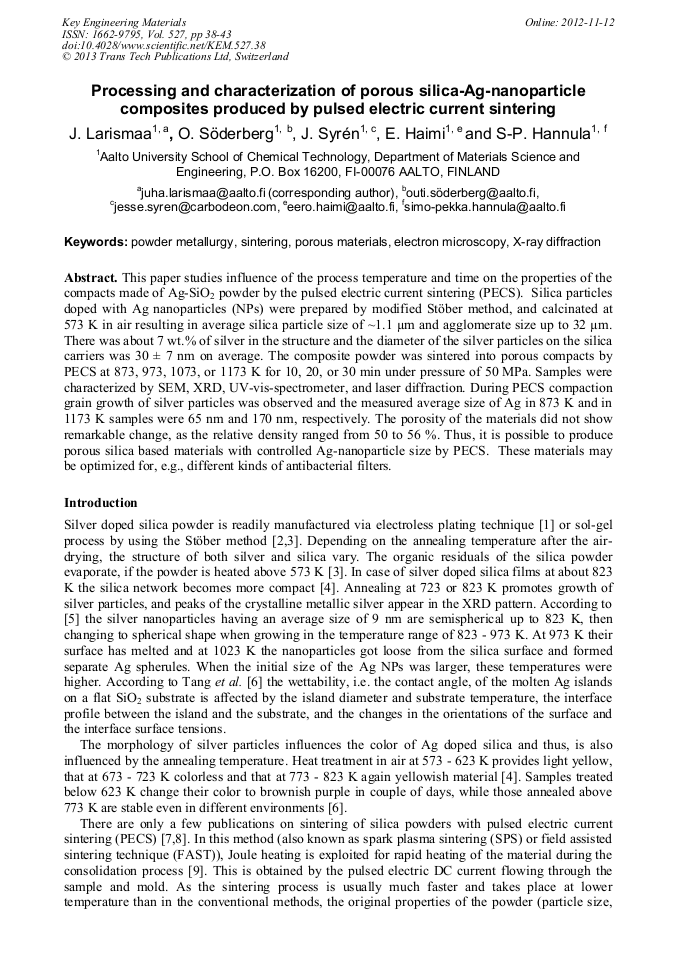

Processing and Characterization of Porous Silica-Ag-Nanoparticle Composites Produced by Pulsed Electric Current Sintering

Abstract:

This paper studies influence of the process temperature and time on the properties of the compacts made of Ag-SiO2 powder by the pulsed electric current sintering (PECS). Silica particles doped with Ag nanoparticles were prepared by modified Stöber method, and calcinated at 573 K in air resulting in average silica particle size of ~1.1 µm and agglomerate size up to 32 µm. There was about 7 wt.% of silver in the structure and the diameter of the silver particles on the silica carriers was 30 ±7 nm on average. The composite powder was sintered into porous compacts by PECS at 873, 973, 1073, or 1173 K for 10, 20, or 30 min under pressure of 50 MPa. Samples were characterized by SEM, XRD, UV-vis-spectrometer, and laser diffraction. During PECS compaction grain growth of silver particles was observed and the measured average size of Ag in 873 K and in 1173 K samples were 65 nm and 170 nm, respectively. The porosity of the materials did not show remarkable change, as the relative density ranged from 76 to 79 %. Thus, it is possible to produce porous silica based materials with controlled Ag-nanoparticle size by PECS. These materials may be optimized for, e.g., different kinds of antibacterial filters.

• Periodical: Key Engineering Materials (Volume 527)
• Pages: 38-43
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.527.38
• Online since: November 2012
• Authors: Juha Larismaa, Outi Söderberg, Jesse Syrén, Eero Haimi, Simo Pekka Hannula
• Keywords: Electron Microscopy, Porous Material, Powder metallurgy, Sintering, X-Ray Diffraction (XRD)

References

[1] G. Ling, J. He, L. Huang, Size control of silver nanoparticles deposited on silica dielectric spheres by electroless plating technique, J. Mater. Sci. 39 (2004) 2955-2957.

DOI: 10.1023/b:jmsc.0000021490.52788.62

[2] W. Stöber, A. Fink, E. Bohn, Controlled growth of monodisperse silica spheres in micron size range, J. Colloid Interface Sci. 26 (1968) 62-69.

DOI: 10.1016/0021-9797(68)90272-5

[3] J. Larismaa, T. Honkanen, Y. Ge, O. Söderberg, M. Friman, S-P. Hannula, Effect of annealing on Ag-doped submicron silica powder prepared with modified Stöber method, Mater. Sci. Forum 695 (2011) 449-452.

DOI: 10.4028/www.scientific.net/msf.695.449

[4] G. De, A. Licciulli, C. Massaro, L. Tapfer, M. Catalano, G. Battaglin, C. Meneghini, P. Mazzoldi, Silver nanocrystals in silica by sol-gel processing, J. Non-Cryst. Solids 194 (1996) 225-234.

DOI: 10.1016/0022-3093(91)00511-f

[5] S.C. Tang, S.P. Zhu, H.M. Lu, X.K. Meng, Shape evolution and thermal stability of Ag nanoparticles on spherical SiO2 substrates, J. Solid State Chem. 181 (2008) 587–592.

DOI: 10.1016/j.jssc.2008.01.014

[6] T. Ichinokawa, H. Itoh, Y. Sakai, Behaviors of small molten islands on several substrates, J. Anal. At. Spectrom. 14 (1999) 405–408.

DOI: 10.1039/a806746e

[7] T.G. Mayerhöfer, Z.J. Shen, E. Leonova, M. Edén, A. Kriltz, J. Popp, Consolidated silica glass from nanoparticles, J. Solid State Chem. 181 (2008) 2442– 2447.

DOI: 10.1016/j.jssc.2008.06.011

[8] P. Dibandjo, L. Bois, C. Estournes, B. Durand, P. Miele, Silica, carbon and boron nitride monoliths with hierarchial porosity prepared by spark plasma sintering process, Microporous Mesoporous Mater. 111 (2008) 643-648.

DOI: 10.1016/j.micromeso.2007.07.036

[9] R. Orrù, R. Licheri, A.M. Locci, A. Cincotti, G. Cao, Consolidation/synthesis of materials by electric current activated/assisted sintering, Mater. Sci. Eng., R 63 (2009) 127-287.

DOI: 10.1016/j.mser.2008.09.003

[10] R. Ritasalo, M.E. Cura, X.W. Liu, O. Söderberg, T. Ritvonen, S-P. Hannula, Spark plasma sintering of submicron-sized Cu-powder-influence of processing parameters and powder oxidation on microstructure and mechanical properties, Mat. Sci. Eng., A 527 (2010) 2733–2737.

DOI: 10.1016/j.msea.2010.01.008

[11] ASM Metals Handbook Volume 02 – Properties and Selection Nonferrous Alloys and Special Purpose Materials, ASM international, 1990, p.1328.

DOI: 10.31399/asm.hb.v02.9781627081627

[12] R.K. Iler, Chemistry of Silica: Solubility, Polymerization, Colloid and Surface Properties and Biochemistry, John Wiley & Sons, New York, 1979.

[13] Y. Plyuto, J.M. Berquier, C. Jacquiod, C. Ricolleau, Ag nanoparticles synthesized in template-structured mesoporous silica films on a glass substrate, Chem. Commun. 17 (1999) 1653-1654.

DOI: 10.1039/a904681j
