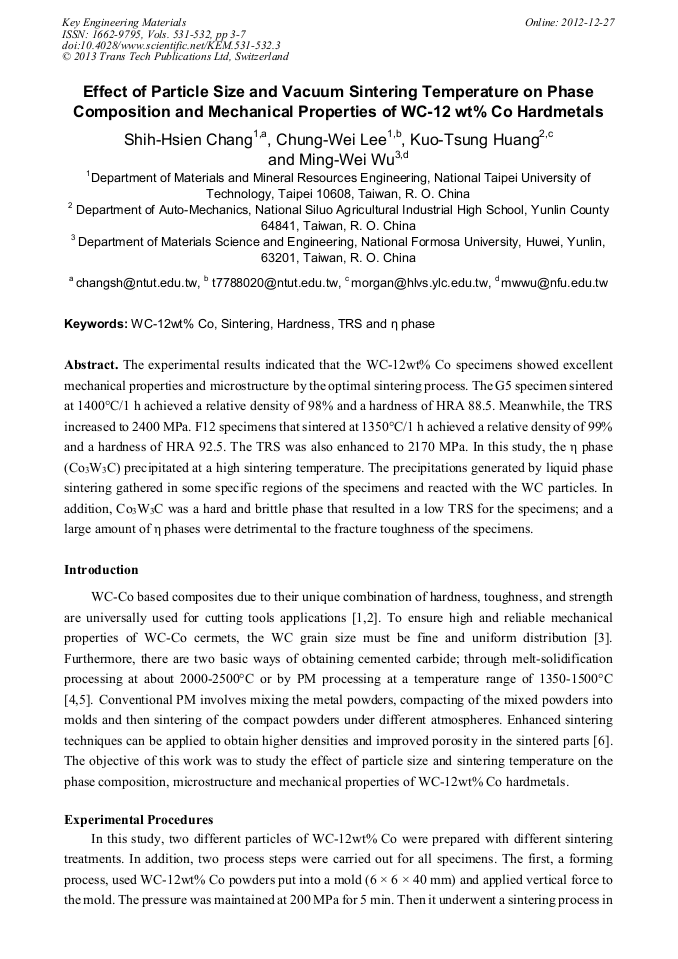

Effect of Particle Size and Vacuum Sintering Temperature on Phase Composition and Mechanical Properties of WC-12 wt% Co Hardmetals
The experimental results indicated that the WC-12wt% Co specimens showed excellent mechanical properties and microstructure by the optimal sintering process. The G5 specimen sintered at 1400°C/1 h achieved a relative density of 98% and a hardness of HRA 88.5. Meanwhile, the TRS increased to 2400 MPa. F12 specimens that sintered at 1350°C/1 h achieved a relative density of 99% and a hardness of HRA 92.5. The TRS was also enhanced to 2170 MPa. In this study, the η phase (Co3W3C) precipitated at a high sintering temperature. The precipitations generated by liquid phase sintering gathered in some specific regions of the specimens and reacted with the WC particles. In addition, Co3W3C was a hard and brittle phase that resulted in a low TRS for the specimens; and a large amount of η phases were detrimental to the fracture toughness of the specimens.
Chunliang Zhang and Liangchi Zhang
S. H. Chang et al., "Effect of Particle Size and Vacuum Sintering Temperature on Phase Composition and Mechanical Properties of WC-12 wt% Co Hardmetals", Key Engineering Materials, Vols. 531-532, pp. 3-7, 2013
