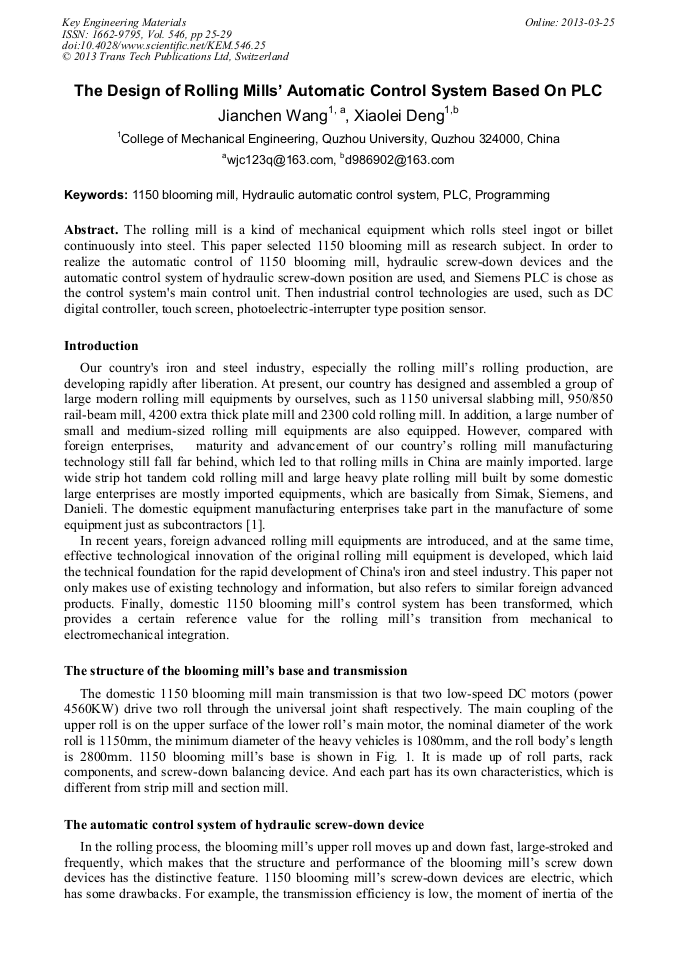

The Design of Rolling Mills’ Automatic Control System Based on PLC

Abstract:

The rolling mill is a kind of mechanical equipment which rolls steel ingot or billet continuously into steel. This paper selected 1150 blooming mill as research subject. In order to realize the automatic control of 1150 blooming mill, hydraulic screw-down devices and the automatic control system of hydraulic screw-down position are used, and Siemens PLC is chose as the control system's main control unit. Then industrial control technologies are used, such as DC digital controller, touch screen, photoelectric-interrupter type position sensor.
