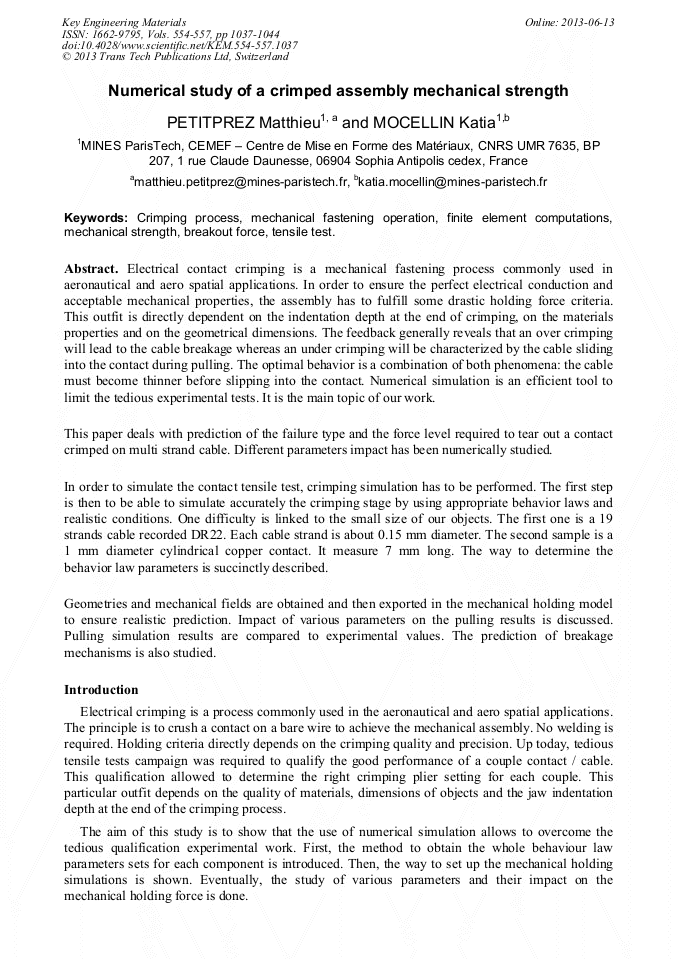

Numerical Study of a Crimped Assembly Mechanical Strength

Abstract:

Electrical contact crimping is a mechanical fastening process commonly used in aeronautical and aero spatial applications. In order to ensure the perfect electrical conduction and acceptable mechanical properties, the assembly have to fullfil some drastic holding force criteria. This outfit is directly dependent on the indentation depth at the end of crimping. The feedback generally reveals that an over crimping will lead to the cable breakage whereas an under crimping will be characterized by the cable sliding into the contact during pulling. The optimal behavior is a combinaison of both phenomena : the cable must become thinner before slipping into the contact. Numerical simulation is an efficient tool to limit the tedious experimental tests. It is the main topic of our work. This paper deals with prediction of the failure type and the force level required to tear out a contact crimped on multistrand cable for different indentation depths. The determination of optimal crimping condition is determined. In order to simulate the contact tensile test, crimping simulation has to be performed. The first step is then to be able to simulate accurately the crimping stage by using appropriate behavior laws and realistic conditions. One difficulty is linked to the small size of our objects. The first one is a 19 strands cable, in which each strand is about 0.15 mm diameter. The second sample is a 1 mm diameter cylindrical copper contact measuring 7 mm long. Adapted testing devices are described. Geometries and mechanical fields are obtained and then exported in the mechanical holding model to ensure realistic prediction [1]. Impact of crimping conditions on the pulling results is discussed. Pulling simulation results are compared to experimental values. The prediction of breakage mechanisms is also studied. Keywords: Crimping process, mechanical fastening operation, finite element computations, mechanical strength, breakout force, tensile test. [1] Fayolle, S., 2008, Etude de la modélisation de la pose et de la tenue mécanique des assemblages par déformation plastique : application au rivetage auto poinçonneur, Thèse de l'Ecole des Mines de Paris.

• Periodical: Key Engineering Materials (Volumes 554-557)
• Pages: 1037-1044
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.554-557.1037
• Online since: June 2013
• Authors: Matthieu Petitprez, Katia Mocellin
• Keywords: Breakout Force, Crimping Process, Finite Element Computation, Mechanical Fastening Operation, Mechanical Strength, Tensile Test

References

[1] Chenot, J.L., 1989, Three dimensional finite element modeling of forging process, Computational Plasticity, 793-816.

[2] Fayolle, S., Bouchard, P.O., Mocellin, K., 2007, Joining and Mechanical Strength of self-piercing riveted structure – numerical modelling and experimental validation, Proc. International Conf. on Experimental Mechanics - Experimental Analysis of Nano and Engineering Materials and Structures, Alexandroupolis, Greece.

DOI: 10.1007/978-1-4020-6239-1_404

[3] Coupez, T., Digonnet, H., Ducloux, R., 2000, Parallel meshing and remeshing, Applied Mathematical Model; 25(2): 153-175.

DOI: 10.1016/s0307-904x(00)00045-7

[4] Digonnet, H., Coupez, T., 2003, Object-oriented programming for fast and easy development of parallel applications. Forming processes, MIT Conf. on computation fluid and solid mechanics, Pineridge press 1922-1924.

DOI: 10.1016/b978-008044046-0.50471-1

[5] Mocellin, K., Pichelin, E., Chenot, J.L., An application of a master-slave algorithm for solving 3D contact problems between deformable bodies in forming processes, European Journal of Computational Mechanics, vol 10 n°8, 857-880,2001.

DOI: 10.1080/12506559.2001.9737573

[6] Mocellin, K., Petitprez, M., Bouchard, P.O., Desjean, C., 2010, Computational modeling of electrical contact crimping and mechanical strength analysis, 25th ICEC and 56th IEEE Holm Conf., Charleston, 39-41.

DOI: 10.1109/holm.2010.5619564

[7] Petitprez, M., Mocellin, K., 2013, Non standard samples behaviour law parameters determination by inverse analysis, 20th KomPlasTech Conference, Zakopane, Poland.

[8] Zambelli, G., Vincent, L., 1998, Matériaux et Contact: une approche tribologique, Presse Polytechnique et Universitaires Romandes, 19-20.

[9] Bowden, F.P., Tabor, D., 1964, The friction and lubrication of solids, Part 2, International series of monographs on physics, Oxford University Press, 43.
