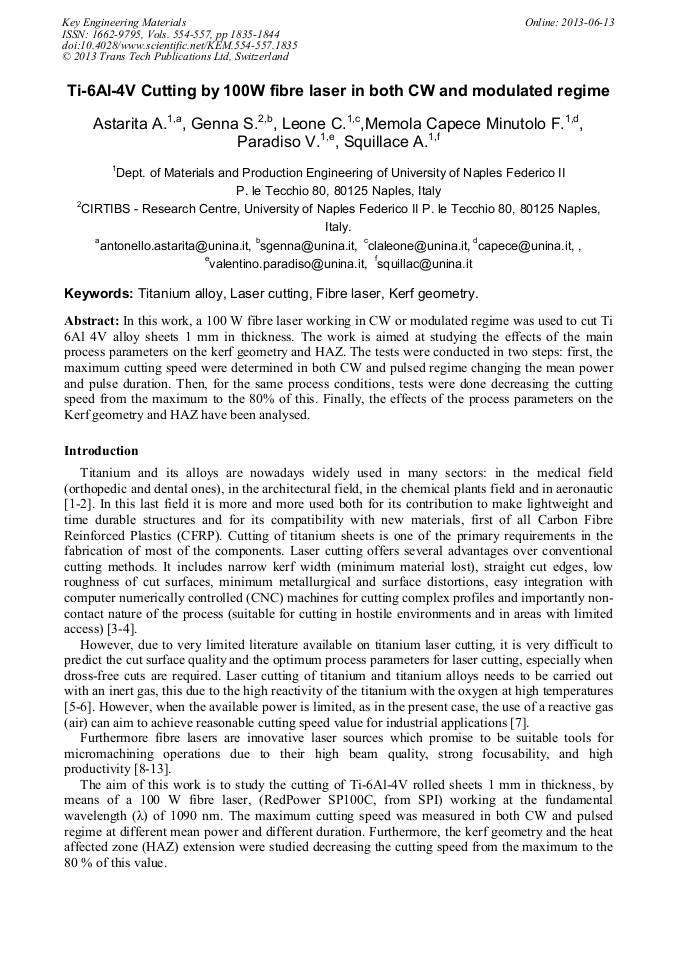

Ti-6Al-4V Cutting by 100W Fibre Laser in Both CW and Modulated Regime

Abstract:

Titanium and its alloys are nowadays widely used in many sectors: in the medical field (orthopedic and dental ones), in the architectural field, in the chemical plants field and in aeronautic [1]. In this last field it is more and more used both for its contribution to make lightweight and time durable structures and for its compatibility with new materials, first of all Carbon Fiber Reinforced Plastics (CFRP). Cutting of titanium sheets is one of the primary requirements in the fabrication of most of the components. Laser cutting offers several advantages over conventional cutting methods. It includes narrow kerf width (minimum material lost), straight cut edges, low roughness of cut surfaces, minimum metallurgical and surface distortions, easy integration with computer numerically controlled (CNC) machines for cutting complex profiles and importantly non-contact nature of the process (suitable for cutting in hostile environments and in areas with limited access) [2]. However, due to very limited literature available on laser cutting of titanium, it is very difficult to predict the cut surface quality and optimum process parameters for laser cutting, especially when dross-free cuts are required. Laser cutting of titanium and titanium alloys needs to be carried out with an inert gas, this due to the high reactivity of the titanium with the oxygen at high temperatures [3]. However when the available power is limited, as in the present case, the use of a reactive gas (air) can help to achieve cutting speed value reasonable for industrial applications. The aim of this work is to study the cutting of Ti-6Al-4V rolled sheets 1 mm in thickness, by means of a 100 W fibre laser, (SPI-Red Power) working at wavelength  = 1090 nm. The maximum cutting speed were measured in both CW and pulsed regime at different mean power and different duration. Furthermore, the kerf geometry and the heat affected zone (HAZ) were studied decreasing the cutting speed from the maximum to the 80 % of this values. The results obtained showed that both the power and the cutting speed influence the cutting kerf geometry and HAZ. In particular the synergy of power and speed, resulting roughly into the heat input, seems to rule the whole cutting process.

• Periodical: Key Engineering Materials (Volumes 554-557)
• Pages: 1835-1844
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.554-557.1835
• Online since: June 2013
• Authors: Antonello Astarita, Silvio Genna, C. Leone, Fabrizio Memola Capece Minutolo, Valentino Paradiso, Antonino Squillace
• Keywords: Fibre Laser, Kerf Geometry, Laser Cutting, Titanium Alloy

References

[1] A. Squillace, U. Prisco, S. Ciliberto, A. Astarita - Effect of welding parameters on morphology and mechanical properties of Ti–6Al–4V laser beam welded butt joints Journal of Materials Processing Technology 212 (2012) 427– 436

DOI: 10.1016/j.jmatprotec.2011.10.005

[2] Joseph R. Davis ASM Metals Handbook. Machining, vol. 16., ninth ed ASM Int. Pub., p.579–587 (1989), ISBN: 0871700220.

[3] A. Astarita, A. Squillace, A. Scala, A. Prisco. On the critical technological issues of friction stir welding T-joints of dissimilar aluminum alloys. Journal of Materials Engineering and Performance Volume 21, Issue 8, August 2012, Pages 1763-1771

DOI: 10.1007/s11665-011-0073-3

[4] C. Leone; S. Genna; G. Caprino, I. De Iorio, AISI 304 stainless steel marking by a Q-switched diode pumped Nd:YAG laser, Journal of Materials Processing Technology, V. 210/10(2010), p.1297–1303, ISSN: 0924-0136.

DOI: 10.1016/j.optlaseng.2008.06.019

[5] A. Astarita, A. Squillace, E. Armentani, S. Ciliberto Friction stir welding of AA 2198 T3 rolled sheets in butt configuration. Metallurgia Italiana Volume 104, Issue 7-8, 2012, Pages 31-40

[6] C. Leone, A. Pagano, V. Lopresto, I. De Iorio, Solid state Nd:YAG laser cutting of CFRP sheet: influence of process parameters on kerf geometry and HAZ, Proc of 17th International Conference on Composite Materials - ICCM-17, July 27-31, 2009, Edinburgh UK,.

[7] C. Leone, R. E. Morace, I. De Iorio, AISI 304 Stainless Steel Engraving by Q-Switched Nd:YAG Nanosecond Laser, Journal of the Chinese Society of Mechanical Engineers, V. 28/2 (2007), pp.217-224, ISSN 0257-9731.

[8] S. Genna, C. Leone, V. Lopresto, L. Santo, F. Trovalusci, Study of fibre laser machining of C45 steel: influence of process parameters on material removal rate and roughness, International Journal of Material Forming, V. 3, S.1 (2010), pp.1115-1118. ISSN 1960-6206 (Print) 1960-6214 (Online).

DOI: 10.1007/s12289-010-0967-x

[9] B. Tirumala Rao, Rakesh Kaul, Pragya Tiwari, A.K. Nath, Inert gas cutting of titanium sheet with pulsed mode CO2 laser, Optics and Lasers in Engineering Volume 43, Issue 12, December 2005, Pages 1330–1348

DOI: 10.1016/j.optlaseng.2004.12.009

[10] G. Casalino, F. Curcio, F.M.C. Minutolo, Investigation on Ti6Al4V laser welding using statistical and Taguchi approaches, Journal of Materials Processing Technology Volume 167, Issue 2-3, 30 August 2005, Pages 422-428.

DOI: 10.1016/j.jmatprotec.2005.05.031

[11] F. Caiazzo, F. Curcio, G. Daurelio, F.M.C. Minutolo, Laser cutting of different polymeric plastics (PE, PP and PC) by a CO 2 laser beam, Journal of Materials Processing Technology Volume 159, Issue 3, 10 February 2005, Pages 279-285.

DOI: 10.1016/j.jmatprotec.2004.02.019

[12] Arun Kumar Pandey, Avanish Kumar Dubey, Simultaneous optimization of multiple quality characteristics in laser cutting of titanium alloy sheet, Optics & Laser Technology Volume 44, Issue 6, September 2012, Pages 1858–1865.

DOI: 10.1016/j.optlastec.2012.01.019

[13] Lv. Shanjin, Wang Yang, An investigation of pulsed laser cutting of titanium alloy sheet, Optics and Lasers in Engineering Volume 44, Issue 10, October 2006, Pages 1067–1077.

DOI: 10.1016/j.optlaseng.2005.09.003
