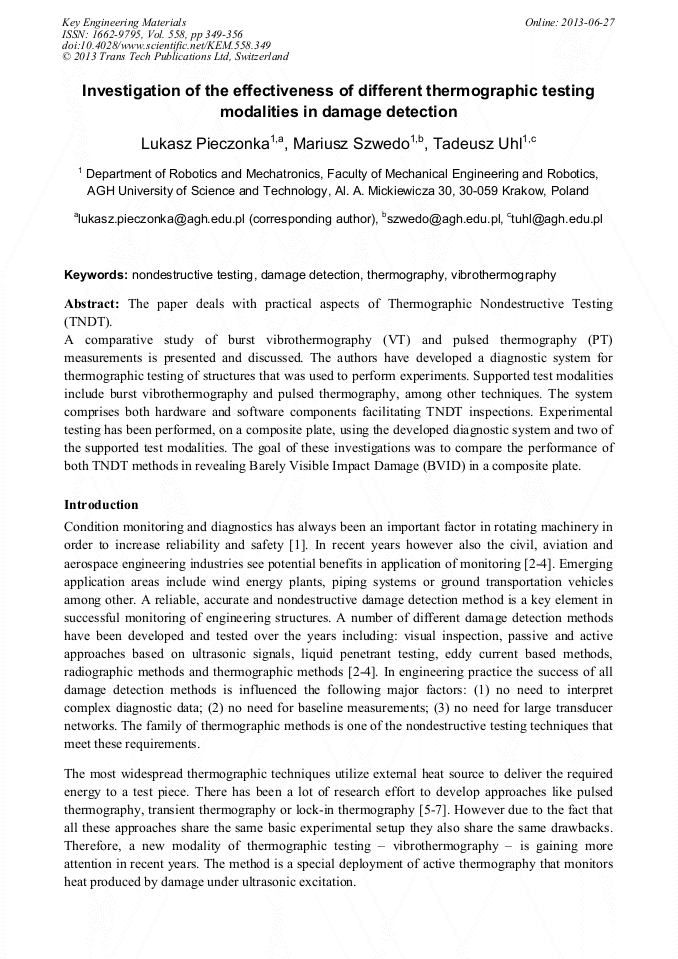

Investigation of the Effectiveness of Different Thermographic Testing Modalities in Damage Detection

Abstract:

The paper deals with practical aspects of Thermographic Nondestructive Testing (TNDT). A comparative study of burst vibrothermography (VT) and pulsed thermography (PT) measurements is presented and discussed. The authors have developed a diagnostic system for thermographic testing of structures that was used to perform experiments. Supported test modalities include burst vibrothermography and pulsed thermography, among other techniques. The system comprises both hardware and software components facilitating TNDT inspections. Experimental testing has been performed, on a composite plate, using the developed diagnostic system and two of the supported test modalities. The goal of these investigations was to compare the performance of both TNDT methods in revealing Barely Visible Impact Damage (BVID) in a composite plate.

• Periodical: Key Engineering Materials (Volume 558)
• Pages: 349-356
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.558.349
• Online since: June 2013
• Authors: Łukasz Pieczonka, Mariusz Szwedo, Tadeusz Uhl
• Keywords: Damage Detection, Nondestructive Testing (NDT), Thermography, Vibrothermography

References

[1] R.B. Randall, Vibration-based Condition Monitoring: Industrial, Aerospace and Automotive Applications. John Wiley & Sons, 2011.

[2] W.J. Staszewski, C. Boller, G.R. Tomlinson (Eds.)., Health Monitoring of Aerospace Structures. John Wiley & Sons, 2003.

[3] D.J. Inman, C.R. Farrar, V. Lopes Jr., V. Steffen Jr. (Eds.)., Damage Prognosis for Aerospace, Civil and Mechanical Systems, John Wiley & Sons, 2005.

DOI: 10.1002/0470869097

[4] J.E. Masters (Ed.)., Damage Detection in Composite Materials. Philadelphia: ASTM STP 1128 American Society for Testing and Materials, 1992.

[5] X.P.V. Maldague , Theory and practice of infrared technology for nondestructive testing, John Wiley & Sons, 2001.

[6] O. Breitenstein, W. Warta, M. Langenkamp, Lock-in Thermography, Springer Series in Advanced Microelectronics, Springer , 2010.

DOI: 10.1007/978-3-642-02417-7_6

[7] Shepard S., 2007, Back to Basics: Thermography of Composites. ASNT Materials Evaluation, Vol.65(7), pp.690-696.

[8] C. Homma, M. J. Rothenfusser, J. Baumann, R. Shannon, Study of the heat generation mechanism in acoustic thermography, Review of Quantitative Nondestructive Evaluation, vol. 25, p.566–574, 2006.

[9] J. Renshaw, J. C. Chen, S. D. Holland, and R. B. Thompson, The sources of heat generation in vibrothermography, NDT & E International, 2011.

[10] X. Han, L. D. Favro, Z. Ouyang, and R. L. Thomas, Recent developments in thermosonic crack detection, Review of Progress in Quantitative Nondestructive Evaluation, vol. 21, p.552–557, 2002.

[11] R. L. Thomas, X. Han, L. D. Favro, and G. Newaz, Infrared Imaging of Defects in Materials with Chaotic Sonic Excitation, Ultrasonics, p.591–594, 2010.

DOI: 10.1109/ultsym.2010.5935448

[12] G. Bolu, a Gachagan, G. Pierce, and G. Harvey, Reliable thermosonic inspection of aero engine turbine blades, Insight - Non-Destructive Testing and Condition Monitoring, vol. 52, no. 9, 2010.

DOI: 10.1784/insi.2010.52.9.488

[13] L. Pieczonka, F. Aymerich, G. Brozek, M. Szwedo, W.J. Staszewski, T. Uhl, Modelling and numerical simulations of vibrothermography for impact damage detection in composites structures. Struct. Control Health Monit., 2012.

DOI: 10.1002/stc.1483

[14] X. Han, L. D. Favro, and R. L. Thomas, Sonic IR Imaging of delaminations and disbonds in composites, Journal of Physics D: Applied Physics, vol. 44, no. 3, p.034013, Jan. 2011.

DOI: 10.1088/0022-3727/44/3/034013

[15] S. Zhao, C. Zhang, Y. Li, and Y. Duan, Finite Element simulation and Experimental verification of Infrared Thermal Wave Non-destructive Inspection for the Defects in Welded Joint, 17th World Conference on Nondestructive Testing, 2008.

[16] MONIT SHM LLC., http://www.monitshm.pl/, 2012.
